Viking H|Class 500E - Machine Overview and Components; Machine Parts and Accessories

~ 2 ~

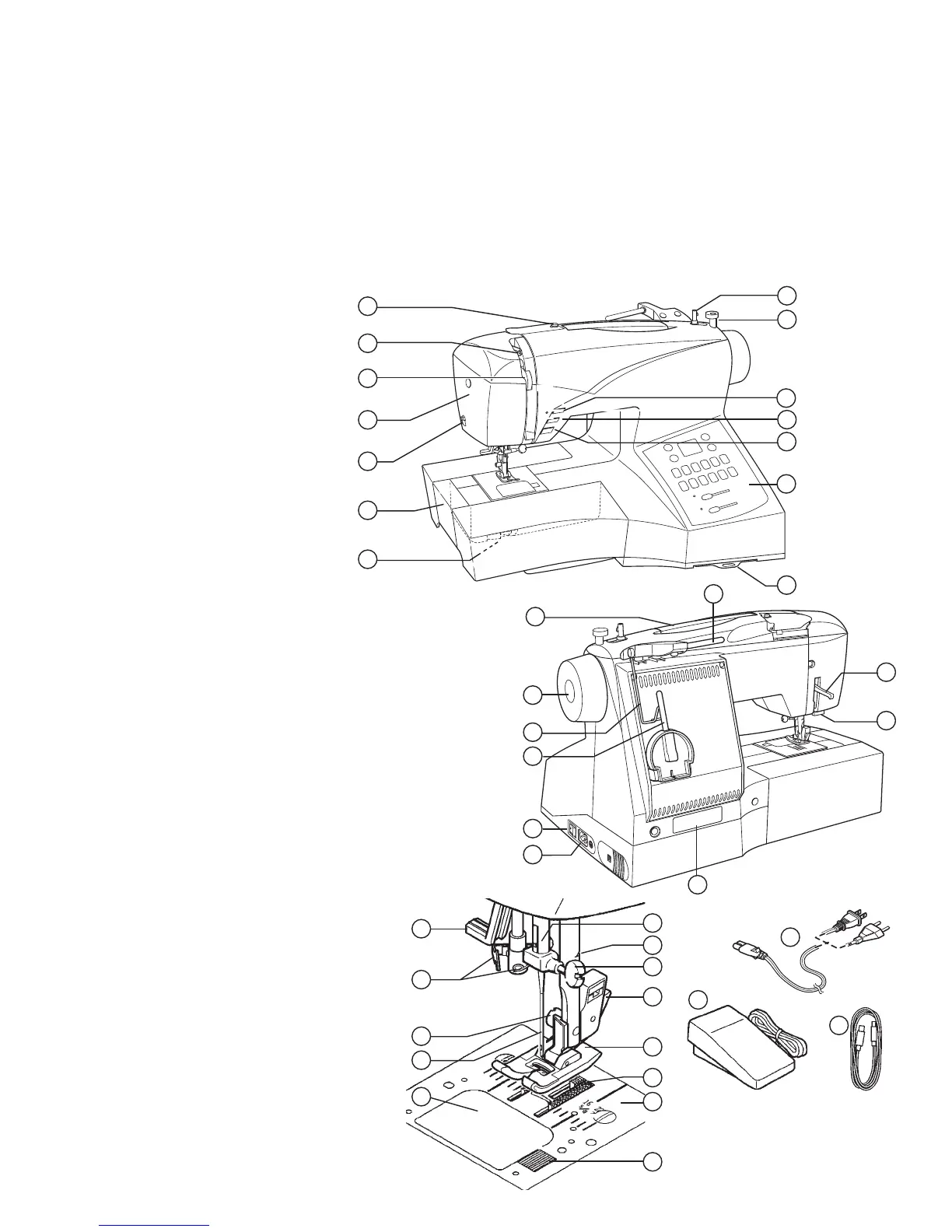

1. Thread guide
2. Thread take-up lever
3. Thread tension dial
4. Sewing head cover
5. Thread cutter
6. Accessory box (Extension table)
7. Feed teeth lever
8. Bobbin winder
9. Bobbin winding stop
10. Needle stop up/down
11. Reverse Stitch button
12. Start/Stop button (only when
embroidering)
13. Control Panel
14. Stitch reference guide
15. Horizontal spool pin
16. Handle
17. Hand wheel
18. Thread guide
19. Vertical spool pin
20. Power/light switch
21. Cord socket
22. IdentiÀ cation plate
23. Presser foot lifter
24. Buttonhole lever
25. Needle threader
26. Thread guide
27. Presser foot screw
28. Needle
29. Bobbin cover plate
30. Needle bar
31. Thread cutter
32. Needle clamp screw
33. Presser foot release button
34. Presser foot
35. Feed teeth
36. Stitch plate
37. Bobbin cover release button
38. Power cord
39. Foot control
40. USB cable
Note: Be sure to use the USB cable included with
your machine when doing embroidery.
MACHINE OVERVIEW
1
Get to Know Your Machine
8
1
2
3
4
5
6
7
9
11
14
13
16
17
18
19
20
21
22
15
24
23
30
32
33
37
25
27
28
29
35
26
31
34
36
38
39
40
10
12
