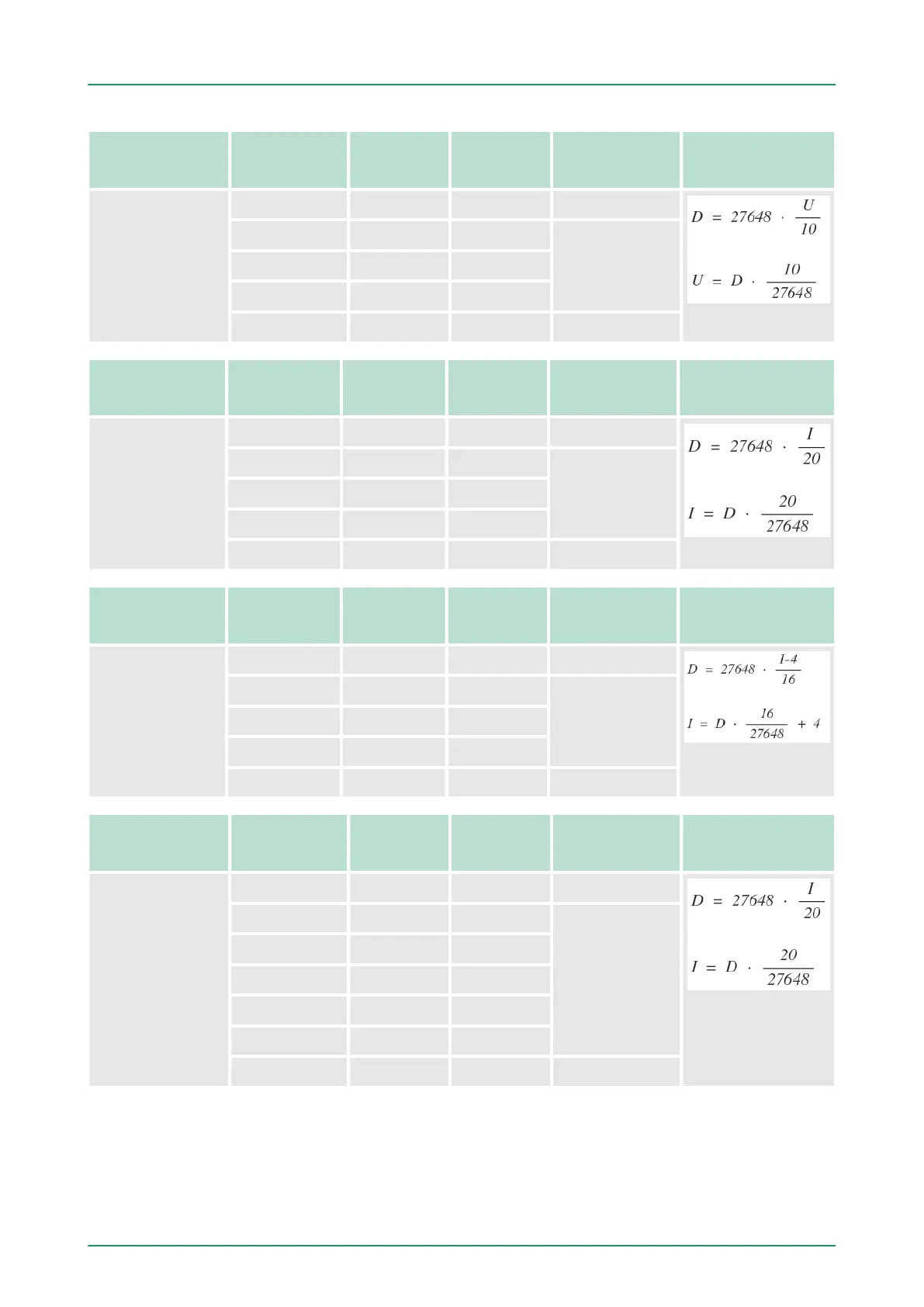

Measuring
range
Voltage
(U)
Decimal
(D)
Hex Range Conversion
0 ... 10V 11.76V 32511 7EFFh overrange
10V 27648 6C00h nominal range
5V 13824 3600h
0V 0 0000h
-1.76V -4864 ED00h underrange
Measuring
range
Current
(I)
Decimal
(D)
Hex Range Conversion
0 ... 20mA 23.52mA 32511 7EFFh overrange
20mA 27648 6C00h nominal range
10mA 13824 3600h
0mA 0 0000h
-3.52 -4864 ED00h underrange
Measuring
range
Current
(I)
Decimal
(D)
Hex Range Conversion
4 ... 20mA 22.81mA 32511 7EFFh overrange
20mA 27648 6C00h nominal range
12mA 13824 3600h
4mA 0 0000h
1.19mA -4864 ED00h underrange
Measuring
range
Current
(I)
Decimal
(D)
Hex Range Conversion
±20mA 23.52mA 32511 7EFFh overrange
20mA 27648 6C00h nominal range
10mA 13824 3600h
0mA 0 0000h
-10mA -13824 CA00h
-20mA -27648 9400h
-23.52mA -32512 8100h underrange
VIPA System 300S Deployment I/O periphery
Analog part
HB140 | CPU | 314-6CF03 | GB | 16-43 137
