VIPA CPU 314ST - Hardware configuration - I;O modules

To be compatible with the Siemens SIMATIC Manager the following
steps should be executed:
1. Start the Siemens hardware configurator with a new project.
2. Insert a profile rail from the hardware catalog.
3. Place at ‘Slot’ -Number 2 the CPU 317-2DP (6ES7
317-2AJ10-0AB0/V2.6).
4. The integrated PROFIBUS DP master (X3) is to be configured
and connected via the sub module X2 (DP).
5.5
Hardware configuration - I/O modules

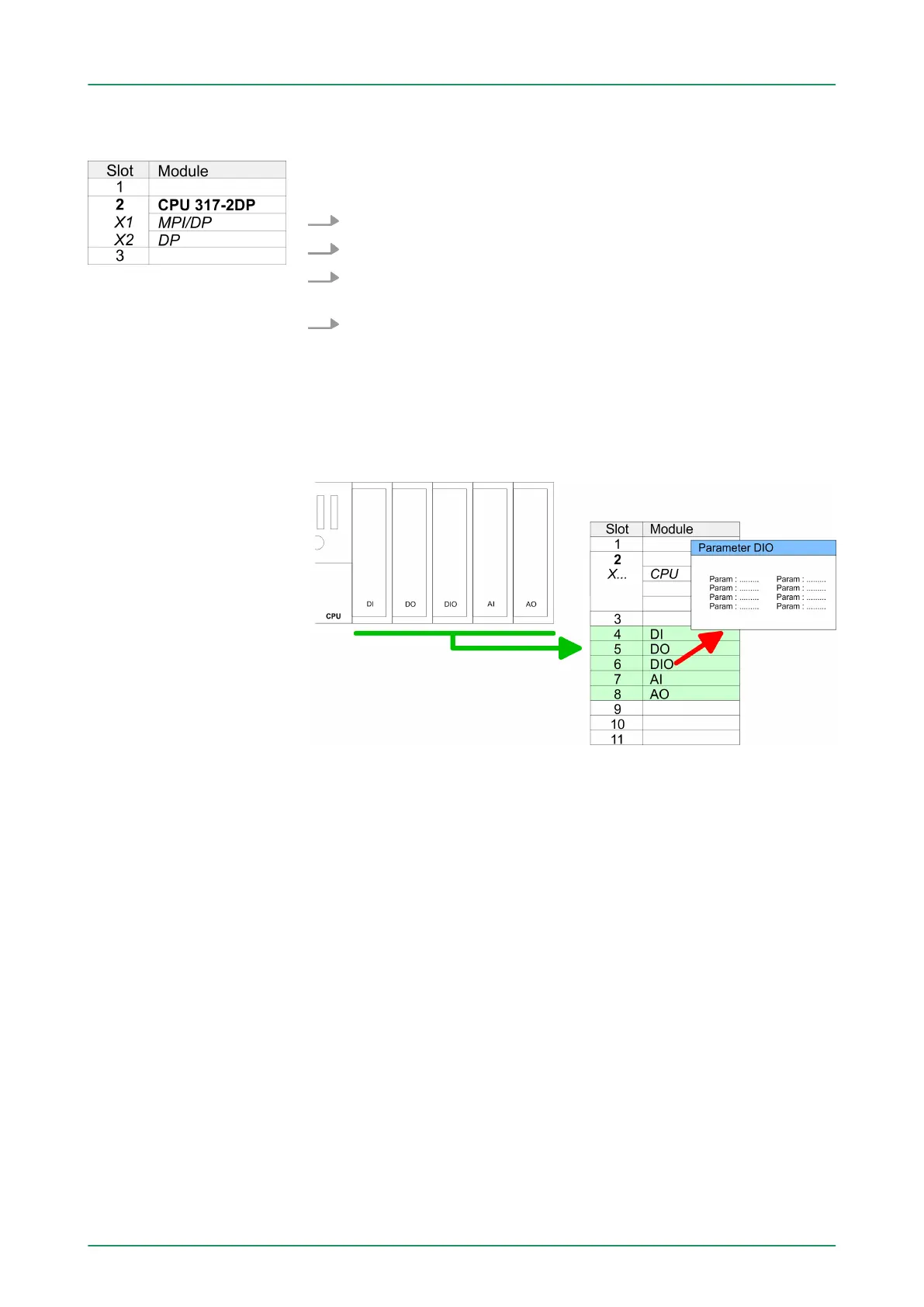

After the hardware configuration place the System 300 modules in the
plugged sequence starting with slot 4.
For parametrization double-click during the project engineering at the
slot overview on the module you want to parameterize. In the
appearing dialog window you may set the wanted parameters. By
using the SFCs 55, 56 and 57 you may alter and transfer parameters
for wanted modules during runtime. For this you have to store the
module specific parameters in so called "record sets". More detailed
information about the structure of the record sets is to find in the
according module description.
For the project engineering of more than 8 modules you may use line
interface connections. For this you set in the hardware configurator
the module IM 360 from the hardware catalog to slot 3 of your 1. pro-
file rail. Now you may extend your system with up to 3 profile rails by
starting each with an IM 361 from Siemens at slot 3. Considering the
max. total current with the VIP
A SPEED7 CPUs up to 32 modules
may be arranged in a row. Here the installation of the line connections
IM 360/361 from Siemens is not required.
Proceeding
Hardware configuration
of the modules
Parametrization
Bus extension with IM
360 and IM 361
