VIPA CPU 314ST - TIA Portal - Hardware configuration - I;O modules

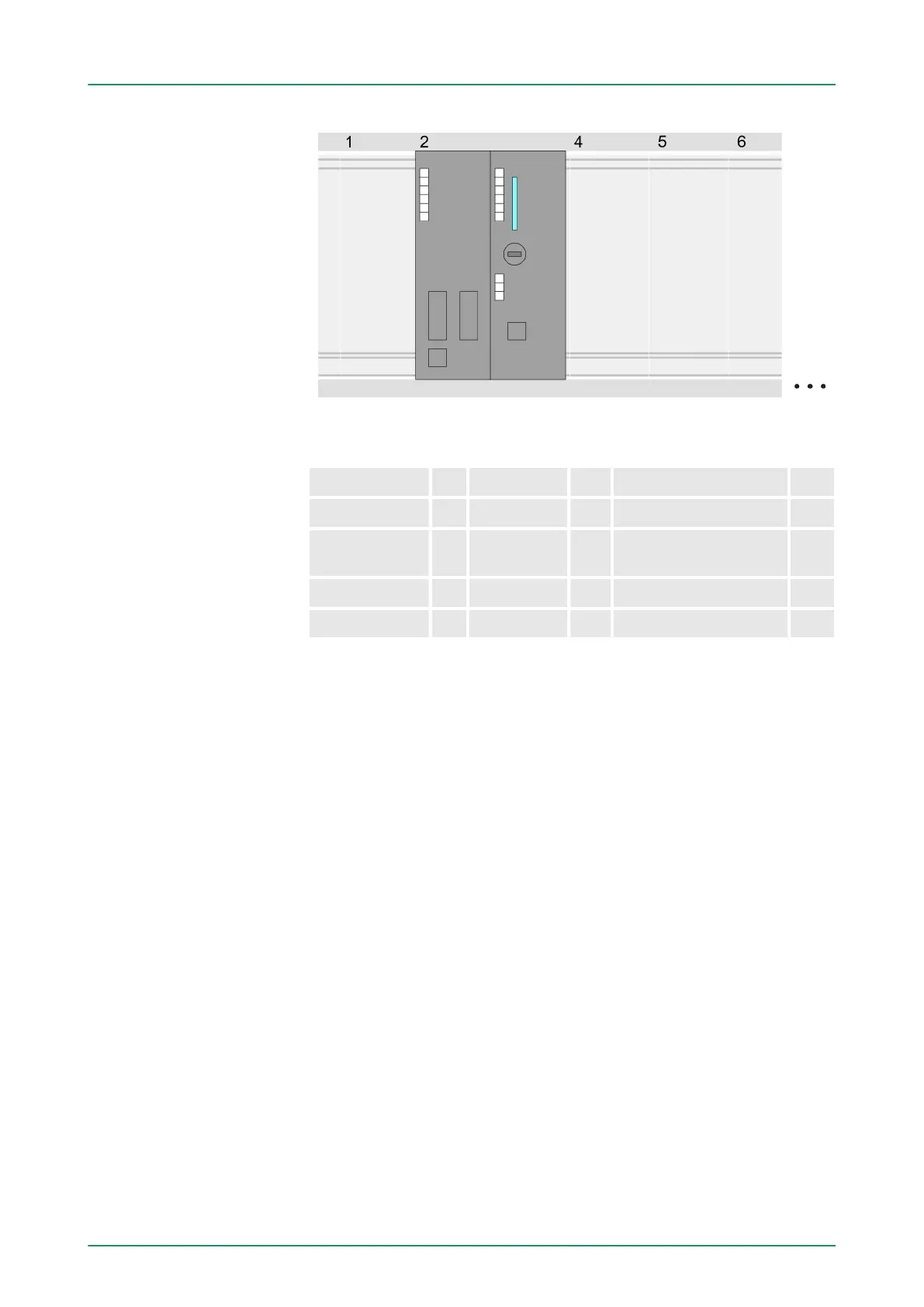

Device overview:
Module ... Slot ... Type ...
PLC ... 2 CPU 317-2DP
MPI/DP inter-
face
2 X1 MPI/DP interface
DP interface 2 X2 DP interface
... ... ...
Since the CPU from VIPA is configured as Siemens CPU, so the set-
ting of the parameters takes place via the Siemens CPU. For para-
metrization click in the Project arearespectively in the Device over
-
view at the CPU part. Then the parameters of the CPU part are
shown in the Properties dialog. Here you can make your parameter
settings.
Ä further information on page 65
10.3 TIA Portal - Hardware configuration - I/O modules
After the hardware configuration of the CPU place the System 300
modules at the bus in the plugged sequence. For this drag&drop the
according module from the Hardware catalog to the according posi-
tion of the profile rail in the Project area or in the Device overview
Setting standard CPU
parameters
Hardware configuration
of the modules
VIPA System 300SConfiguration with TIA Portal
TIA Portal - Hardware configuration - I/O modules
HB140 | CPU | 314-6CF03 | GB | 16-43 218
