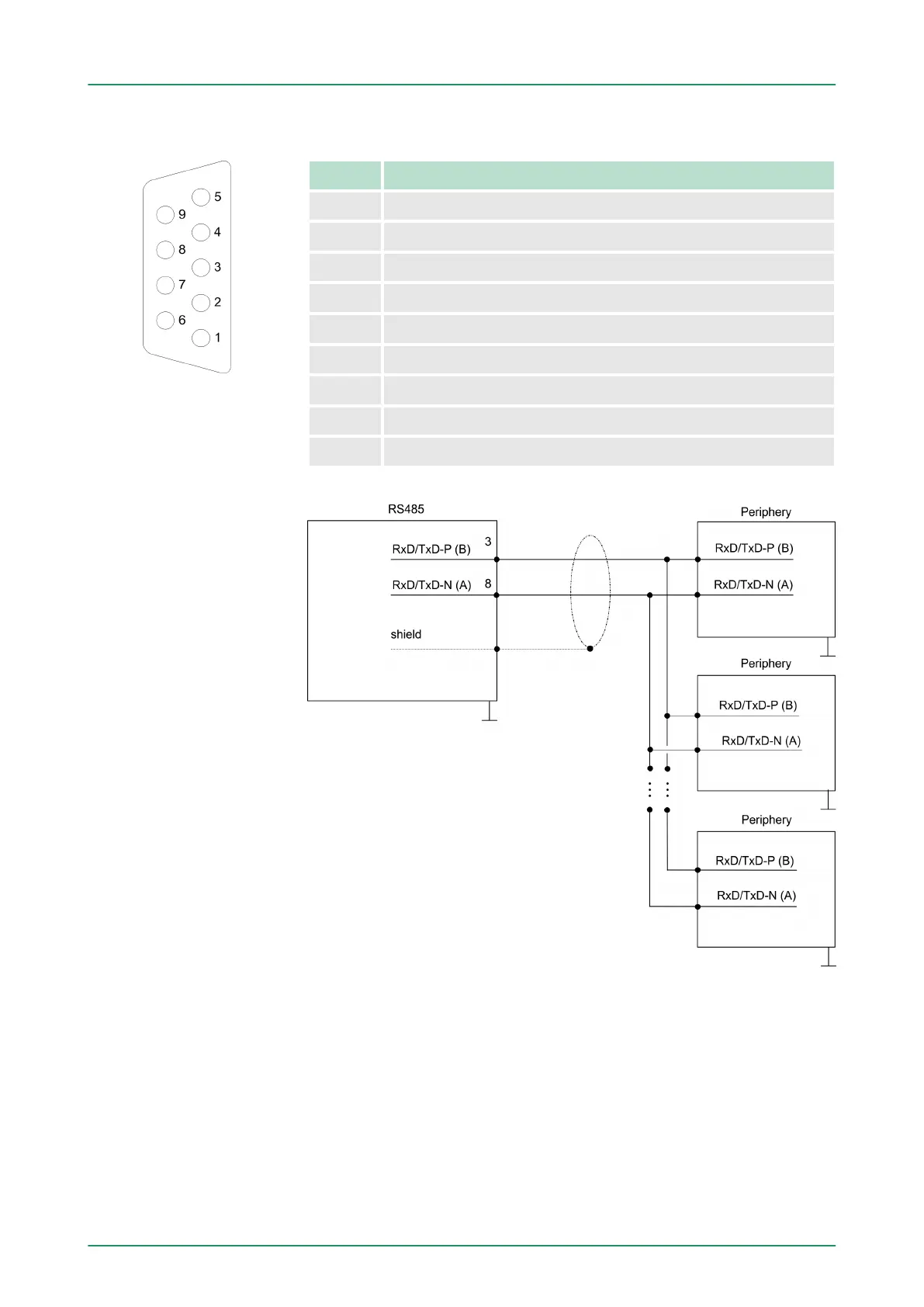

9pin SubD jack
Pin RS485
1 n.c.
2 M24V
3 RxD/TxD-P (Line B)
4 RTS
5 M5V
6 P5V
7 P24V
8 RxD/TxD-N (Line A)
9 n.c.
7.4 Parametrization
7.4.1
FC/SFC 216 - SER_CFG - Parametrization PtP
The parametrization happens during runtime deploying the FC/SFC
216 (SER_CFG). You have to store the parameters for STX/ETX,
3964R, USS and Modbus in a DB.
RS485
Connection
VIPA System 300SDeployment PtP communication
Parametrization > FC/SFC 216 - SER_CFG - Parametrization PtP
