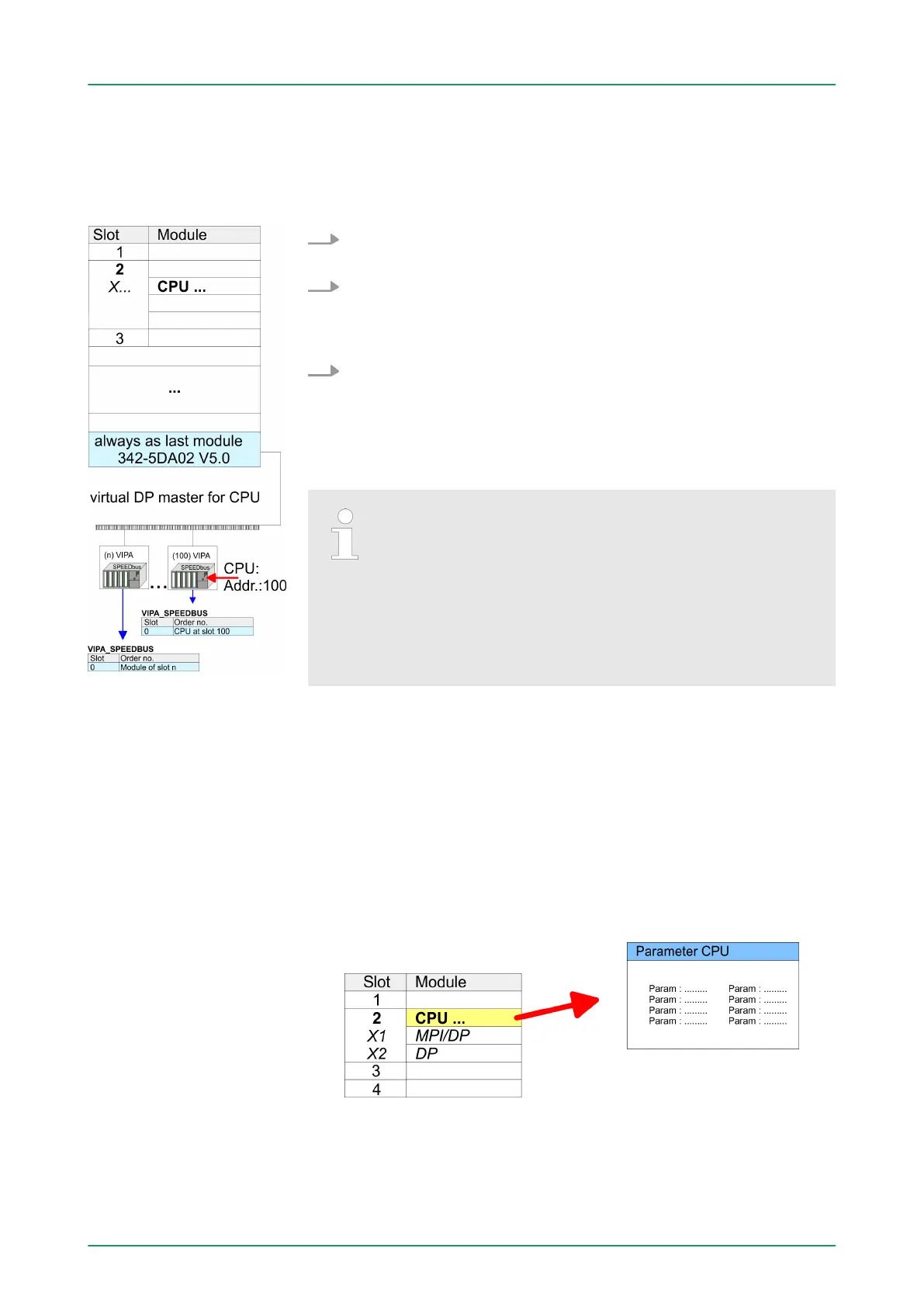

5.7.2 Proceeding
The embedding of the CPU 314-6CF03 and its modules at the
SPEED-Bus happens by means of a virtual PROFIBUS master
system with the following approach:
1.
Perform a hardware configuration for the CPU.
Ä
Chapter 5.4
‘Hardware configuration - CPU’ on page 59
2. Since the SPEED-Bus modules are to be linked as a virtual
PROFIBUS system, configure always as last module a Siemens
DP master CP 342-5 (342-5DA02 V5.0). Link the DP master to a
new PROFIBUS net and switch it to DP master operating mode.
3. T
o this master system you assign every SPEED-Bus module as
"VIPA_SPEEDBUS" slave starting with the CPU. Here the
PROFIBUS address corresponds to the slot no. Beginning with
100 for the CPU. Place at slot 0 of every slave the assigned
module
Due to the fact that some SPEED-Bus CPs from VIPA
are similar in project engineering and parametrization
to the corresponding CP from Siemens, for each
SPEED-Bus CP a corresponding Siemens CP is to be
placed and linked at the standard bus.
More information about the configuration of the
according SPEED-Bus module may be found in the
according manual.
5.8 Setting standard CPU parameters
5.8.1
Parameterization via Siemens CPU
Since the CPU is to be configured as Siemens CPU 317-2DP (CPU
317-2AJ10 V2.6) in the Siemens hardware configurator, the standard
parameters of the VIPA CPU may be set with "Object properties" of
the CPU 317-2DP during hardware configuration. Via a double-click
on the CPU 317-2DP the parameter window of the CPU may be
accessed. Using the registers you get access to every standard
parameter of the CPU.
Parameterization via
Siemens CPU
317-2AJ10
VIPA System 300SDeployment CPU 314-6CF03
Setting standard CPU parameters > Parameterization via Siemens CPU
HB140 | CPU | 314-6CF03 | GB | 16-43 64
