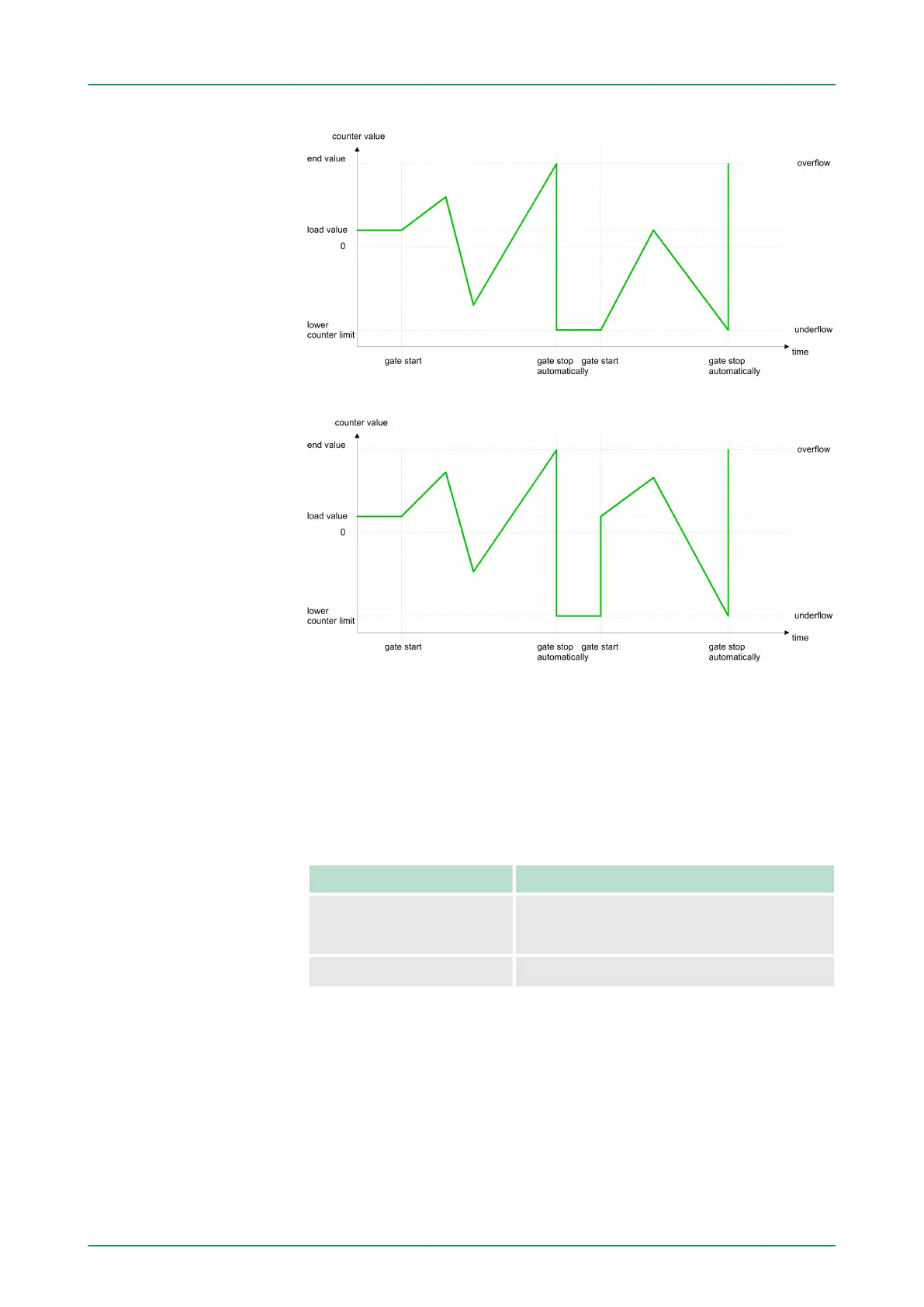

Aborting gate control:
Main counting direction forward
n The counter counts starting with the load value.
n When the counter reaches the end value -1 in positive direction, it
jumps to the load value at the next positive count pulse and the
gate is automatically closed.
n T
o restart the count process, you must create a positive edge of
the gate. The counter starts with the load value.
Limits Valid value range
Limit value
-2 147 483 647 (-2
31
+1)
to +2 147 483 647 (2
31
-1)
Lower count limit
-2 147 483 648 (-2
31
)
VIPA System 300S Deployment I/O periphery
Counter - Functions
