n At interrupt function, the counter starts counting with the last
recent counter value after gate restart.

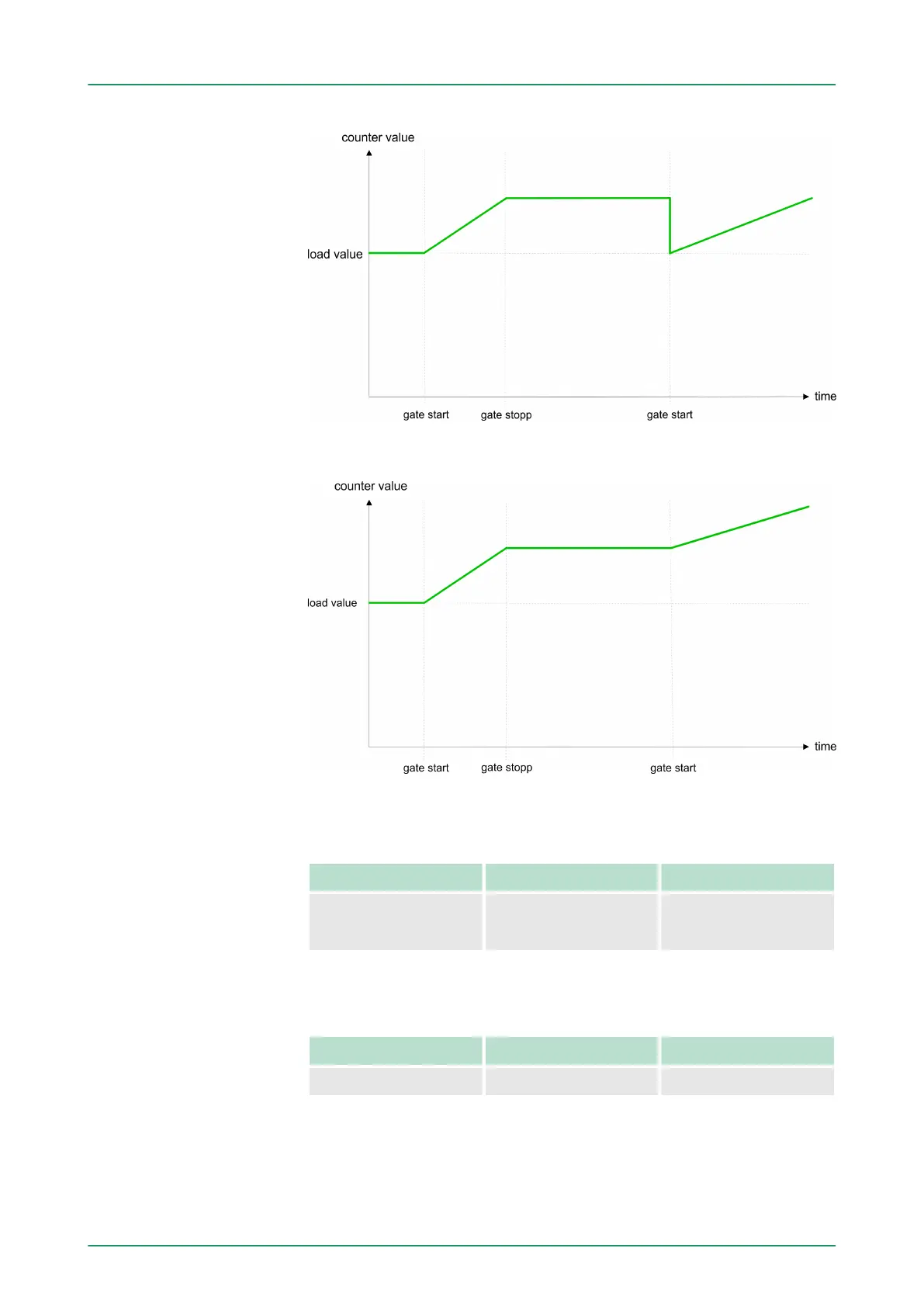

Gate control via SW
-gate, aborting (parametrization: record set
0, byte 0, bit 7 ... 3 = 00000b)
SW-gate HW-gate Reaction counter
Edge 0-1 de-activated Restart with
Load value
Gate control via SW
-gate, interrupting (parametrization: record
set 0, byte 0, bit 7 ... 3 = 10000b)
SW-gate HW-gate Reaction counter
Edge 0-1 de-activated Continue
Gate control abort,
interrupt
VIPA System 300SDeployment I/O periphery
Counter - Additional functions
HB140 | CPU | 314-6CF03 | GB | 16-43 166
