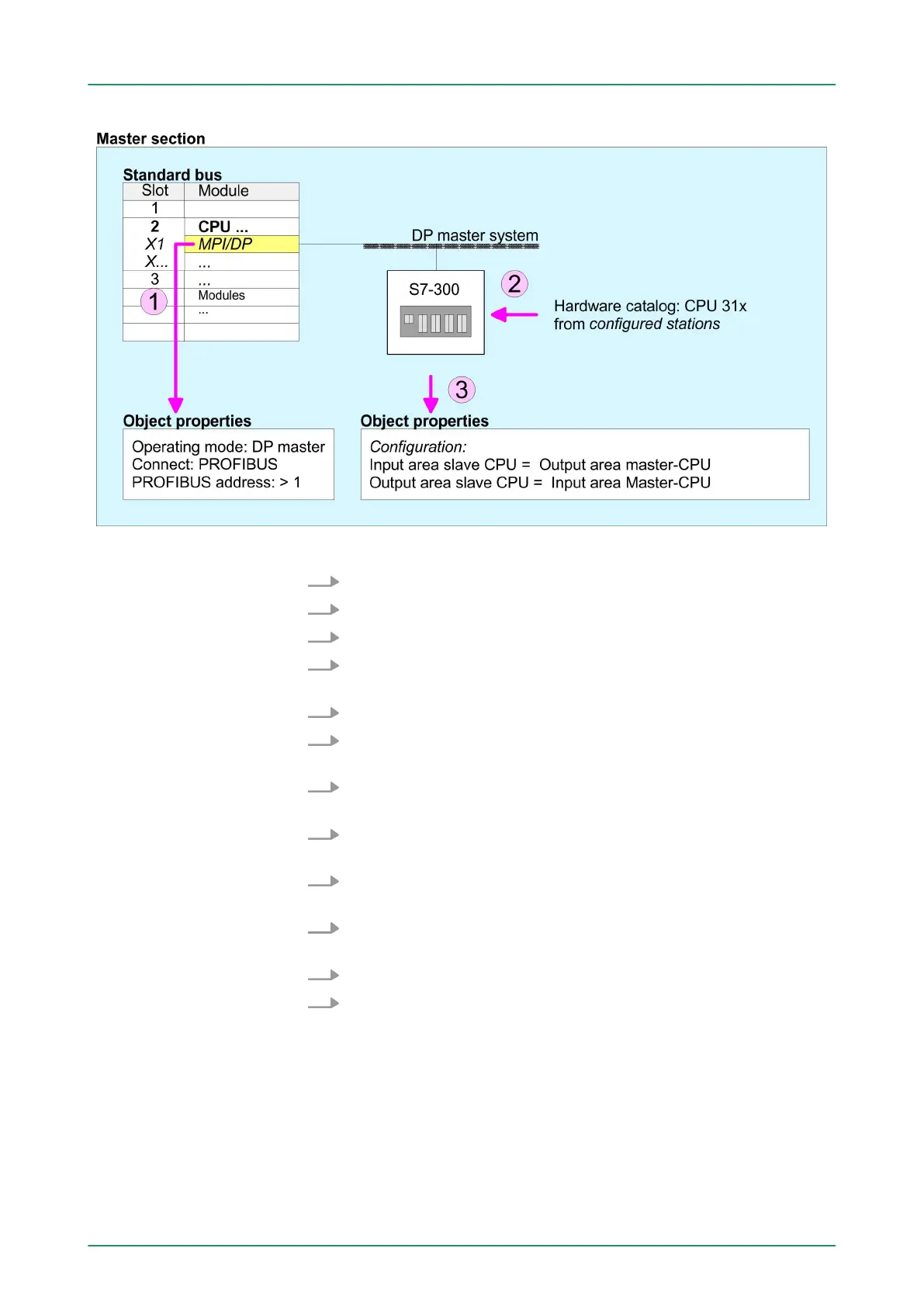

DP master and DP slave are in different projects
1. Create a new project, add a station and configure a CPU.
2. Designate the station as "...DP master".
3. Add your modules according to the real hardware assembly
.
4. Open the properties dialog of the DP interface of the CPU by
means of a double-click at ‘DP’ .
5. Set Interface: type to "PROFIBUS".
6. Connect to PROFIBUS and preset an address (e.g. 2) and con-
firm with [OK].
7. Switch at Operating mode to "DP master" and confirm the dialog
with [OK].
8. For further configuration, install the GSD file from the appropri-
ately configured Siemens slave CPU.
9.
Choose via ‘Additional field devices è PLC è SIMA
TIC’ the
Siemens slave CPU.
10. Connect your slave system to the master system by dragging
the slave CPU via PROFIBUS onto the master system.
11. V
ia the slots configure the I/O area of your slave system.
12. Save, compile and transfer your project to your CPU.
VIPA System 300S Deployment PROFIBUS communication
Deployment as PROFIBUS DP slave
HB140 | CPU | 314-6CF03 | GB | 16-43 199
