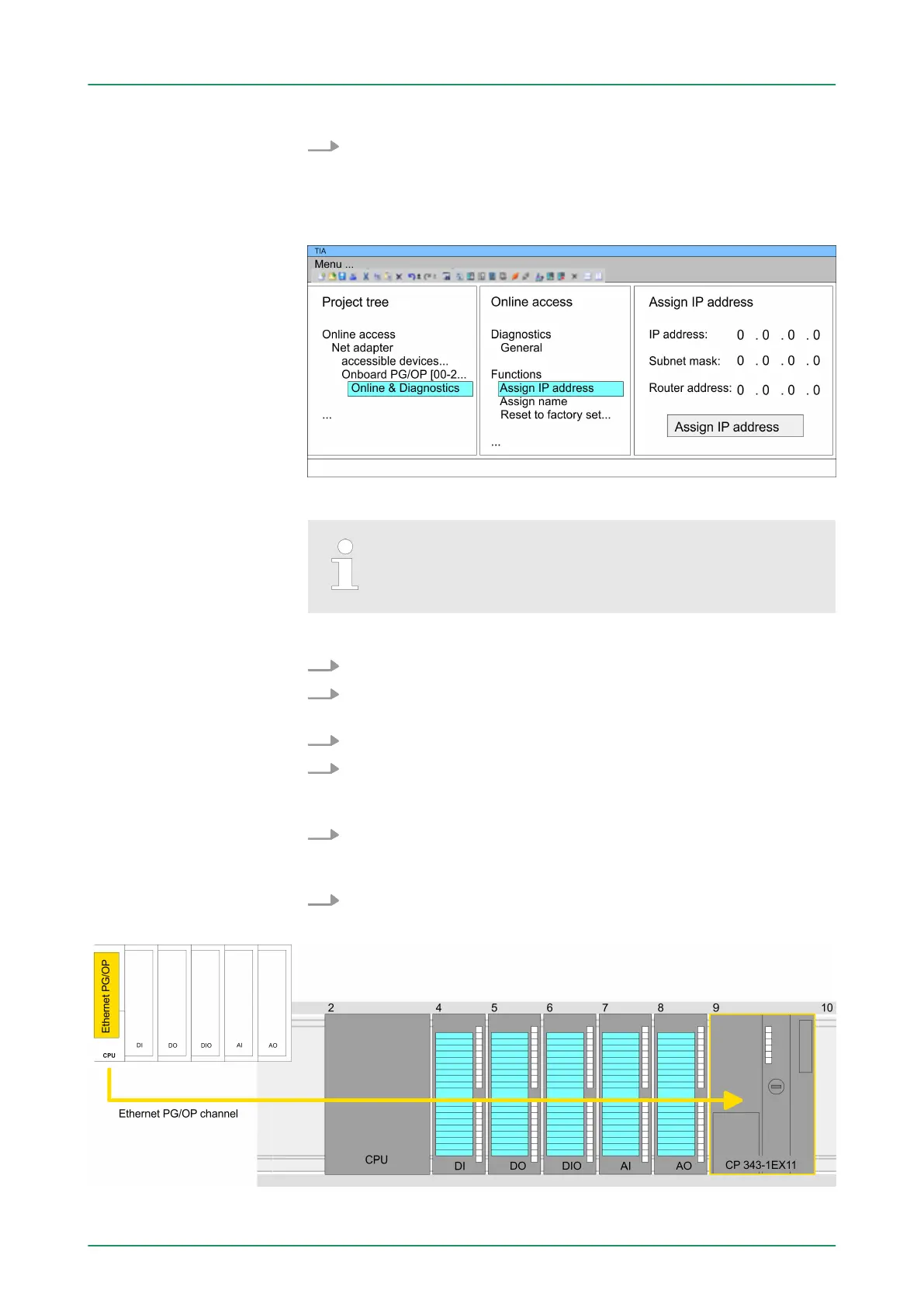

7. Confirm with [Assign IP configuration].
ð
Directly after the assignment the Ethernet PG/OP channel is
online reachable using the set IP address data. The value
remains as long as it is reassigned, it is overwritten by a
hardware configuration or an factory reset is executed.
Due to the system you may get a message that the IP
address could not be assigned. This message can be
ignored.
1. Open your project.
2. If not already done, configure in the ‘Device configuration’ a
Siemens CPU 317-2DP (6ES7 317-2AJ10-0AB0/V2.6).
3. Configure the System 300 modules.
4. For the Ethernet PG/OP channel you have to configure a Sie-
mens CP 343-1 (6GK7 343-1EX1
1 0XE0) always as last module
after the really plugged modules.
5. Open the "Property" dialog by clicking on the CP 343-1EX1
1 and
enter for the CP at "Properties" at "Ethernet address" the IP
address data, which you have assigned before.
6. Transfer your project.
Take IP address param-
eters in project
VIPA System 300S Configuration with TIA Portal
TIA Portal - Hardware configuration - Ethernet PG/OP channel
HB140 | CPU | 314-6CF03 | GB | 16-43 221
