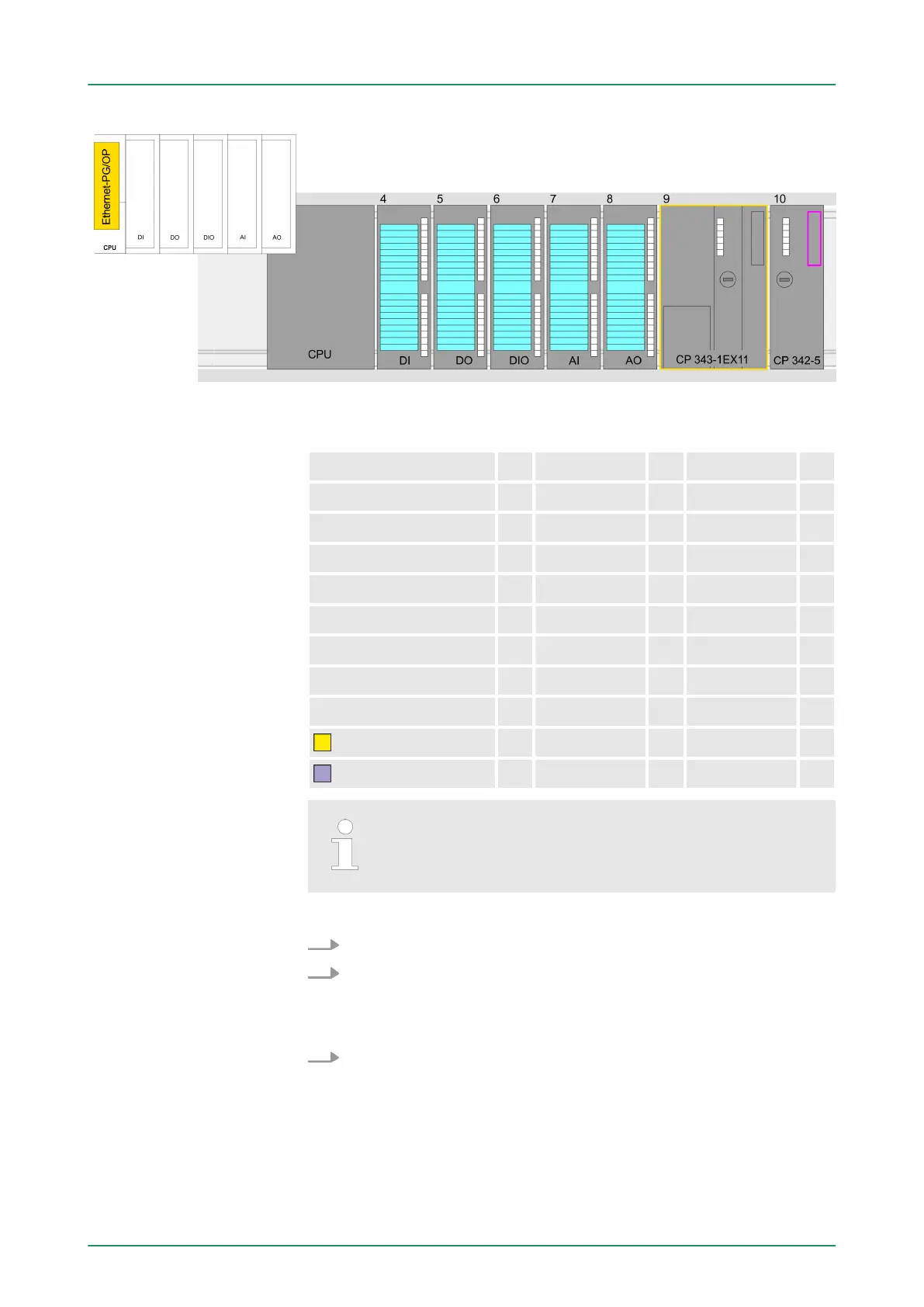

Device overview
Module ... Slot ... Type ...
PLC... 2 CPU ...
... ... ...
3
DI... 4 DI...
DO... 5 DO...
DIO... 6 DIO...
AI... 7 AI...
AO... 8 AO...
CP 343-1
9 CP 343-1
CP 342-5
10 CP 342-5
Thus, the VIPA components can be displayed, you
have to deactivate the "Filter" of the hardware catalog.
1. Switch in the Project area to Network view.
2. Connect the slave system "VIP
A_SPEEDbus". After installing
the SPEEDBUS.GSD this may be found in the hardware catalog
at: Other field devices > PROFIBUS DP > I/O > VIPA GmbH >
VIPA_SPEEDbus.
3. Set for the SPEEDbus slave system the PROFIBUS address
100.
Connect
VIP
A_SPEEDbus
VIPA System 300SConfiguration with TIA Portal
TIA Portal - Setting VIPA specific CPU parameters
HB140 | CPU | 314-6CF03 | GB | 16-43 224
