Site Requirements
VT400 Technical Manual, Rev. A5 17 Doc # UM-VT400-EN
2 Installation
2.1 Site Requirements
The mounting location must be a stable surface, free of vibrations, heat or humidity.
Avoid direct sunlight on the front of the instrument. The unit should be placed at the
correct height to allow easy reading of the display and convenient keyboard
operation.
2.2 Mounting the Indicator
2.2.1 Installation
The indicator is panel-mounted. The cut-out dimensions for panel installation are
136.5mm x 66.5mm. The front and rear views of the unit are shown in Figure 1.

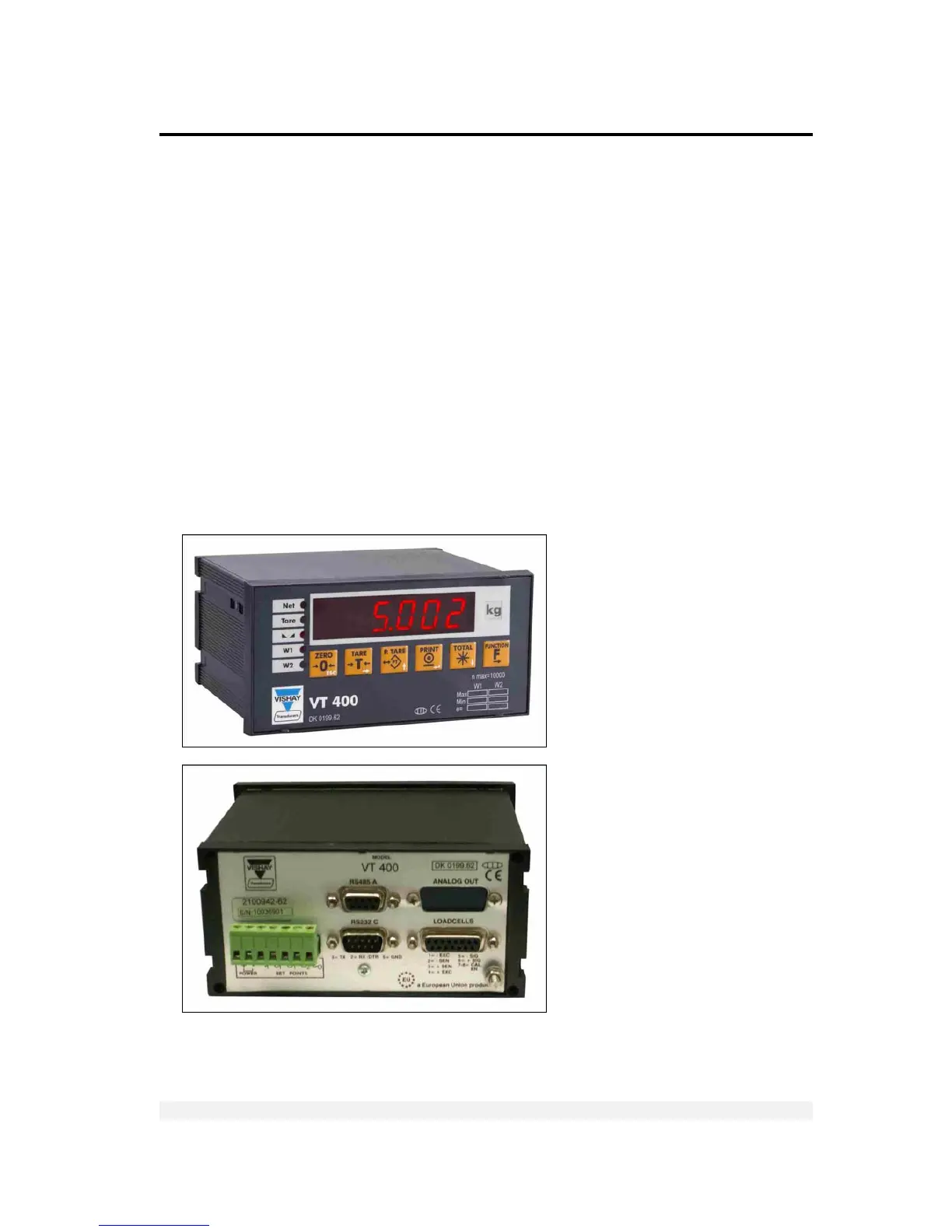

Figure 1 – Front and rear views of the VT400
