Vitronics Soltec XPM3m - Page 23

Technical Reference Manual-XPM3m Revision Date: August 2014
XPM3m Release date: July 1, 2013

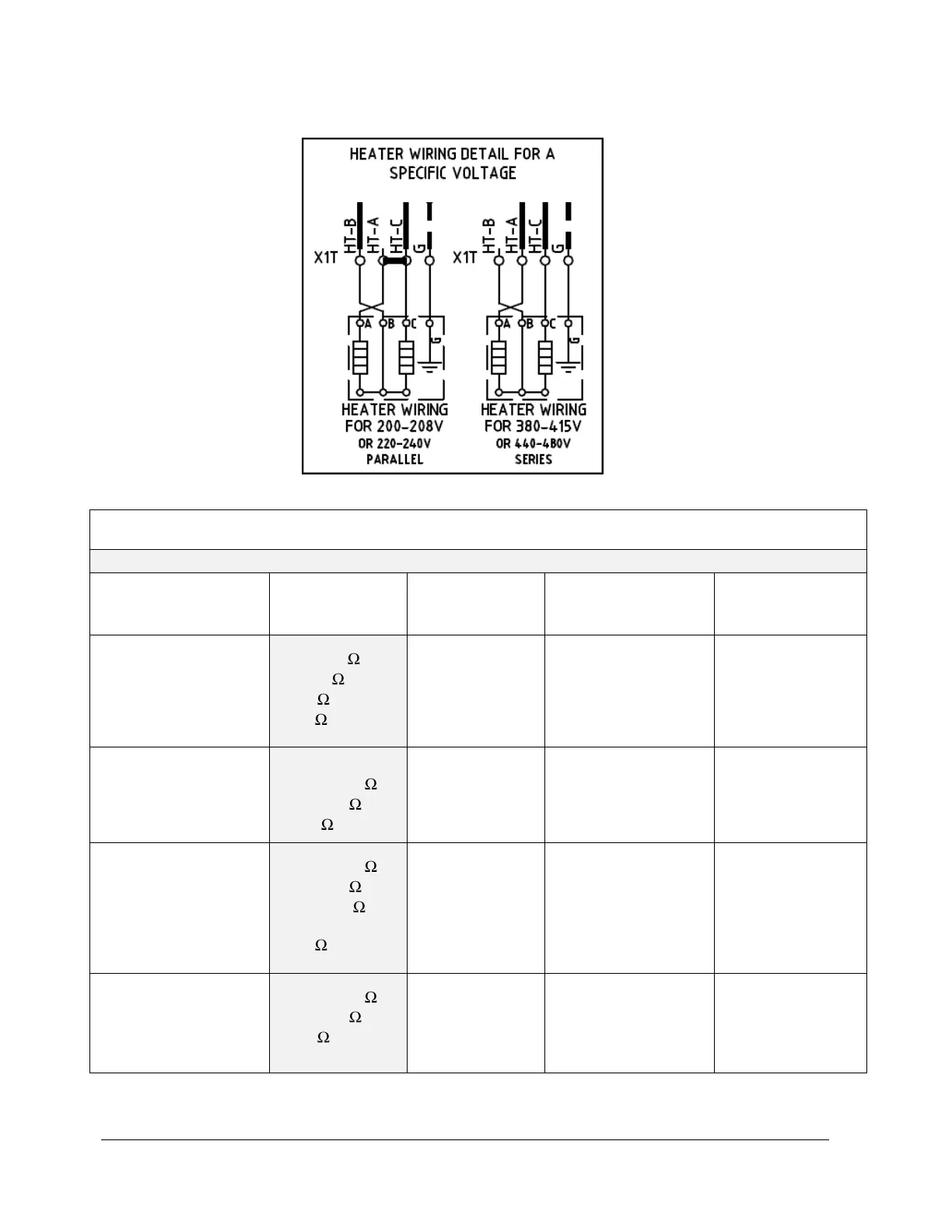

Heater Element Resistance Reference Chart
VOLTAGE
RESISTANCE
HOLE SIZE
HEATER ASSY #
(stamped on face plate)
ELEMENT #
(2 ELEMENTS PER
HEATER)
200 - 208 Volts
(LOW RANGE)
-PARALLEL WIRING-
Test: 8.2 - 9.1
8.65 nominal
18.0 = 1 open
element
.156”
D3200402
D6126202
380 - 415 Volts
(LOW RANGE)
-SERIES WIRING-
Test: 33.0 -
36.5
34.75 nominal
.156”
D3200402
D6126202
220 - 240 Volts
(HIGH RANGE)
-PARALLEL WIRING-
Test: 11.0 -
12.1
11.55
nominal
24.0 = 1 open
element
.156”
D3200401
D6126201
440 – 480 Volts
(HIGH RANGE)
-SERIES WRING-
Test: 43.9 -
48.5
46.2 nominal
.156”
D3200401
D6126201
