Vitronics Soltec XPM3m - Page 68

Technical Reference Manual-XPM3m Revision Date: August 2014

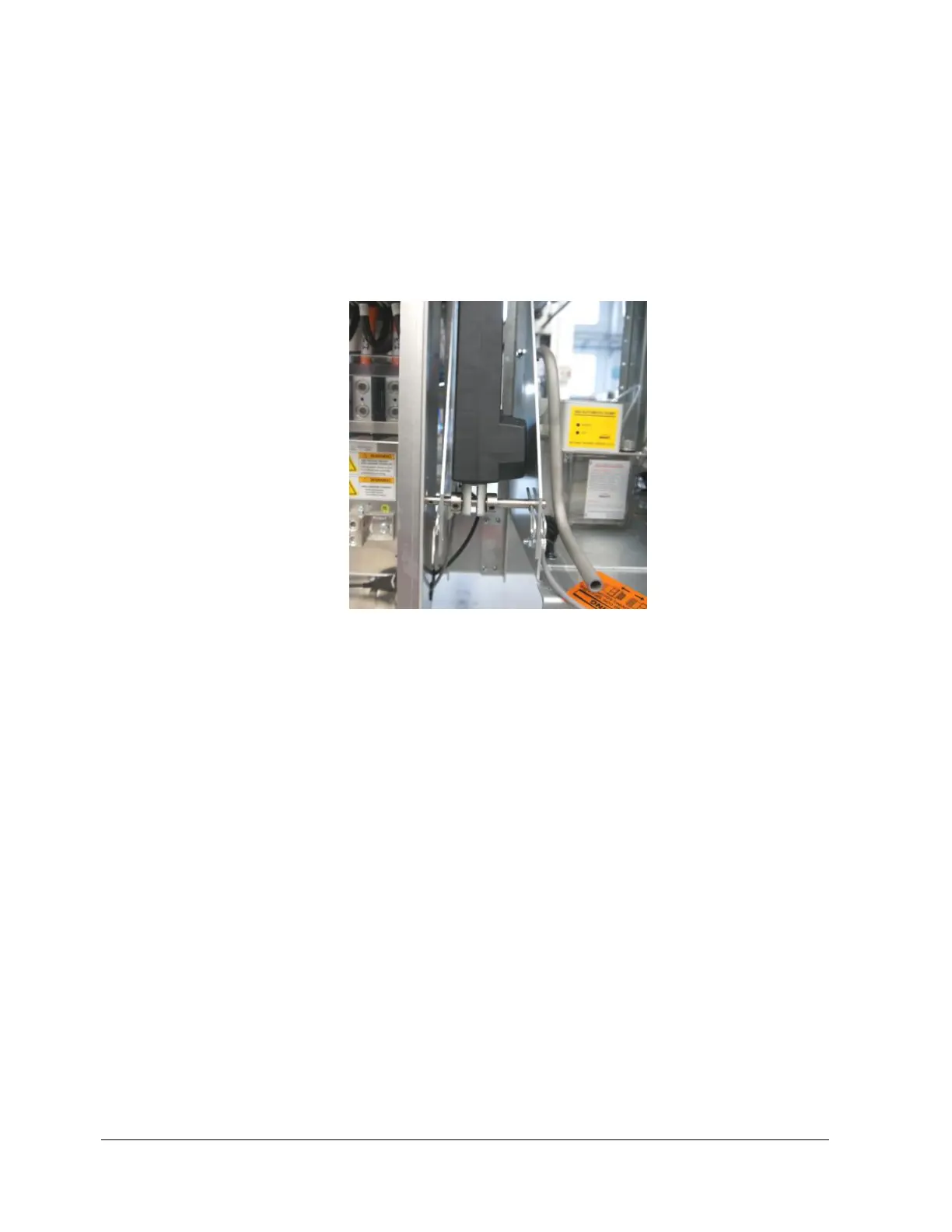

Unplug the actuator from the control box and remove the actuator cable with the actuator.
Remove the two safety clips from the pin holding the actuator piston to the bracket. Remove the piston pin holding
the actuator piston to the bracket.
The installation procedure is the reverse if the removal procedure.
