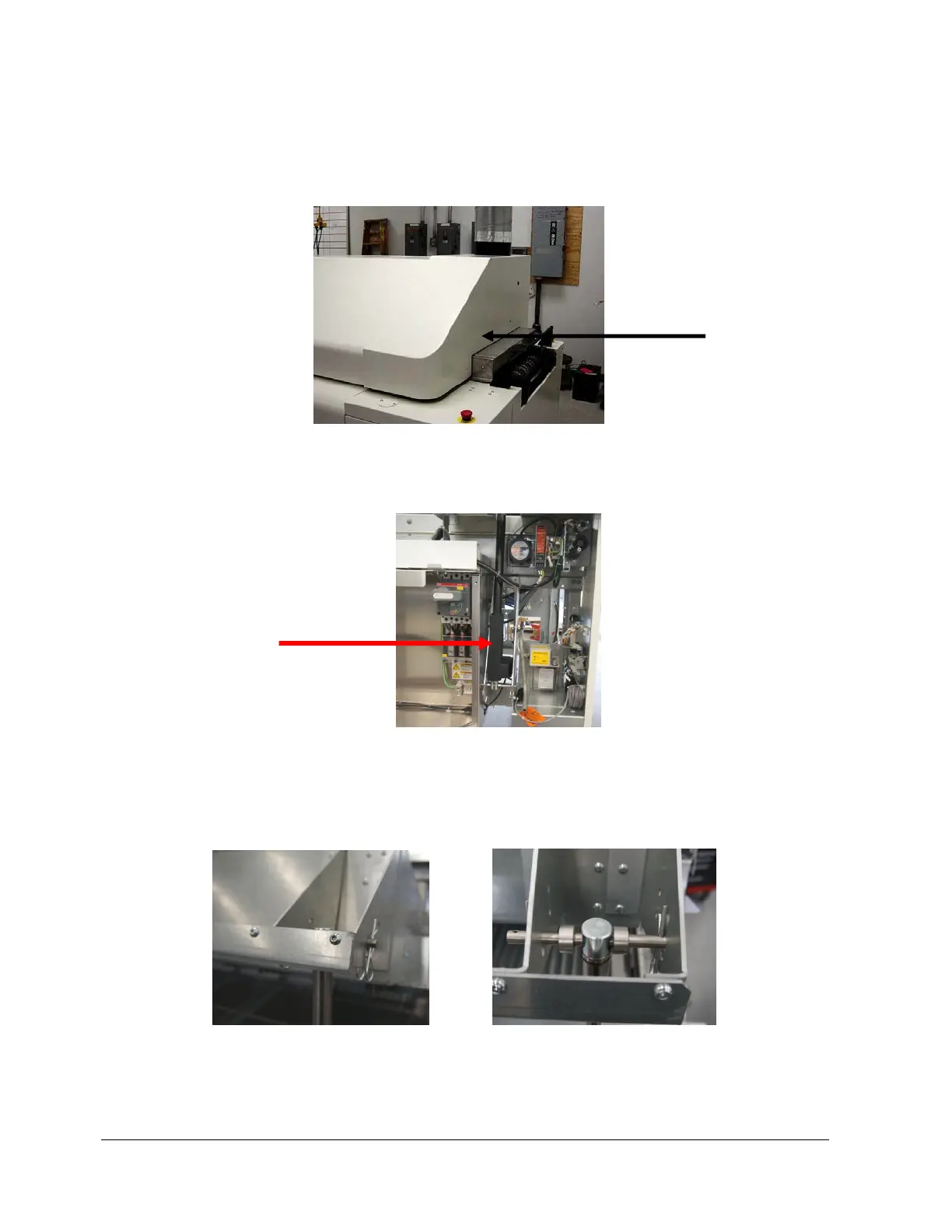

REPLACING THE ACTUATOR ASSEMBLY WITH THE BONNET IN THE CLOSED POSITION:
Remove the bonnet bridge sheet metal piece on the end of the oven where the actuator will be changed.
The body of the actuator is accessed through the equipment cabinets on each end of the oven.
Carefully raise the actuator and position it in its frame location. Use the mounting pin to lock the piston in place in
the bracket. As you are pushing the mounting pin into place, install the locking shaft collars on each side of the
piston. Replace the two safety clips on the mounting pin. Let the actuator hang from the mounting pin.
