VOLTA FBW II Series User Manual

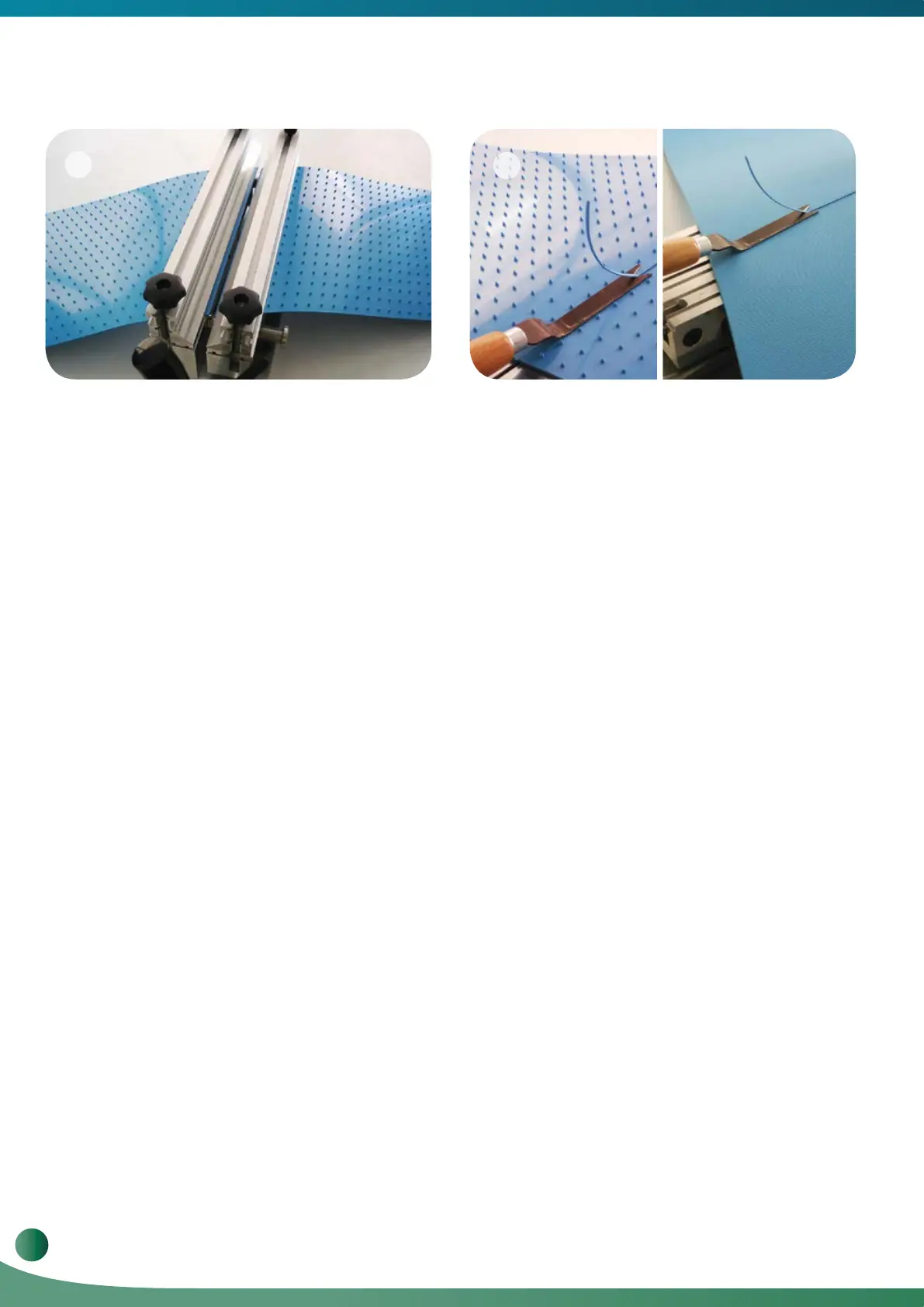

Insert the cross bar on the first side and repeat the same
stages on the other side. As the cut is in an angle, position
the belts ends according to reinforced belt joining
instructions (Page 13). Weld the belt according to the
instructions as described in the FBW Users Manual.
After the belt is cooled down, trim the weld with the ‘V’
shape knife. Use liquid soap to improve the cut if
required. Turn the belt and position it on top of the cutting
bar in a way that the spikes are inserted to the grooves,
this will allow you an easy trim of the underside. Check
the weld and perform “cosmetic” finish if necessary. A
good weld will be free of cracks and defects.
5
6
16
