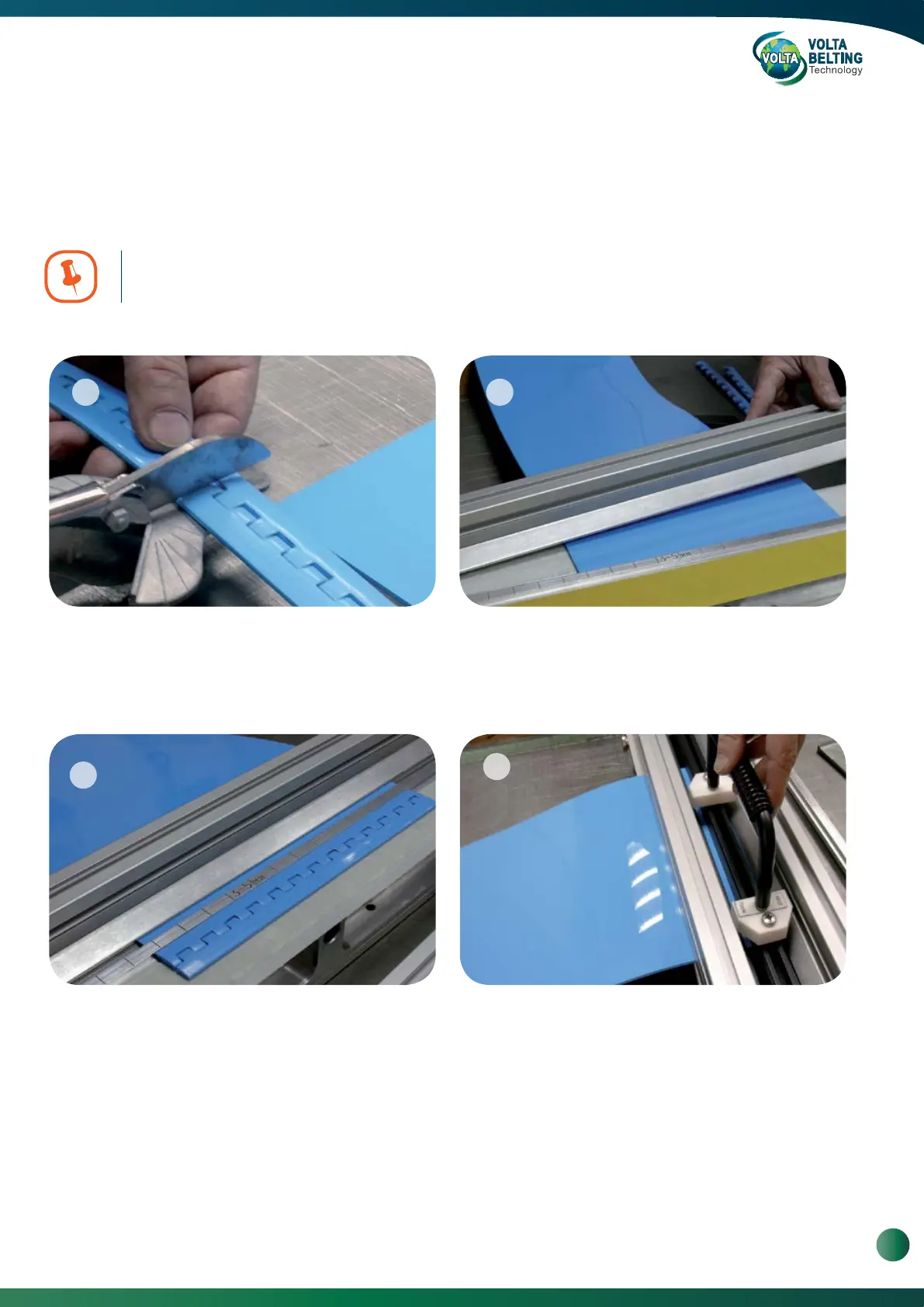

Cut the belt to the required length taking into consideration
the lace. Join the lace and cut to the belt’s width.
Position the lace as you did the belt. Make sure the lace
sides interlock and the flat side faces down. The lace
should be symmetrically aligned to the belt.
8.8. Welding Volta Hinge Lace with FBW
You must be familiar with the welding instruction in the FBW Manual before
continuing with this procedure.
There are occasions when it may be necessary to splice the flat belt using Volta Hinge Lace. This hinge lace is suitable for
belt thicknesses of 2.5 to 4 mm. When working with lace, it is important that you work according to the following instructions.
If you haven’t welded this product before, weld a section of a trial belt before welding your Volta conveyor belt.
Weld the belt to the lace according to the welding
instructions for FBW. The thicker the belt, the longer the
melt should be to match the thickness of your belt.
Position one side of the belt on the Pliers according to
the welding instructions in the FBW Manual. Remember
to use double-sided tape for this task.
1 2
4
3
31
