VOLTA FBW II Series User Manual

22
FBW Pliers with adapters and Locator Bar Spacer in place
FBW with adapters and
Locator Bar Spacer
Locking Screws
21

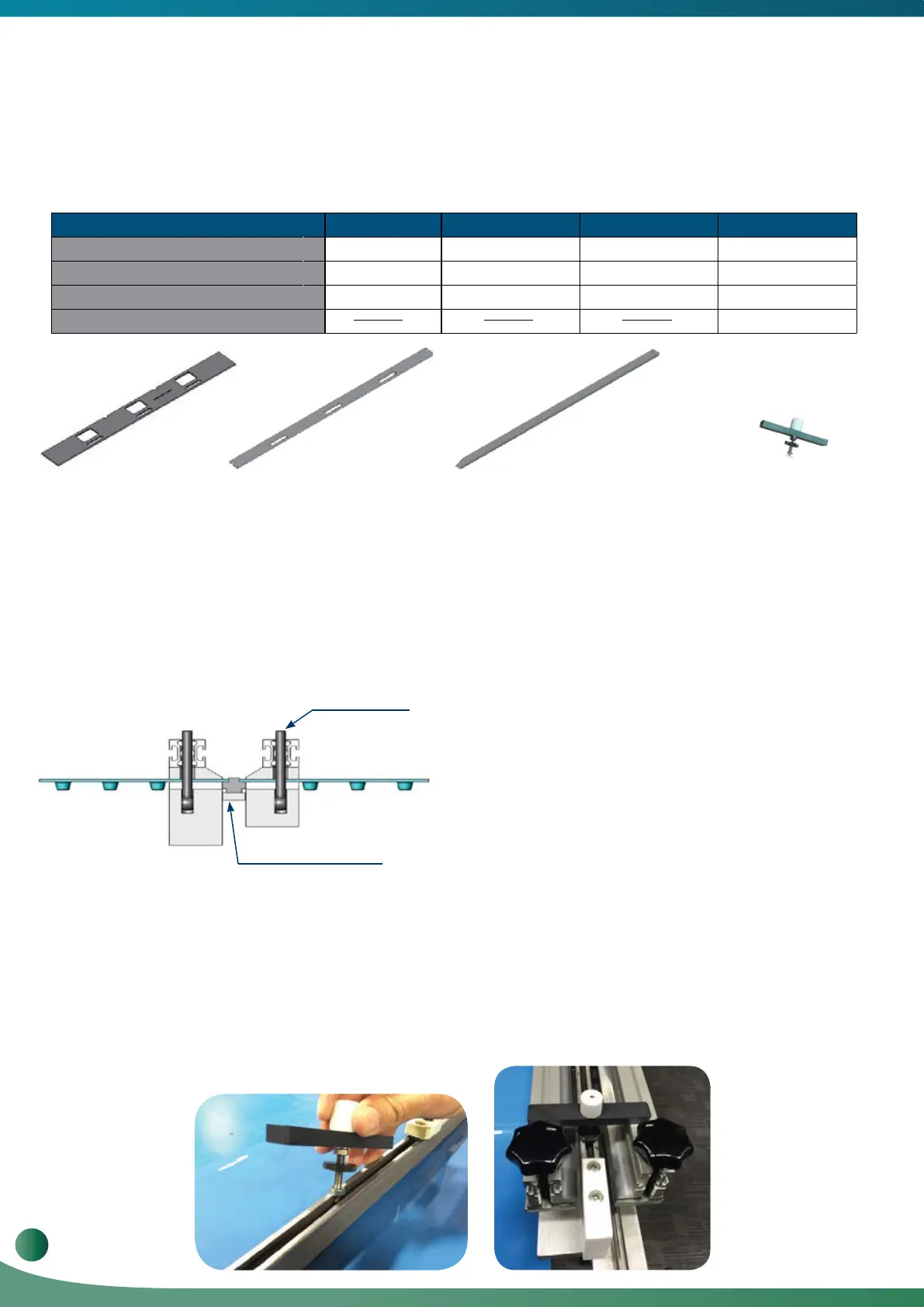

8.2. Instructions for welding SuperDrive™ Belts Using FBW Adapter
For owners of the FBW-721 FBW-1061 and FBW-1301, Volta has prepared an Adapter kit for welding SuperDrive™
‘H’ and ‘M’ material belts.
21
8.3. Positioner for Welder
Is available in the kits FBW1301 and FBW1701 PD & Mini and is used for welding all the Volta belts where an adapter
is needed .
- Prior heating the wand connect both Positioners to both end of the wand. (Pic.1)
- The adaptors of the DD, DDSP, 1" pitch positive drive belts and impression top belts elevate the belt.
The Positioners keep the welder leveled with the top bars. (Pic.2)
For FBW-301 For FBW-721 For FBW-1061 FBW-1301
Cutting Bar, SuperDrive™ H/M (Fig. 1)
Cat. #8162567
Cat. #8 1625901 Cat. # 81625907 Cat. #81626192
Adapter Bar, SuperDrive™ H/M (Fig. 2)
Cat. #81307252
Cat. #81307242 Cat. # 81310602 Cat. #81313001
Locator Bar Spacer, SuperDrive™ H/M (Fig. 3)
Positioner for welder (Fig. 4)
Cat. #81625902
Cat. # 81625903 Cat. # 81625905 Cat. #81625906
Cat.#81626342
Welding Instructions:
a.
b.
Use the Cutting Bar to cut the belt between the teeth.
To ensure a 90° cut, Repeat stages a-d on page 15-16.
Position the Locator Bar Spacer and the Adapters on
the Pliers Base. Raise the two hinged Locking Screws
to a vertical position and close and lock the Pliers
(see figure below).
c.
d.
Apply double-sided tape to the exposed surface of the
Adapters and cut away the tape from the SuperDrive™
tooth grooves.
Remove the protective paper from the double-sided tape
on one side and position the belt. The difference in working
with the SuperDrive™ belt is that you must position the tooth
over the groove before bringing the rest of the belt into contact
with the tape. Press the belt onto the tape to ensure a firm
and consistent contact.
e.
f.
g.
Release the Pliers and adjust the Locator Bar so that the
belt edge matches one of the scribe marks and re-lock
the Pliers.
Position the other belt end using the scribe mark on the
Locator Bar Spacer to align the belt.
Continue the welding process as for a standard flat belt.
Fig. 3
Locator Bar Spacer
- SuperDrive™ H/M
Fig. 2Fig. 1
Cutting Bar -
SuperDrive™ H/M
FBW Adapter Bar -
SuperDrive™ H/M
Fig. 4
Positioner for
welder
22
Volta Belting Technology Ltd.
Welding & Fabrication Tools FBW-Flat Butt Welding System Model II
