To ensure an accurate and efficient weld of Mini SuperDrive™-MiniCleat belts when splicing with the FBW Kit, choose the
Adapter suitable to your FBW Tool from the table below. If you haven’t welded this product before, weld a section of a trial
belt before welding your Volta conveyor belt.
Required Tools:
FBW Welding kit (one of the following, according to your tool)
PD 1” Adapter Set for FBW 300/301 Cat. #813072538
PD 1” Adapter Set for FBW 720/721 Cat. #813072440
PD 1” Adapter Set for FBW 1060/1061 Cat. #813106040
1 2

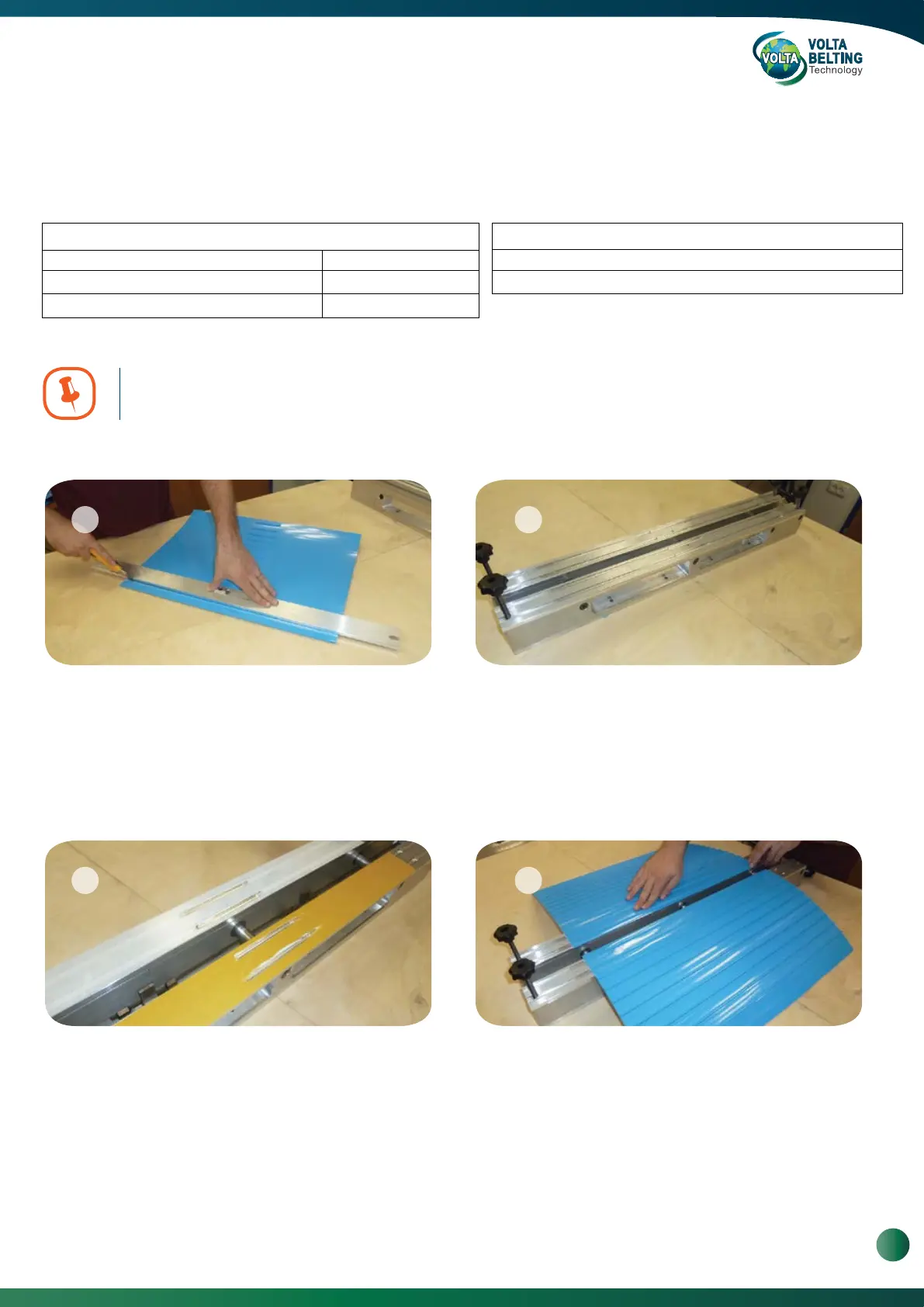

8.6. Welding Mini SuperDrive™ MiniCleat
You must be familiar with the instructions for welding with FBW
before continuing with this procedure.
PD 1” Adapter Set for FBW 1300/1301* Cat. #81313017
PD 1” Adapter Set for FBW 1700/1701* Cat. #81313020
MSD-MC Accessories Set Cat. #8153107MSDMC
* Non-standard
Choose the PD 1” Adapter that fits your pliers. Place the
adapter on the MSD side of the belt and cut the two ends
of the belt along the “Cutting” side. You must use this side
for cutting the belt to ensure correct pitch of the teeth.
Make sure that the cut is accurate and straight.
Position the Adapters onto the Pliers so the location block
is inserted into the SuperDrive slots on the pliers. Make
sure the Mini SuperDrive grooves in both adapters are
aligned. It is recommended to use small strips of double
sided tape to secure the adapters onto the Pliers.
3 4
Place double sided tape on the top surface of the
adapters and carefully trim the tape along the MSD
grooves in the adapters with a utility knife. The double
sided tape will help achieve a better, bubble free, weld.
Position both sides of the belt on the Pliers. The belt’s
MSD teeth should face down and interlock with the
grooves of the adapters.
27
www.voltabelting.com
To Next Page
