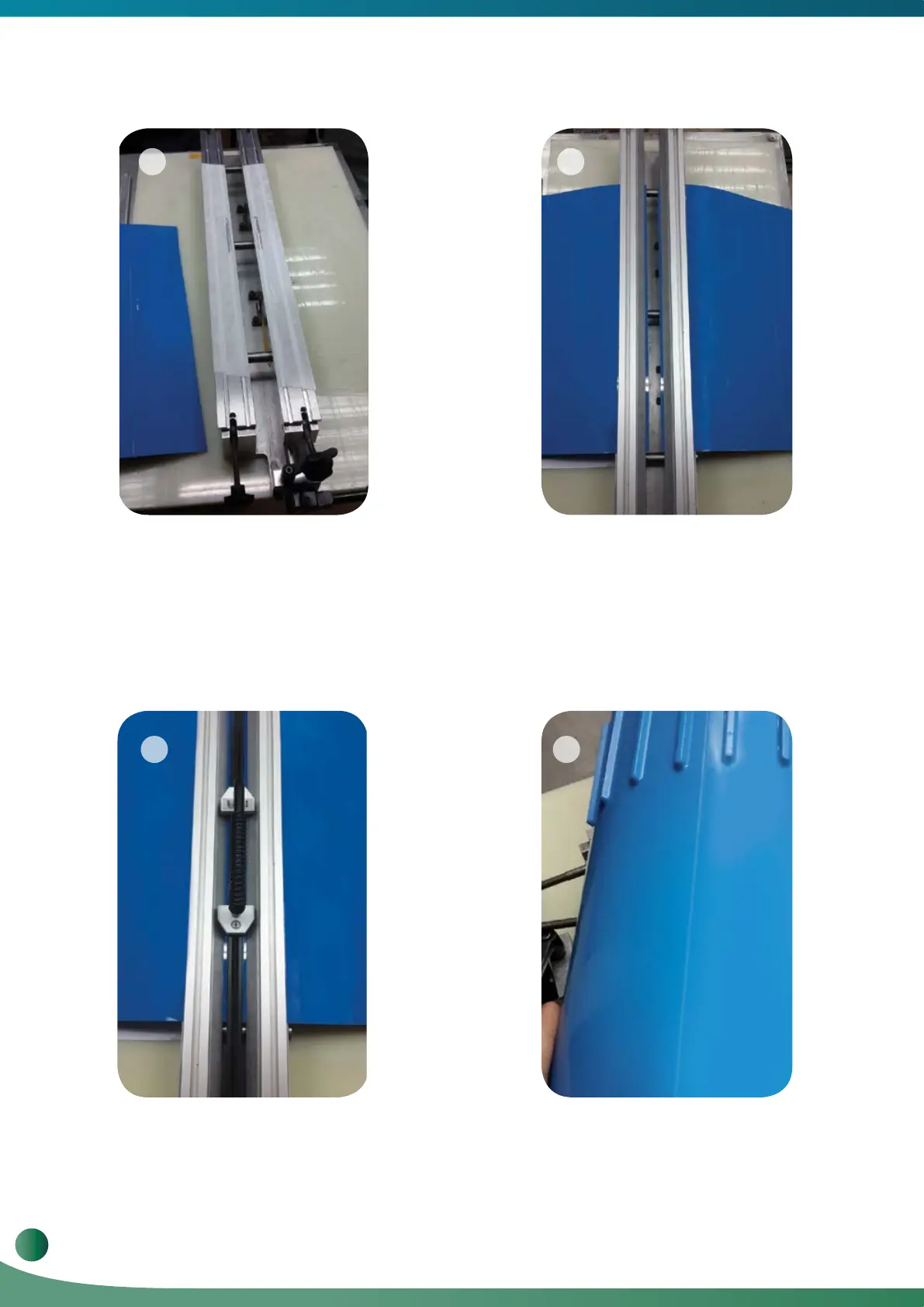

Position both sides of the belt so that the teeth face down
and mesh with the adapter grooves.
Double-sided adhesive tape should be applied to the top
of the adaptors as indicated in the photo.
It is important that the whole belt width will be taped
using the double sided adhesive tape. The tape should
be trimmed to fit the pattern of the grooves.
Trim and check the weld. A good weld will be free of cracks
and defect. Pitch tolerance should be +0 mm, -1.0 mm.
Position and tighten the FBW Crossbars over both belt
edges. Weld the belt according to the FBW User Manual
Instructions.
