VOLTA FBW II Series User Manual

1. Introduction
The FBW Welding Kit is designed to splice Volta
flat conveyor belts of up to 2300mm/ 90" wide.
No.
Qty. Description FBW Positive Drive (PD &Mini) Welding Kit Components
1 1
Case for FBW
2 1 Pliers
3 1 Welding Accessories (Welder, Control Box - Shinko)
4 1 SD Cutting Bar
5 1 Locator Bar
6 1 V Trim knife
7 2 DD Adapter
8 2 PD1” Adapter Set
9
10
2 Stopper for the DD /DDSP
1 Temperature Controller Instructions
1
FBW Welding Instructions Manual
2
Positioner for welder*
2
3
3
6
4
5
9
8
7

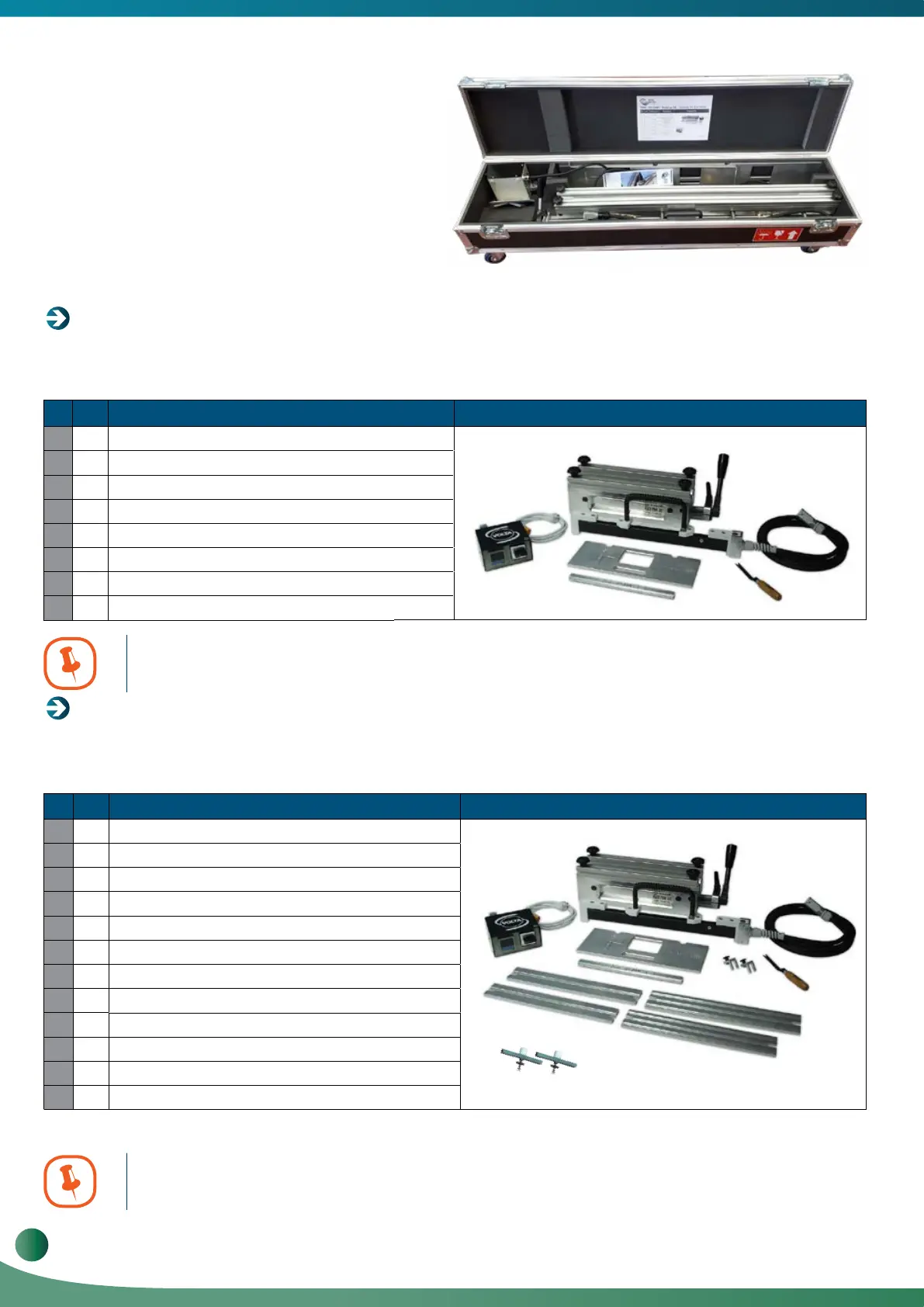

FBW Welding Kit
FBW Case see picture at the top of the page
No.
Qty. Description FBW Standard Welding Kit Components
1
1 Case for FBW
2 1 Pliers
3 1 Welding Accessories (Welder, Control Box - Shinko)
4 1 SD Cutting Bar
5 1 Locator Bar
6 1 V Trim knife
1 Temperature Controller Instructions
1 FBW Welding Instructions Manual
2
3
3
6
4
5
The FBW Welding Kit is available in a variety of sizes and voltage/power ratings. The model number indicates
the width of belt that may be welded on a 90° joint. For example, the Model FBW 301 welds a 300mm (12”) wide belt
and the model FBW 1301 welds a belt that is 1300mm (51”) wide.
Models 301, 721, 1061 and 1301 may be operated by one person. The FBW 1701, 2101 and 2301require two
operators for correct and safe operation because of the length and weight of the Welder. The FBW Welding Kit is
supplied in a storage case to store the system components. Store only the FBW Welding components in this box to
avoid damage of the items.
FBW Case see picture at the top of the page
Note: Positioner for welder* available in the FBW-1301 and FBW-1701 PD & Mini welding kits only.
10
