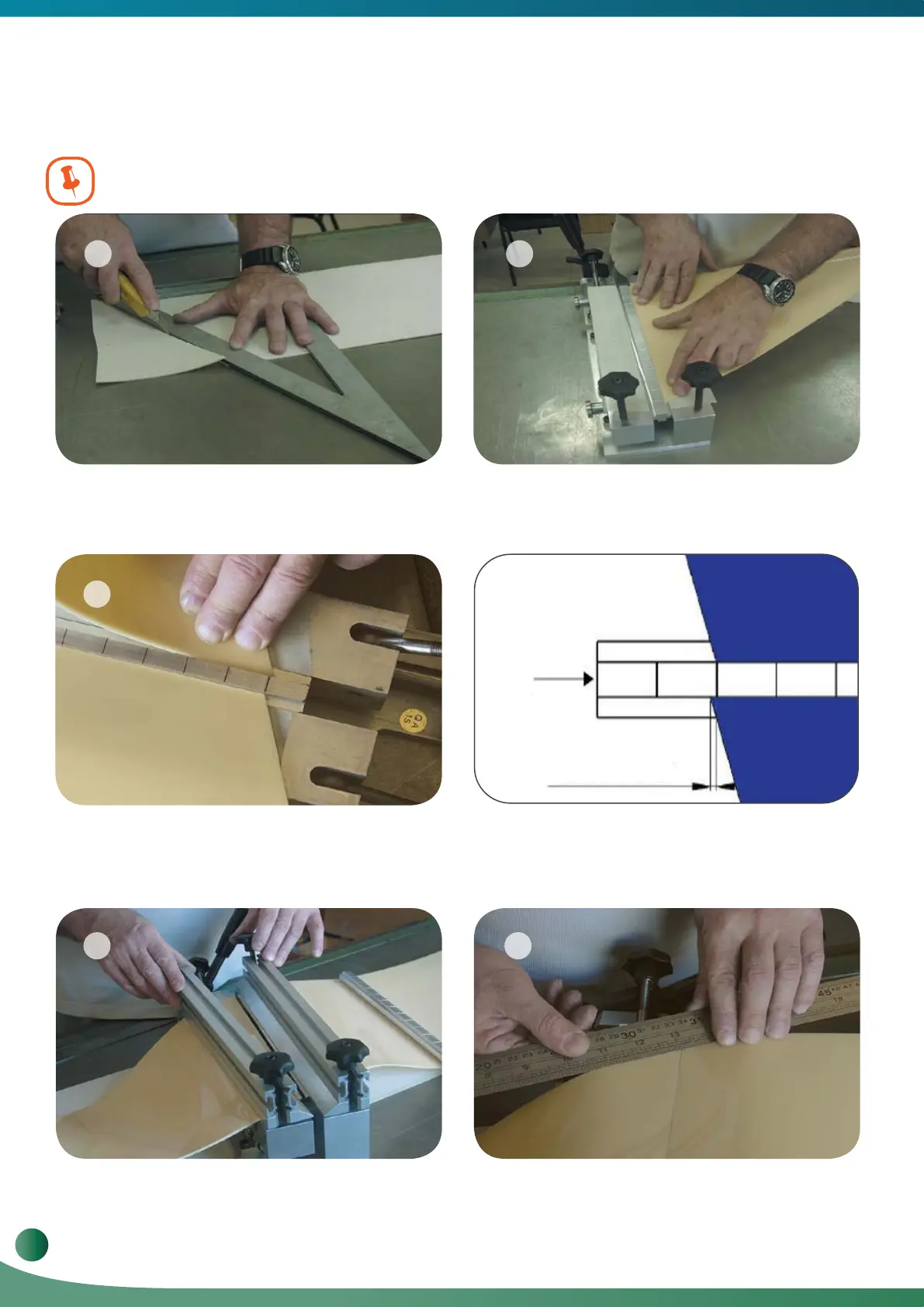

5. Instructions for Splicing Reinforced Flat Belts
Position the second belt end on the opposite Pliers base.
Ensure that there is an offset of 1 mm. This offset will
compensate for the material melted during welding and
ensure a smooth Straight edge.
Align the sharp upper edge of the belt with a reference
mark on the Belt Locator Bar and press the belt onto the
doublesided tape.
d.
c.
g. After trimming the weld, check that the belt edge is
aligned. A small disalignment may be trimmed.
f. Mount the Crossbars on the Pliers. Perfom weld as per
welding instructions.
a. Prepare the Control Box and Pliers.
b. Cut both ends of the belt to the desired angle.
1 2
3
4 5
Reinforced belts must be spliced in an angle (15° - 45°).
1 mm offset
Locator Bar
18
Volta Belting Technology Ltd.
Welding & Fabrication Tools FBW-Flat Butt Welding System Model II
