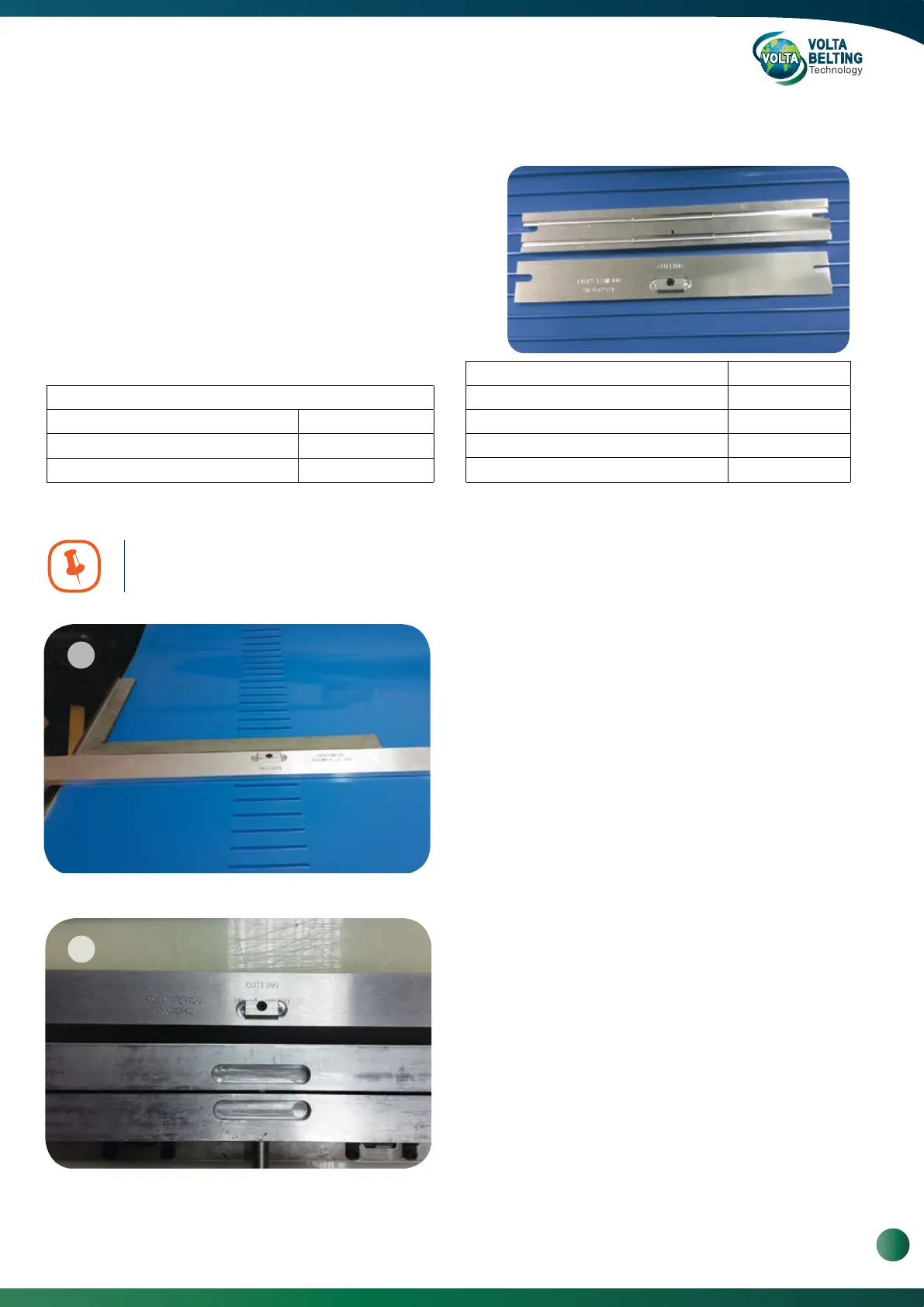

8.5. Welding Mini SuperDrive™ and Mini DualDrive™
An operator must be made familiar with the standard practice for welding with an
FBW prior to continuing with this procedure.
1
2
To ensure an accurate and efficient weld of Mini SuperDrive
TM
and Mini DualDrive
TM
belts when splicing with the FBW Kit,
choose the MSD/MDD Adapter suitable to your FBW Tool from
the table below.
If you haven’t welded this product before, weld a section of a trial
belt before welding your Volta conveyor belt.
Required Tools:
FBW Welding Kit
PD 1” Adapter Set for FBW - 301 Cat. #813072541
PD 1” Adapter Set for FBW - 721 Cat. #813072442
PD 1” Adapter Set for FBW - 1061 Cat. #813106042
PD 1” Adapter Set for FBW - 1301* Cat. #81313017
PD 1” Adapter Set for FBW - 1701* Cat. #81313024
Positioner for welder** Cat.#81626342
* Non-standard
** Positioner for welder FBW - 1301 and FBW - 1701 only.
Instructions on Page 22.
Position both Adapters onto the FBW belt clamp so that
the location lugs fit into the existing SuperDrive
TM
slots.
Ensure that the Adapters are aligned with each other.
Small sections of double-sided tape are essential to fix
the adapters onto the clamp bed.
Select the PD 1” Adapter suited to your existing tool.
Place the adapter on the belt and cut each end of the belt
in turn using the adapter edge marked “Cutting”. This
ensures the correct tooth pitch. Take great care to ensure
that the cut is accurate and straight.
V Trim Knife Narrow Cat. #8153108
Utility Knife
25
