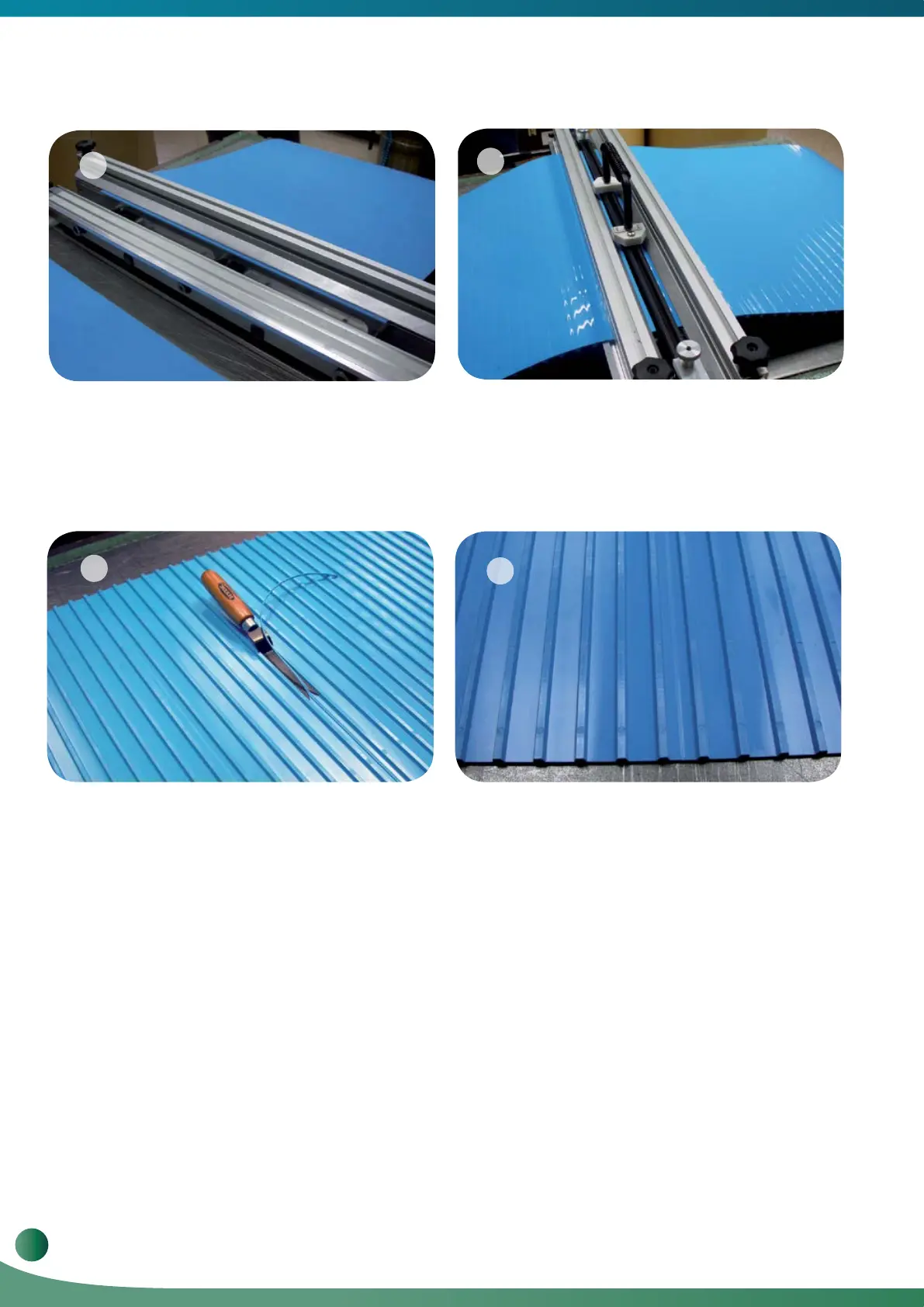

Trim the excess from both sides of the belt. Apply soapy
water for easier trimming.
Position the Adapters onto the Pliers with the narrow sides
facing inwards. Position both sides of the belt on the Pliers.
The belts’ teeth should face down and interlock with the
grooves of the adaptors, tighten the FBW Crossbars.
Position the FBW Welder in place. Apply consistent and gentle
pressure until the Stoppers do not allow you to continue.
Immediately open the Pliers. Weld the belt according to the
welding instructions in the FBW Manual.
Trim and check the weld. A good weld will be free of cracks
and defects. Pitch tolerance should be +0.8 mm, -0.8 mm.
