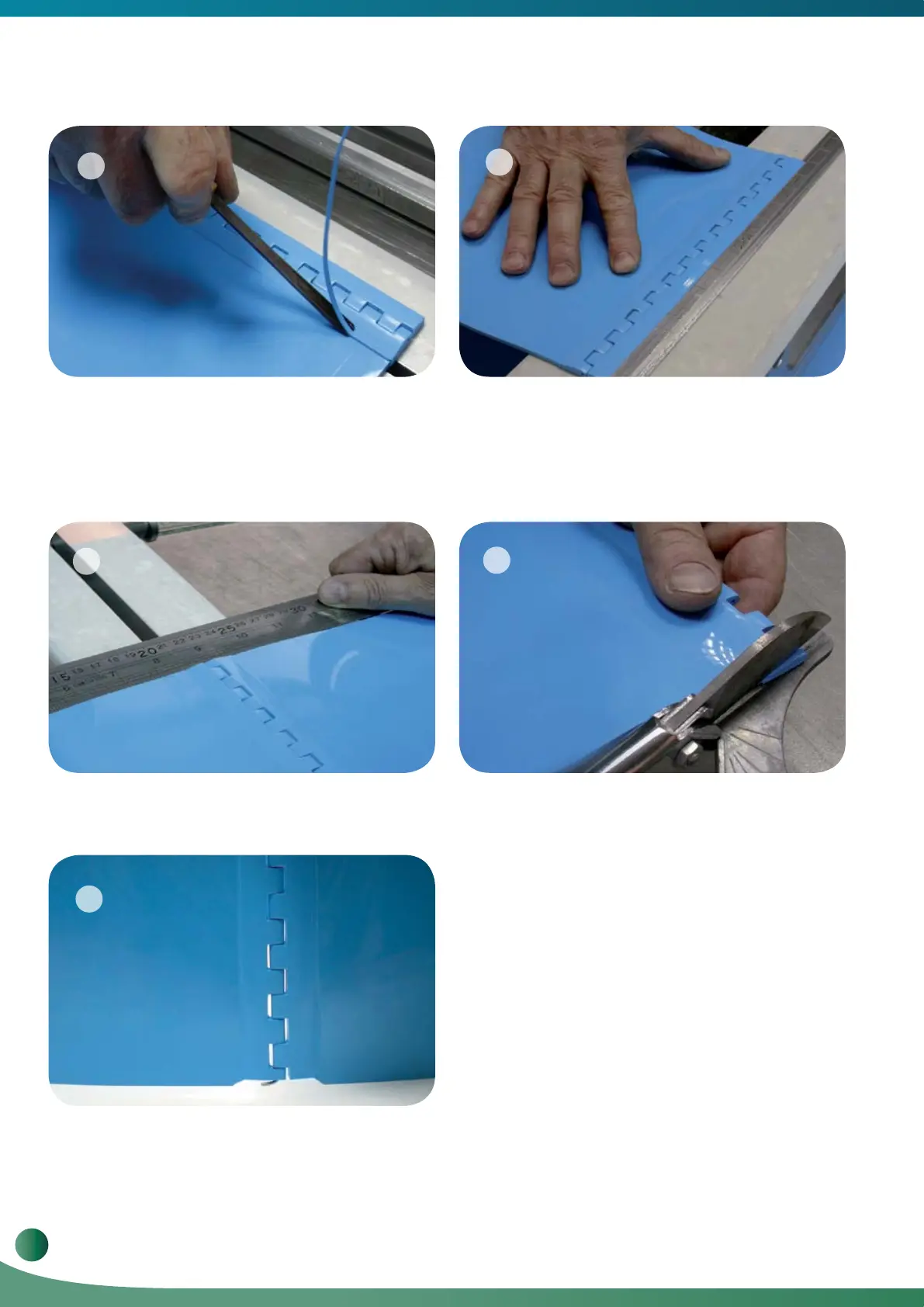

Heat a Round Chisel with the Leister Hot Air Gun and trim
the excess from the top of the belt, or apply some soapy
water for easier trimming. You may use a V-Knife or a
Lesiter Knife to trim the excess from the bottom of the belt.
Trim the lace approximately 5 mm from each side. Insert
a hinge pin into the slit and check its symmetry and
adequacy.
Make sure the lace and the belt are symmetrically aligned.
Belt with Volta Hinge Lace.
Repeat from Step 3 to weld the other end of the belt.
