4 Transportation and assembly
ENGLISH
DO_BA_2008_121LB_3ENG_BVo 22.2.10

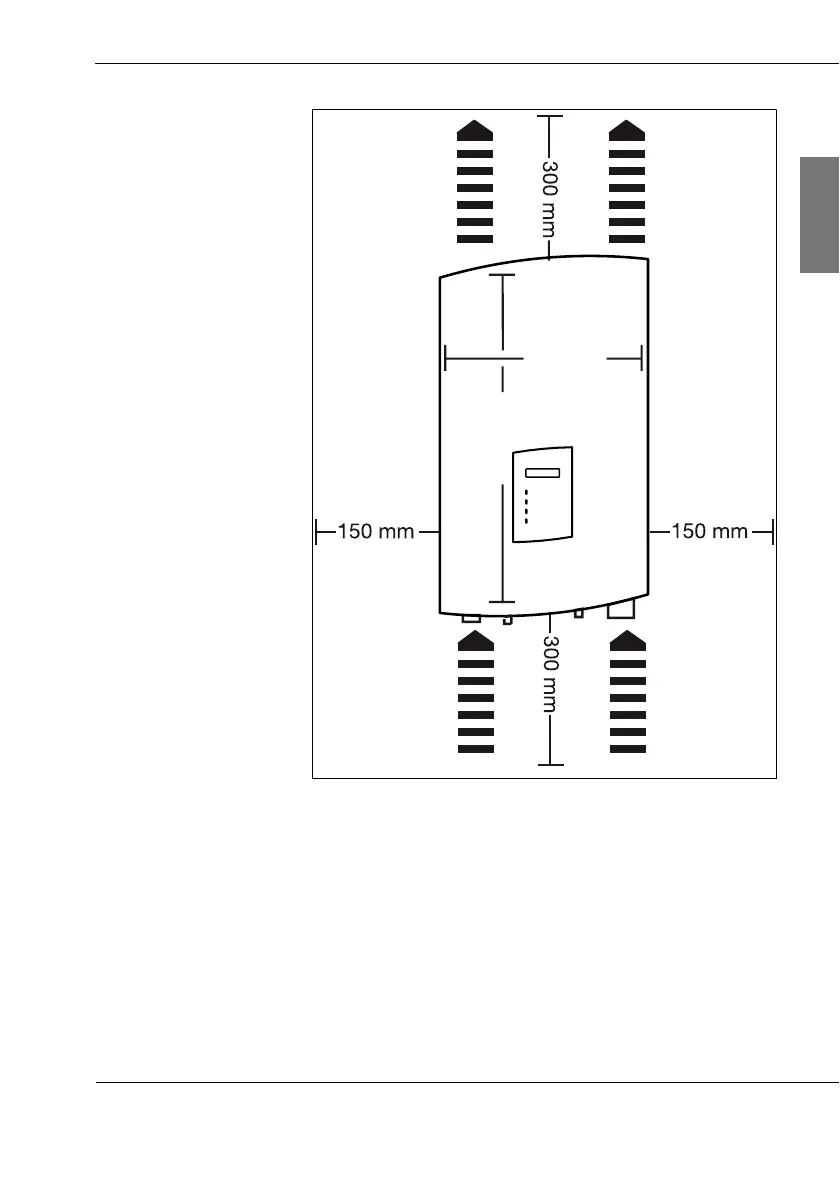

4.1: Necessary clearances for air circulation
Prerequisites for the ambient air to cool the inverter:
| Install the inverter upright.
|Do not install any equipment which generates warm
exhaust air above or below the inverter. Do not install string
inverters on top of each other.
| Do not cover the front panel of the inverter.
| When installing in a control cabinet, make sure there is
sufficient air circulation.
390 mm
675 mm
Hot
air
Cold
air
