32 Operating manual Voltwerk VS 3, 4, 5
5 Installation
ENGLISH
DO_BA_2008_121LB_3ENG_BVo 22.2.10

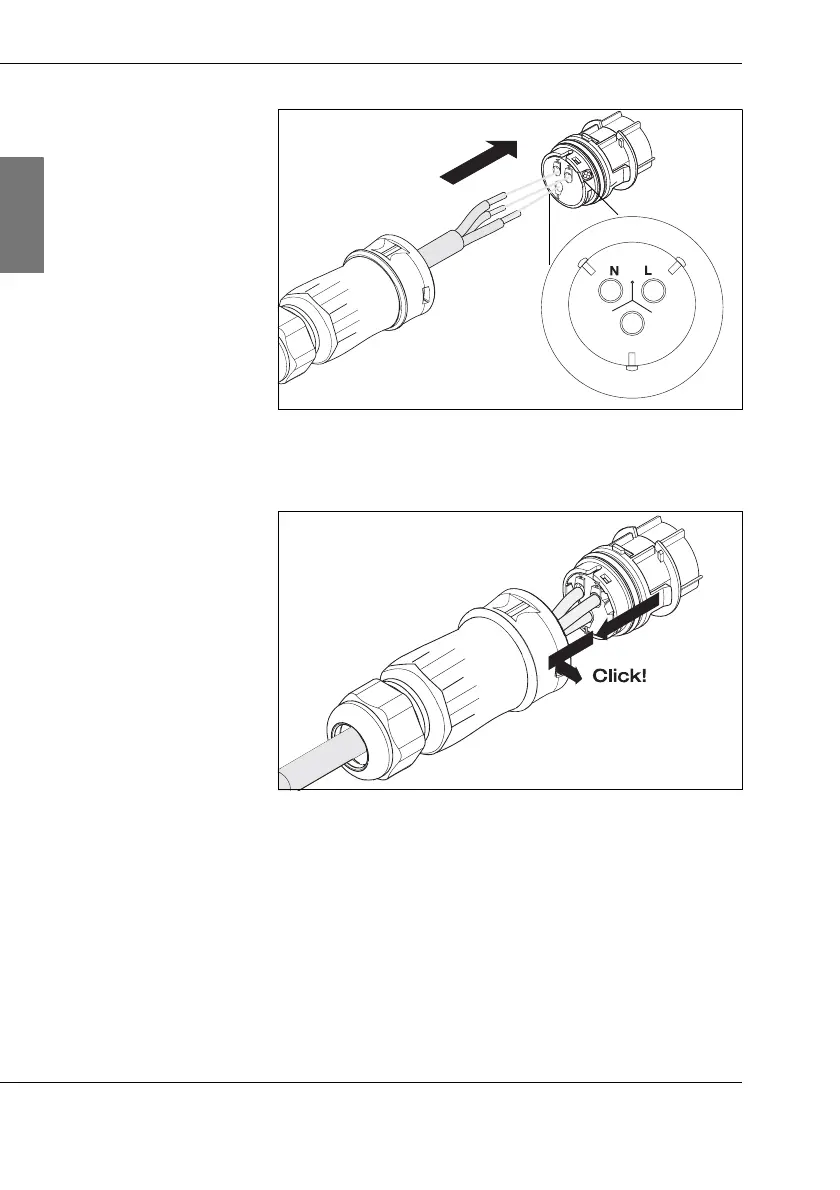

4. Connect the wires on end piece (2) and screw them in
(0.9 Nm).
5. Push the end piece (2) onto the plug housing (1). Make
sure that both locking units click in place. A double-
clicking noise confirms a correct connection.
6. Tighten the housing screws (3). The cable must be firmly
seated.
(2)
(1)
PE
(2)
(1)
(3)
