Voltwerk VS 3, 4, 5 Operating manual 35
5 Installation
ENGLISH
DO_BA_2008_121LB_3ENG_BVo 22.2.10

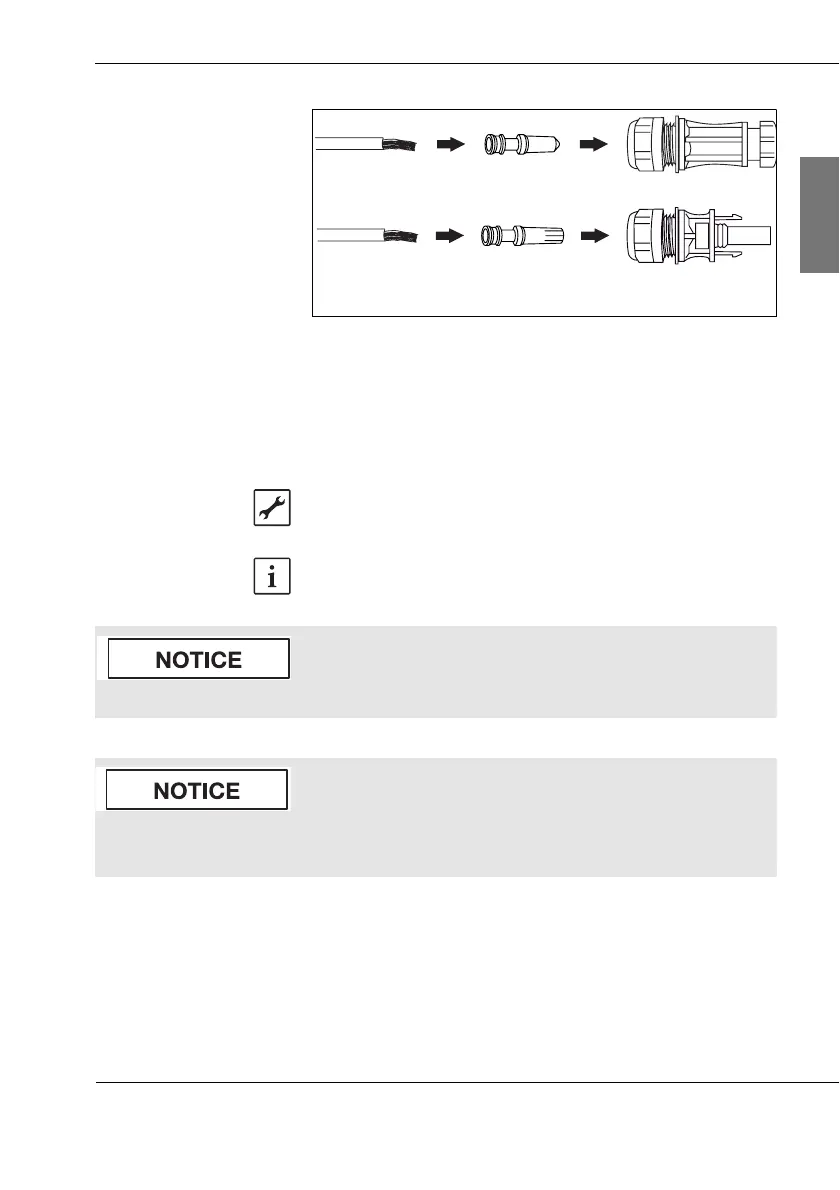

5.3: Wires with connector plug and socket
(1) Stripped, non-crimped cable
(2) Ferrule
(3) Connector plug
(4) Connector socket
2. Strip wires to 14 mm.
(–) (1) (2)
(–) (3)
(+) (1)
(2) (+) (4)
Crimping the cable
1. Strip the cable to 25 mm.
The connector plugs and sockets are MCIV compatible.
Material damage due to damaged wire strands
Damaged wire strands may break and heat up.
|Do not damage the wire strands.
Risk of damage from incorrect crimping die!
| Only use crimping die D made by Wieland (Article number
05. 502. 2300. 0).
