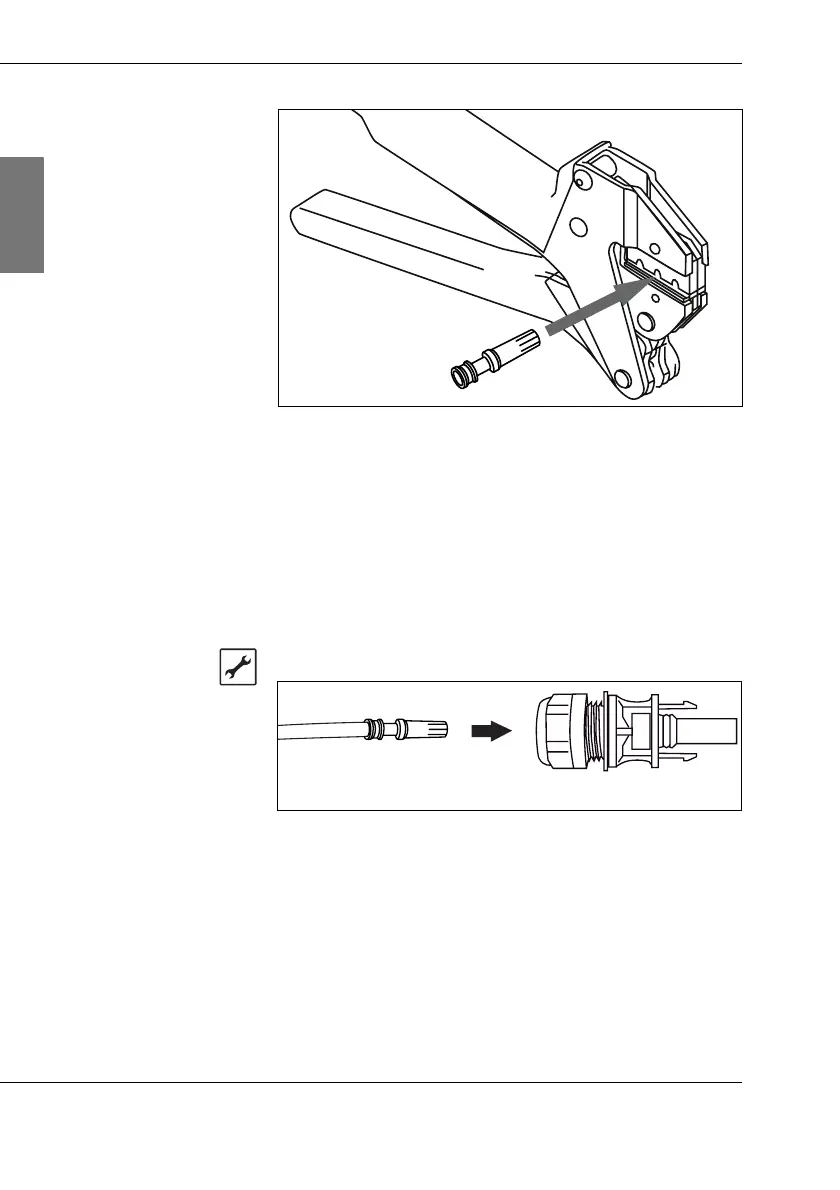

3. Place the contact socket (2) in the crimping die. Use the
positioning aid.
4. Guide the stripped wires into the contact socket.
5. Press the gripper together tightly.
6. Repeat the process for all wires.
Result The cable is crimped.
1. Push the connector plug (4) or connector socket (3) onto
the crimped cable (5). A clicking noise confirms a correct
connection.
(2)
Connecting the solar power system cable
(4)
(5)
