• Axle load indication
Loading exceeds the set limit value. When the first limit value is exceeded, the
menu item "Axle load" flashes in the display. When the second limit value is ex-
ceeded, the menu item "Axle load" and the warning LED flashes (only in the
case of 15) in the display.
• Tyre monitoring (IVTM only)
A tyre pressure is outside the permissible range.
• Vehicle inclination
The parameterised trailer inclination is exceeded.
• Messages
A connected system is currently sending a diagnostics message.
Diagnostic messages
The messages displayed in the menu "Messages" are represented as combina-
tions of numbers. These numbers can be translated into plain text by means of the
"Diagnostics messages" listed in the appendix.
The messages always consist of four elements:

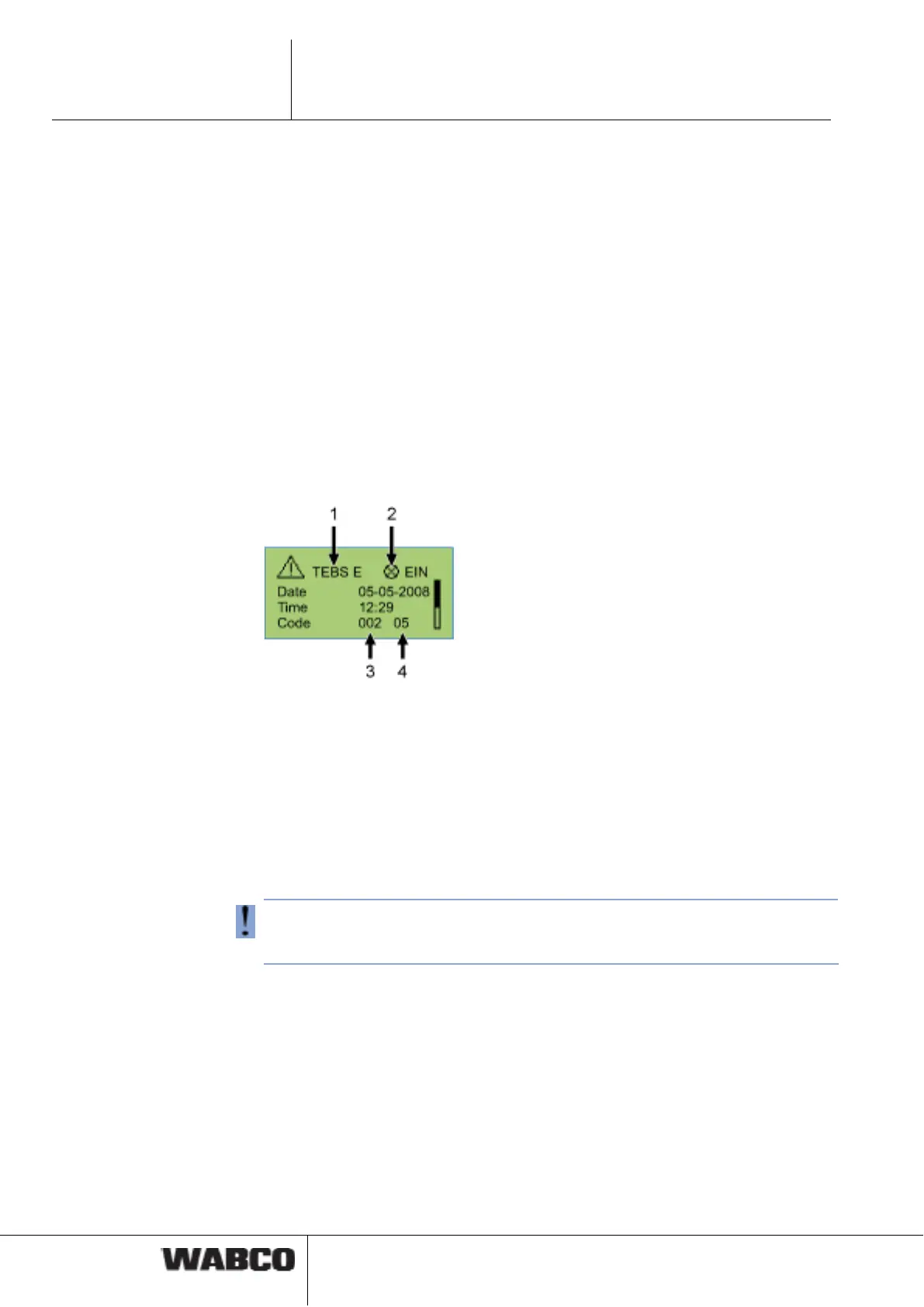

fig. 4-6: Example for the "Messages" menu
1 The system that triggered the message
2 Current message: yes/no
3 The component concerned
4 The type of fault
In the example shown above, a message with the following content is displayed:
"Fault 05 (fault type: "Supply line interrupted") has occurred at component 002
"Wheel sensor b“) of TEBS E.
If it is not possible to easily remedy the fault using your own resources, the vehicle
must be driven carefully to the workshop, or it must be repaired on the spot (e. g.
where there are acute tyre problems).
