SmartBoard
4
Operation and Functions
29

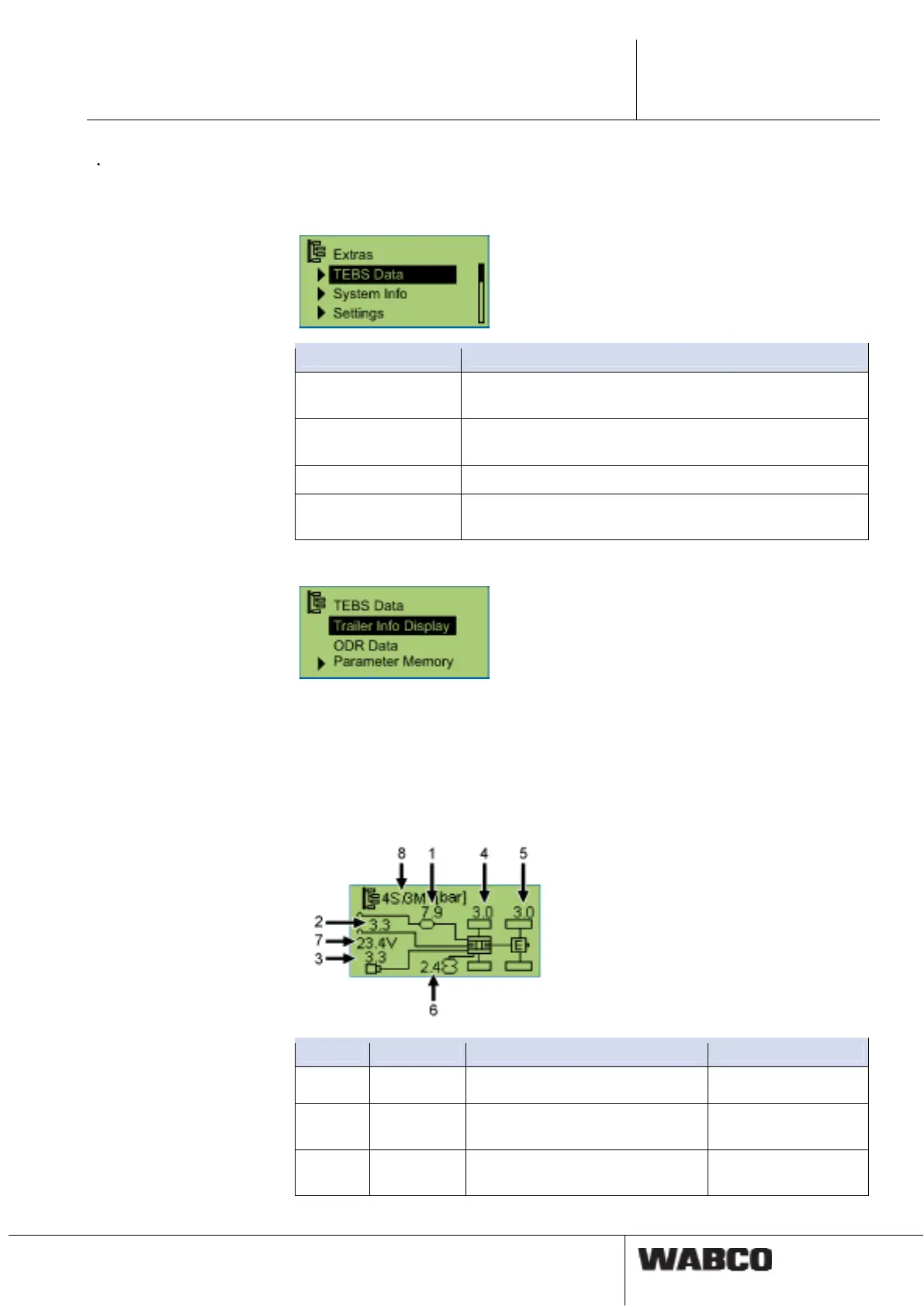

4.4.14 Tools
In this functional group it is possible to retrieve further data and to change the
SmartBoard settings.
Notation Description
TEBS data Service information and functions such as measured
values and ODR data.
System Info System information about the SmartBoard and available
systems.
Settings Adjusting the SmartBoard settings.
AutoConfig Automatic adjustment of the main menu to the system
configuration.
4.4.14.1 TEBS data
• Setting the sensors and modulators.
• Overview of data stored in the ODR.
• The information shown was continuously recorded since the Trailer EBS system
start-up and the data displayed may deviate from the data displayed in the EBS
PC diagnostics.
Trailer Info. display
Position Information Description Note
1 P_Supply Current supply pressure.
2 Pm_pneu Current pneumatic control pres-
sure.
Yellow hose coupling
3 Pm_CAN Current "electrical control pres-
sure" via CAN.
