System Description
11

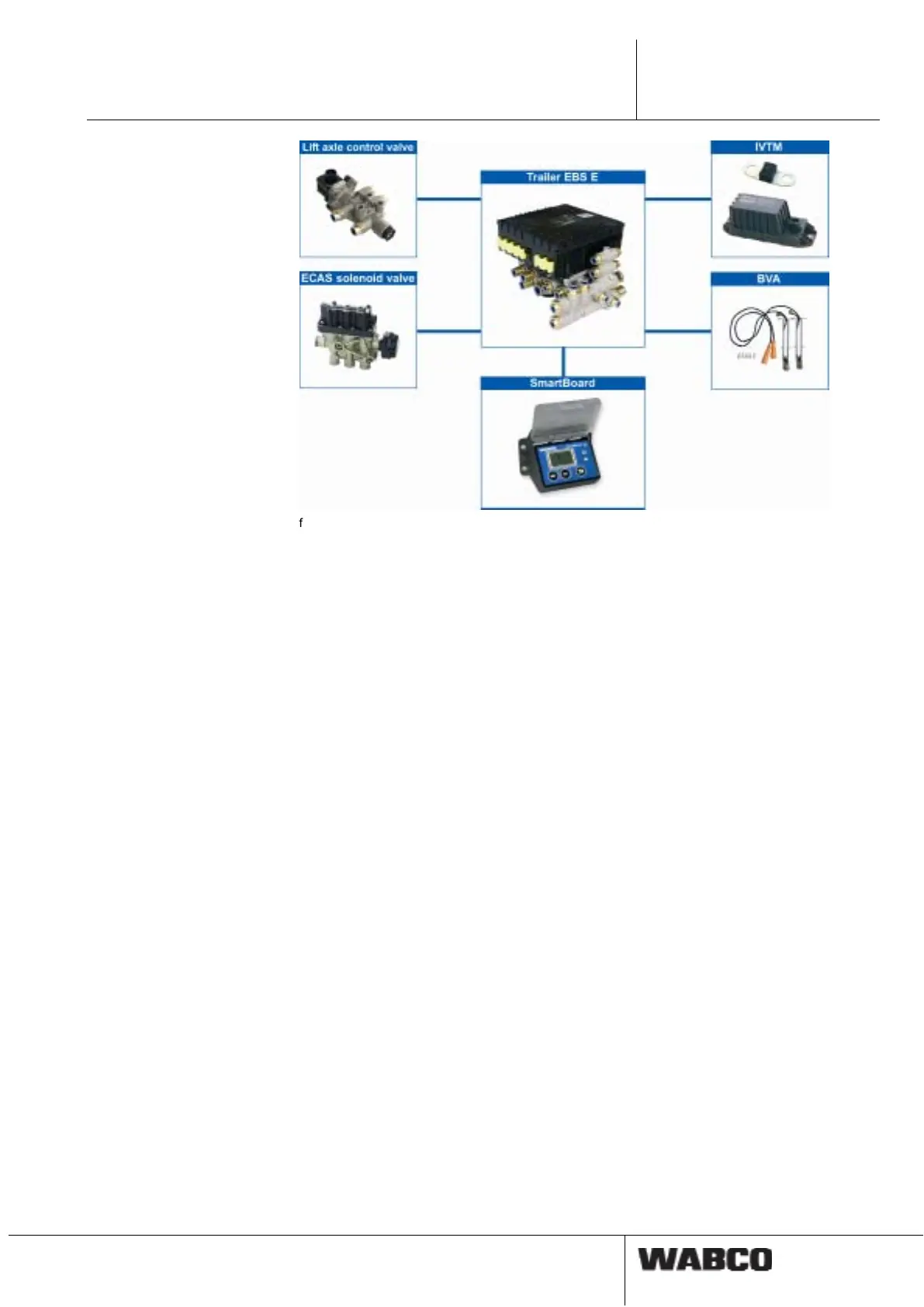

fig. 3-2: System configuration in combination with Trailer EBS E
3.2 System prerequisites
The SmartBoard is a device used for operating the Trailer EBS. The range of
SmartBoard functions therefore depends on the Trailer EBS version and on the in-
stalled components. The WABCO System BVA is required, i. e. for indicating the
brake pad wear. The SmartBoard detects the installed components automatically
and shows the available functions as menu symbols.
If the system or component from which information is to be retrieved or that is to be
controlled by the SmartBoard is not available, the corresponding menu item or
symbol is not displayed.
The SmartBoard is used in combination with the Trailer EBS D or E as of genera-
tion D Premium (480 102 014 0).
The software version of the SmartBoard is shown in the menu <Tools> <System
Info> <SmartBoard> (see page 32). A number of functions are not available in the
ADR version of the SmartBoard (see chapter 2.1 "SmartBoard for ADR (GGVS)
vehicles", page 9).
