SmartBoard
System Description
12

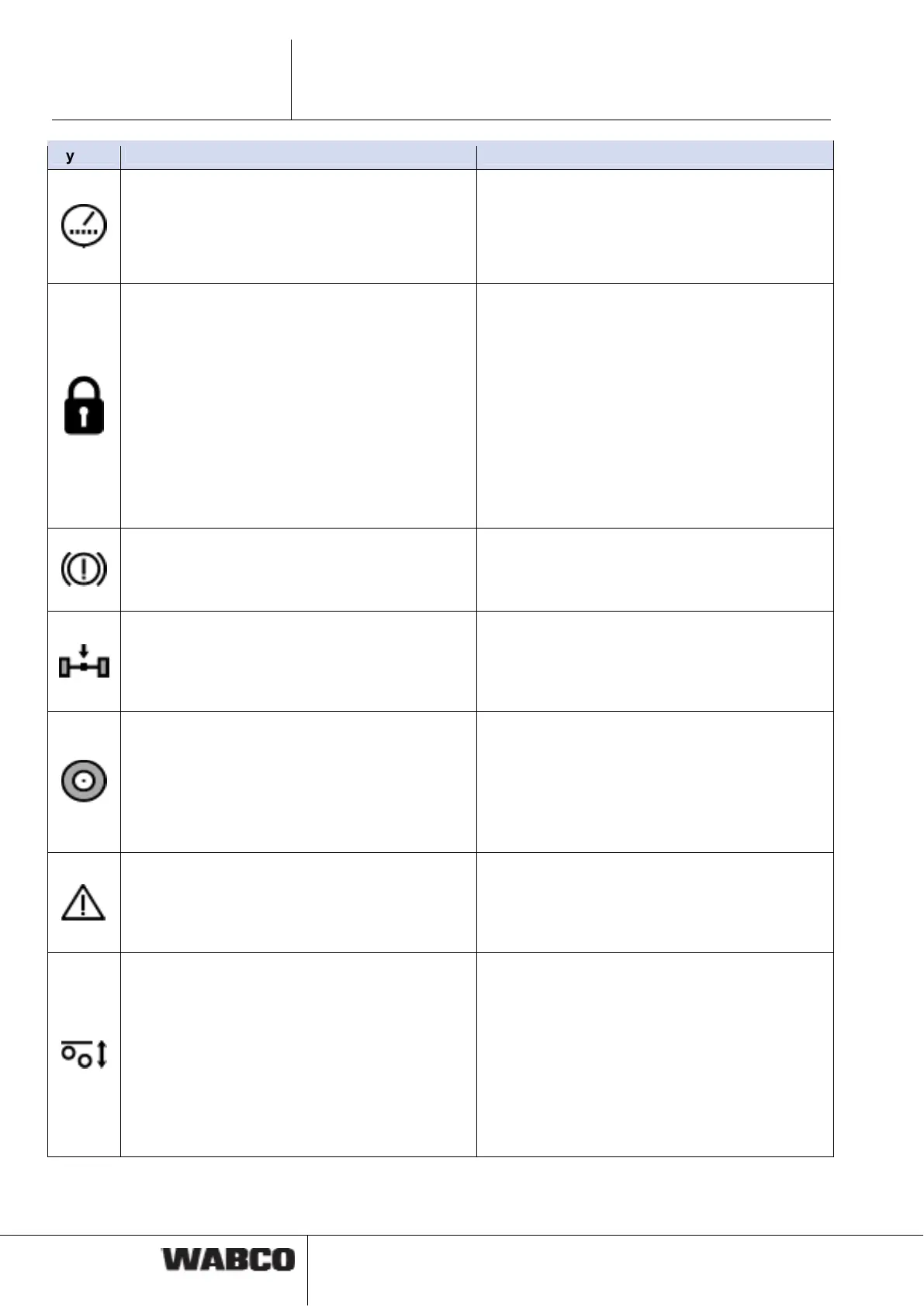

Symbol Function Components / Prerequisites
Odometer Status
Automatic display of odometer reading without
EBS connection (where the 7-pin ISO cable is not
plugged in), or with EBS connection for tamper-
proof total distance indication.
• SmartBoard as of software version SB010109
• If Trailer EBS D Premium is used, the internal
odometer of the SmartBoard can only be used
if an ABS sensor is also connected (see
page 42).
Immobilizer
The wheels of the parked tow vehicle can be
blocked with the immobilizer.
• SmartBoard as of software version
SB010309A
• Trailer EBS E Premium 480 102 06. 0 (as of
version E 1.5) and
• the function must be defined in the TEBS E
modulator
• pulse-controlled lift axle valve 463 084 100 0
• Tristop® cylinder
• PUK Access Code 813 000 049 3
• Immobilizer cannot be used if an ECAS dou-
ble-valve block is installed.
Brake wear
BVA – Status display for the brake linings – as-
sists safe operation and prevents costly repairs.
• SmartBoard as of software version SB010109
• Trailer EBS E
• Brake pad wear indicator WABCO BVA
Loading
The axle load display shows axle loads and any
overloading for efficient utilisation and safe opera-
tion.
• SmartBoard as of software version SB010109
• Trailer EBS E
• for drawbar trailers: second external bellows
pressure sensor
Tyre pressure
Detailed tyre information such as current tyre
pressure and nominal pressure (in combination
with WABCO IVTM).
• SmartBoard as of software version SB010109
• Trailer EBS E
• the function must be defined in the TEBS E
modulator
• Tire pressure monitoring system WABCO
IVTM
Diagnostic memory
Diagnostics and system messages provide impor-
tant information on the status of the installed
WABCO systems without having to take the vehi-
cle to the workshop.
• SmartBoard as of software version SB010109
Air suspension
Operating status of the air suspension – e.g. lifting
and lowering of the vehicle body and the lifting
axle
Controller for manoeuvring aid OptiTurn™ and
drawbar load reduction OptiLoad™.
The menu symbol is greyed out with Ignition OFF.
• Trailer EBS E with integrated electronic air
suspension / lift axle controller
OptiTurn™, OptiLoad™:
• SmartBoard as of software version
SB010207A
• Trailer EBS E1 as of software version
TE14013
• the function must be defined in the TEBS E1
modulator
