SmartBoard
3
System Description
13

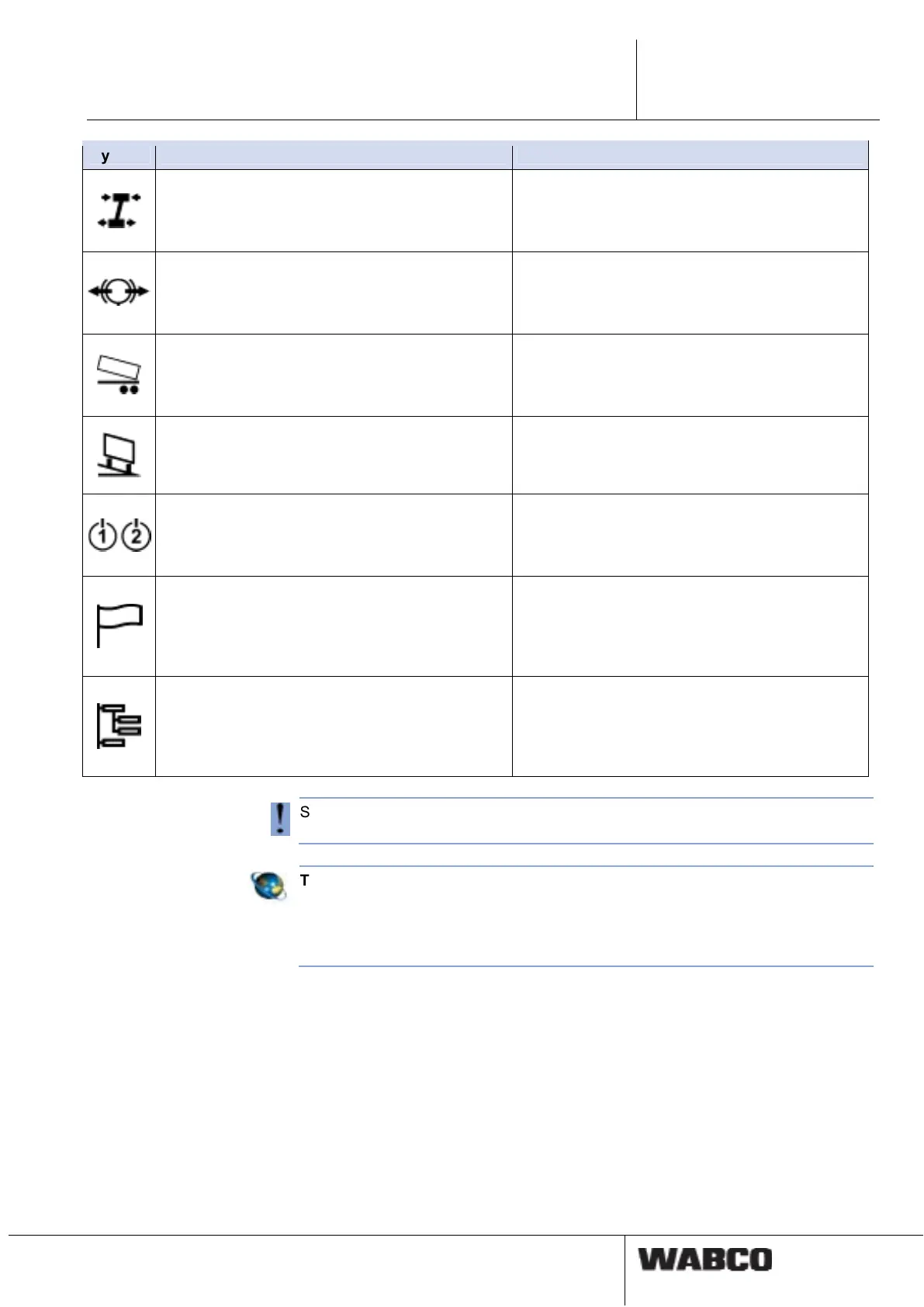

Symbol Function Components / Prerequisites
Relaxation function
The relaxation function prevents the chassis from
suddenly springing up, a behaviour that can be
caused by tensions in the trailer during unloading.
• SmartBoard as of software version
SB010207A
• Trailer EBS E (as of version E1)
Brake release function
The brake release function can be used to release
the service brake in the trailer while the vehicle is
at a standstill.
• SmartBoard as of software version
SB010207A
• Trailer EBS E (as of version E1)
Road Finisher Brake
The road finisher brake is used for targeted brak-
ing of tipper trailers when used ahead of road
finishers.
• SmartBoard as of software version SB010109
• Trailer EBS E (as of version E1)
Vehicle inclination
This function can monitor the inclination of the
trailer.
• SmartBoard as of software version
SB010207A
• Trailer EBS E (as of version E1)
GIO function 1 / 2
The freely configurable GIO functions can be
used to set GIO functions on the Trailer EBS
Modulator.
• SmartBoard as of software version SB010109
• Trailer EBS E (as of version E1)
Language
Easy switching between 8 or 9 languages means
the SmartBoard can be used in many countries.
The available languages depend on whether the
language package (A or B) is installed.
Tools
Many other functions such as the displaying of
system data and Operating Data Recorder (ODR)
data, support for TEBS modulator replacement, as
well as SmartBoard settings.
Since the display may be illegible under –20° C, WABCO recommends using the
SmartBoard only in regions with temperatures ranging above –20° C.
Trailer EBS E system description
Open the WABCO website www.wabco-auto.com.
Click on Product Catalogue INFORM => Index.
Enter Trailer EBS E into the search field.
Click the Start button.
