Wacker Neuson RTLx-SC3 - Hydraulic Manifold

Troubleshooting
Hydraulic Manifold 8.3
79
[en-US] | 09/2022 | 5100061327 | RTLx-SC3 | Operator’s Manual
8.3 Hydraulic Manifold
1 2
3
4 5
6
7
8 9
10 11 12
13
14
15

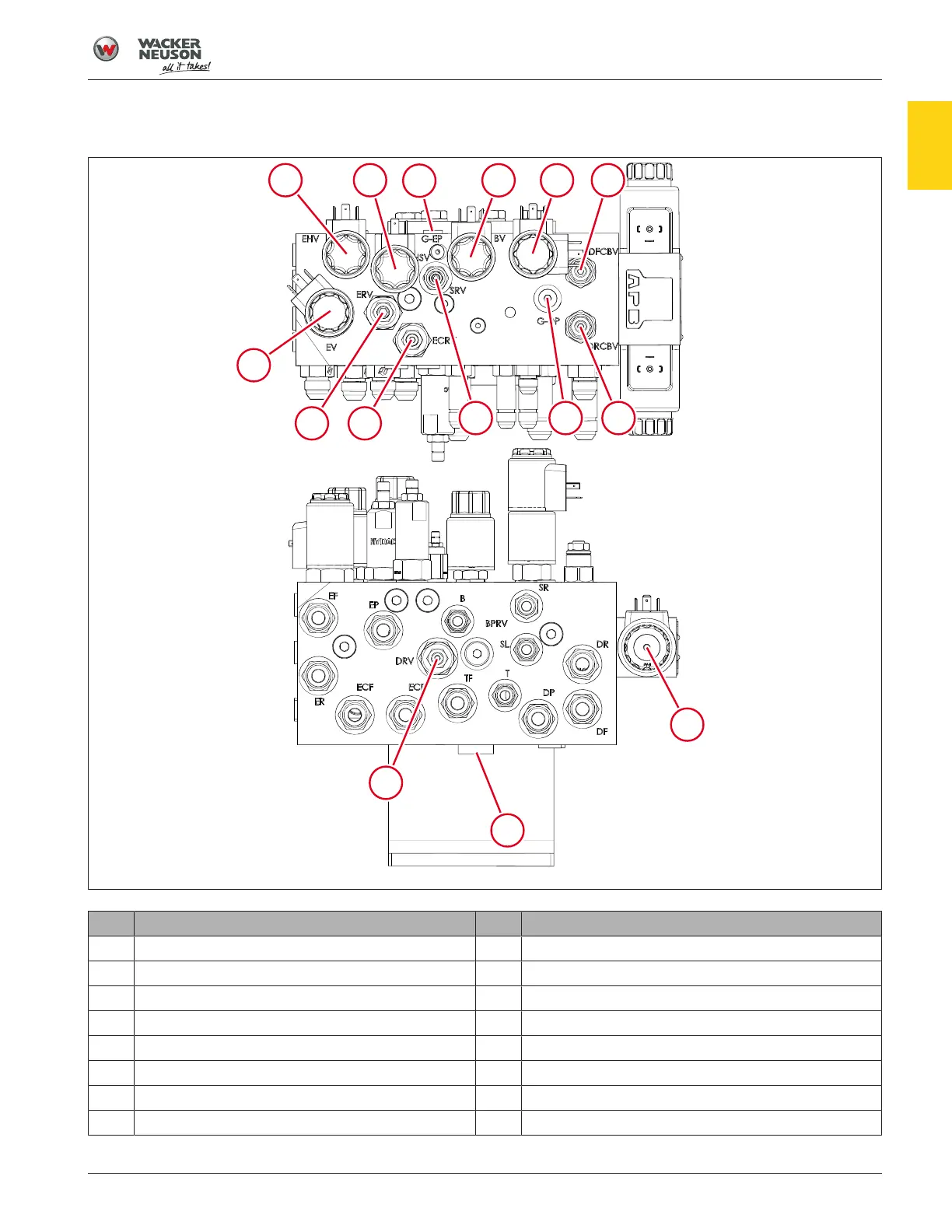

Fig.46: Hydraulic manifold
Ref Description Ref Description
1 Exciter high valve 9 Exciter central relief valve
2 High speed travel valve 10 Steering relief valve
3 Exciter test port location 11 Drive test port location
4 Brake valve 12 Drive rear counterbalance valve
5 Steering valve 13 Drive relief valve
6 Drive front counterbalance valve 14 Steering bypass valve
7 Exciter low valve 15 Drive valve
8 Exciter relief valve — —
