WAGNER EPG S2 - Type with Ultrasonic Screening Unit; Installation Dimensions for Ultrasonic Screening Unit

23
EPG S2
4
1
5
3
2
3
2
4
1
P_01508
5
OPERATING MANUAL
VERSION 09/2017 ORDER NUMBER DOC2317574

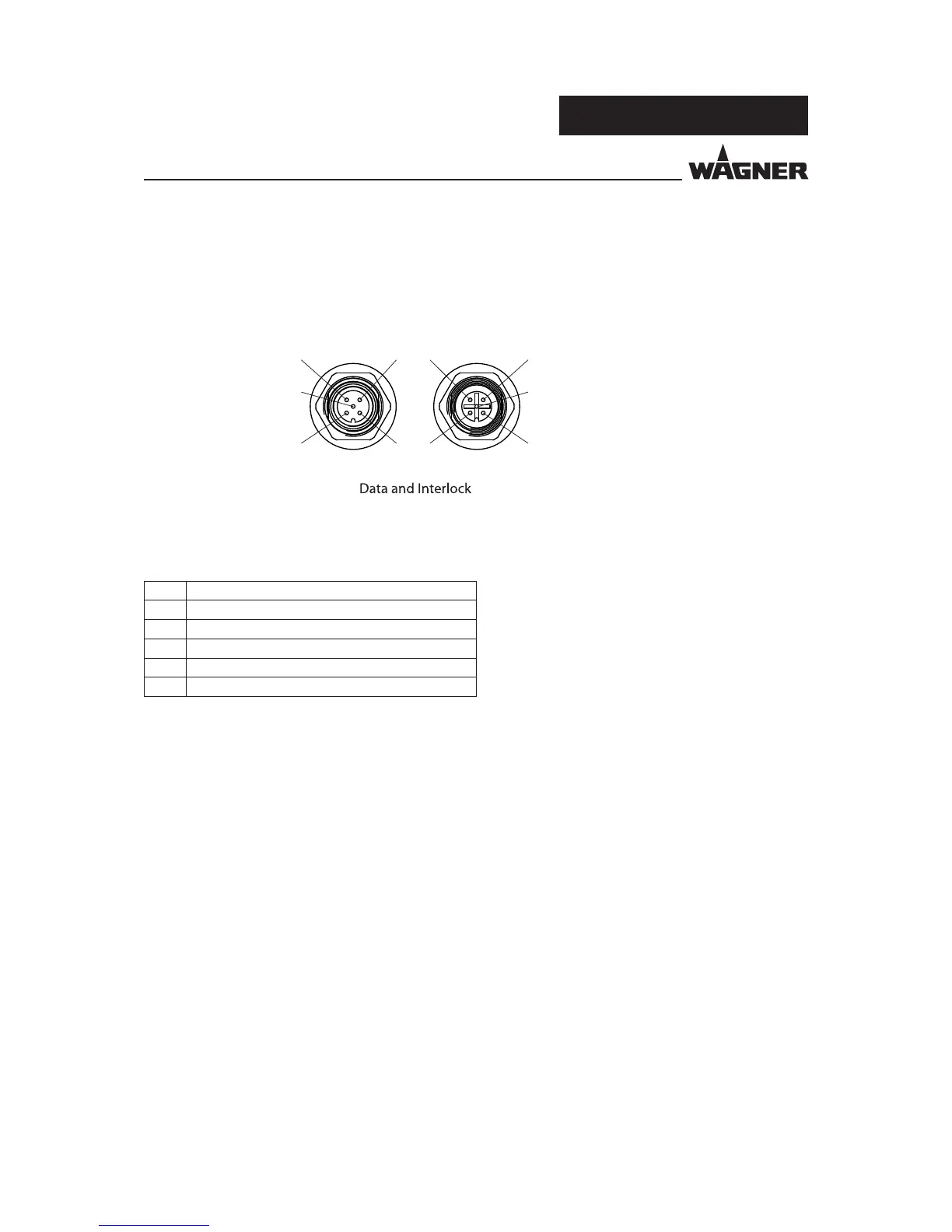

5.5.4 CAN BUS CONNECTION ON THE REAR SIDE
Connector plug Equipment socket
5-pin plug M12, A coded
No. Signal
1 Shield/housing
2 +24 VDC release
3 GND
4 CAN_H
5 CAN_L
IN OUTCAN bus
Data and interlock
