7.6 DIAGNOSIS AND MONITORING
7.6.1 LED DISPLAYS

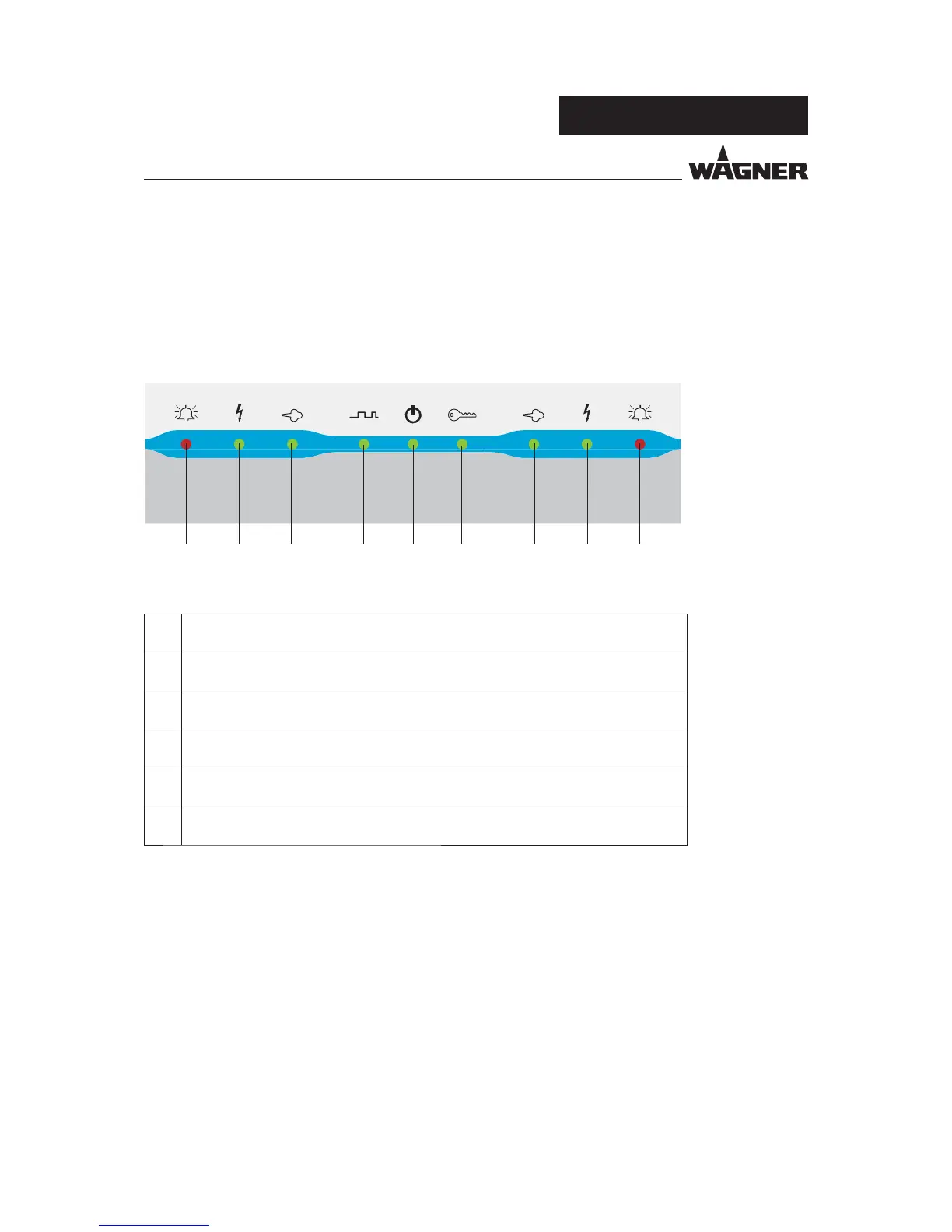

9 colored LEDs show various states, activities and malfunctions.
1 LED Power
– Lights up green as soon as the device is switched on
2 LED CAN
– Lights up green during the data communication with the master controller
3 LED Release
– Lights up green when the 24 V release is present
4 LED air ON (gun A/gun B)
– Lights up green when the air controller works
5 LED high voltage ON (gun A/gun B)
– Lights up green when high voltage is switched on
6 LED malfunction
– Lights up red when an error has occurred
