WAGNER EPG S2 Translation Of The Original Operating Manual

40
EPG S2
1 2 3 4
1 2 3 4
P_01507
OPERATING MANUAL
VERSION 09/2017 ORDER NUMBER DOC2317574
7.7 EMERGENCY OPERATION
The EPG S2 has a simple emergency mode. The aim of the emergency mode is to permit
minimal further work should the CAN bus or superordinate controller fail.
The emergency mode parameters must be set before the CAN bus fails, otherwise emergency
mode does not function.
7.7.1 ACTIVATION OF EMERGENCY MODE

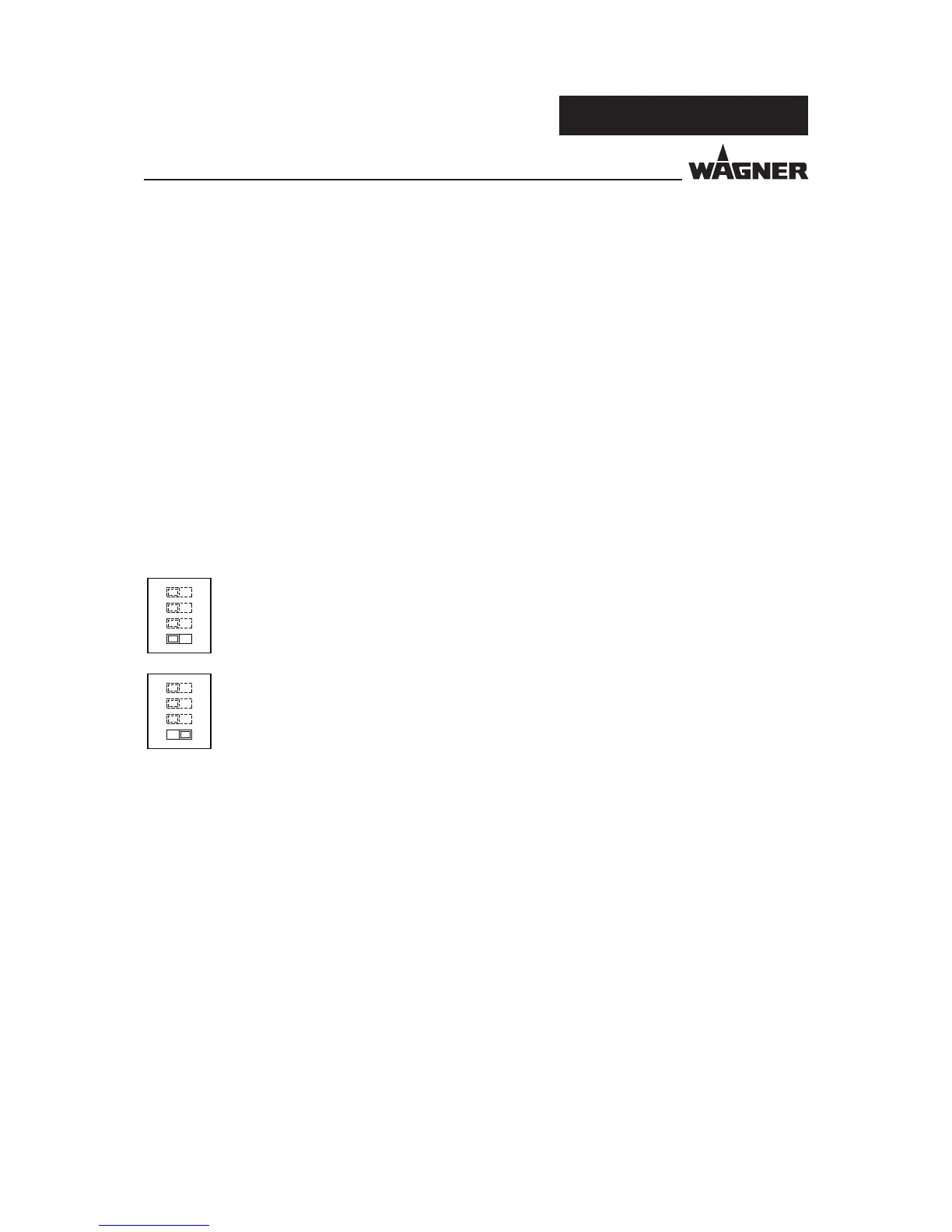

In order to activate emergency mode, the DIP switch 4 must be set to "ON" (see  gure below).
The switch status is only read in when the device is switched on (powered up). So  rst set the
switch and then restart the device.
Emergency mode deactivated
Emergency mode activated
7.7.2 FUNCTIONING OF THE EMERGENCY MODE
The coating system is activated and deactivated using the release hardware line. If the
release is present, the coating system is activated. Unless the set points in the emergency
mode parameter set are set to "0", both guns are always activated.
When emergency mode is activated, the power LED  ashes and the CAN LED remains dark.
In addition to emergency mode activation, an error reset is performed for every positive
 ank of the release signal.
The device's CAN transceiver is switched o . This means that the device cannot send or
receive messages.
