Operating manual Manual system SPRINT 2
5 Description
Order number 2467031 | Edition 04/2024 17
5 DESCRIPTION
5.1 CONSTRUCTION AND MODE OF OPERATION

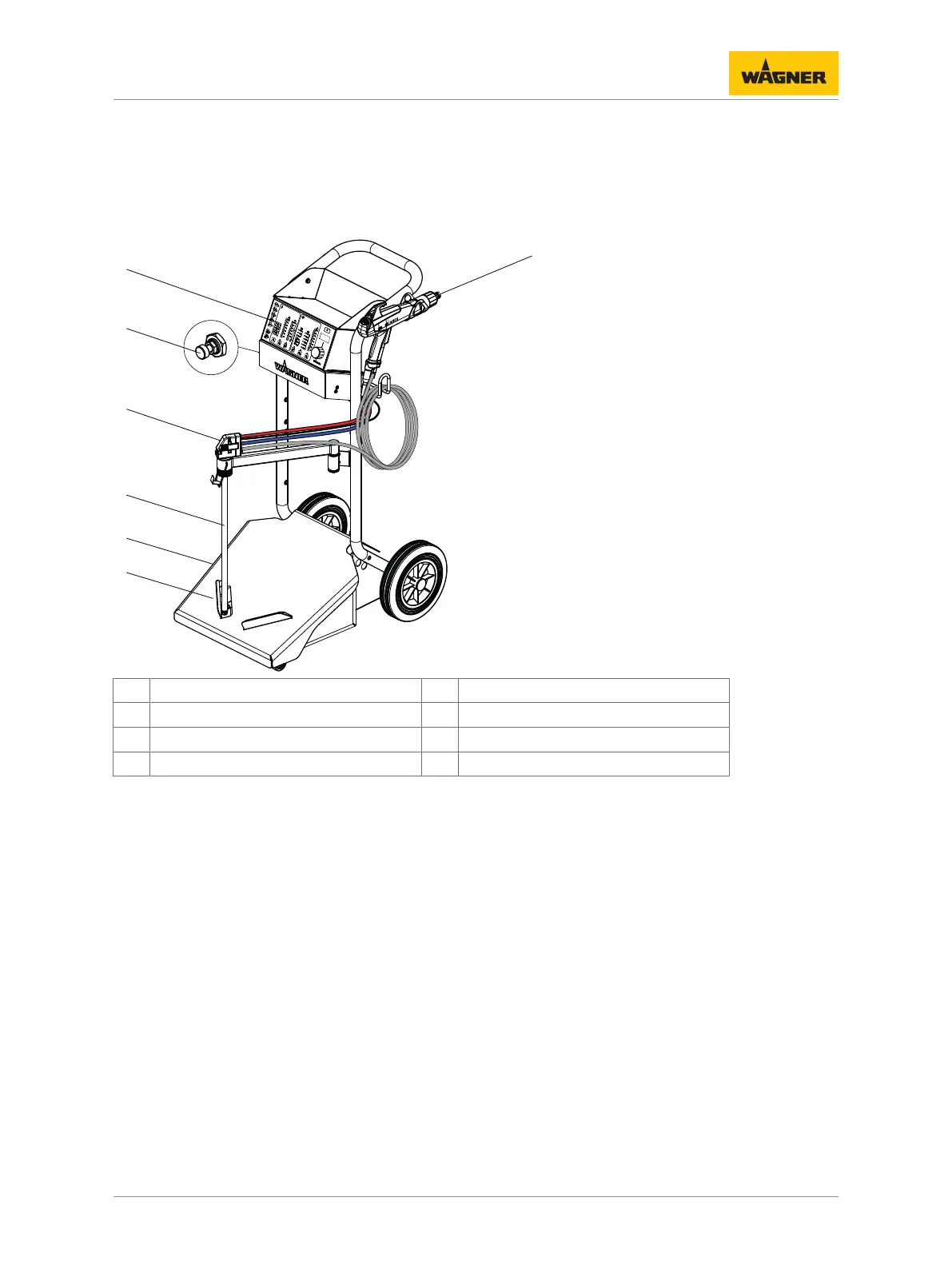

5.1.1 Sprint 2 B
5
4
1
3
7
2
6
P_05969
1 PEM-X1 manual gun 5 Quick-Link powder injector, AF
2 Vibration table 6 Fluid air throttle
3 Mobile base 7 WACON Sprint 2 XE control unit
4 Suction lance
Mode of operation:
The suction lance 4 is inserted directly into the original tank. The powder is fed through the
powder injector (5) to the powder spray gun (1). Due to the special arrangement of the
suction
crown and the vibration of the tank, a homogeneous powder/air mixture is generated and
maintained during the entire duration of the powder removal. The powder quantity and the
electrostatic charge of the paint powder are regulated by the control unit (7). The fluid air setting
is done using the throttle (6).
