Operating manual Manual system SPRINT 2
6 Assembly and commissioning
Order number 2467031 | Edition 04/2024 23
6. Set up mobile base.
7. Swivel in storage tray (3) (Detail A).
8. Swivel in mounting bracket (4) for the control unit (Detail A) and tighten hexagon
screws (5) (Detail B).
9. Vertically align filter separator (6) (Detail A).
6.4.2 Connecting the manual system
The assembly of the manual system is the same for the Corona spray gun and for the Tribo
spray gun.
The manual system is equipped with a filter separator as a standard feature. Nevertheless, a
high compressed air quality is still required for safe operation of the system. The plant
operator is responsible for ensuring the required compressed air quality.
6.4.2.1 Connection requirements
DANGER
Danger from electric current!
Danger to life and equipment damage.
4 Switch off the main switch before connecting the system.
NOTICE
Missing cover
IP Code of device not guaranteed.
4 The mains output socket must remain closed in manual systems without vibrator
motor with the cover closed.

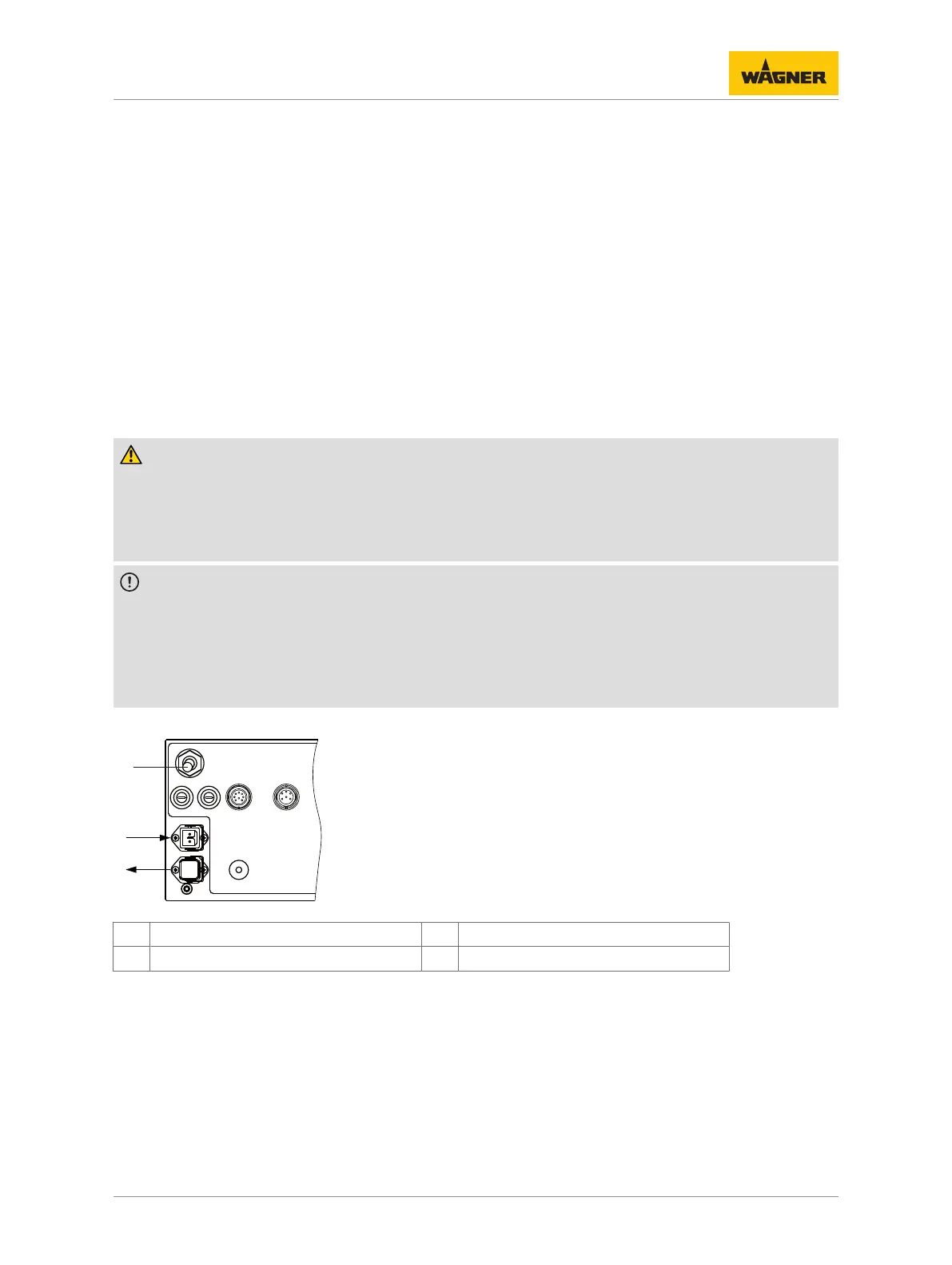

Without vibrator motor:
0
I
P_02717
1
2
3
1 Main switch 3 Mains output terminal, attach cover
2 Mains input terminal
With vibrator motor:
