WAGNER SPRINT 2 - Sprint 2 H (Without Vibrator Table); Operating Modes

Operating manual Manual system SPRINT 2
5 Description
18 Order number 2467031 | Edition 04/2024
5.1.2 Sprint 2 H (without vibrator table)
P_05970
4
3
1
6
2
5

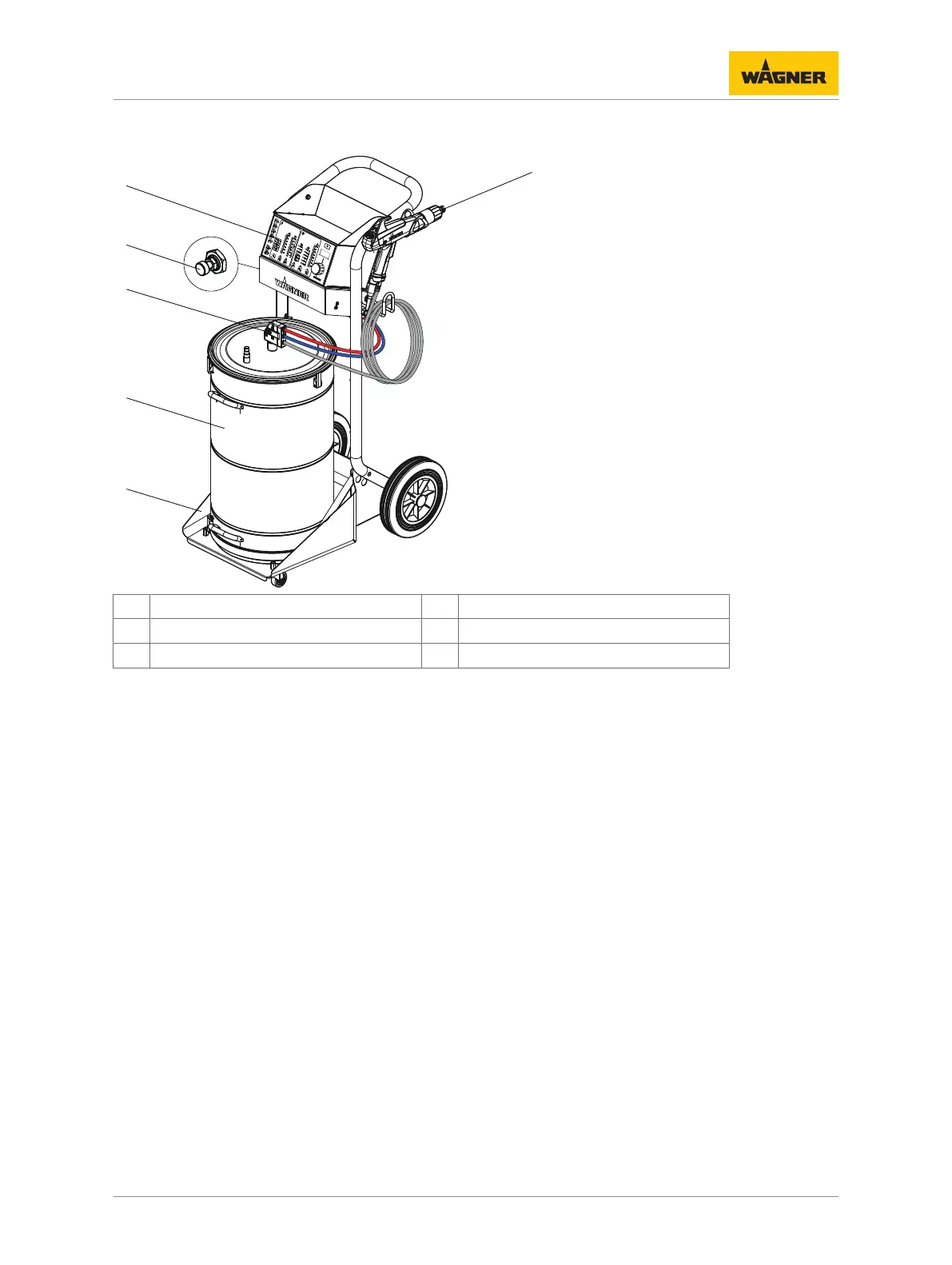

1 PEM-X1 manual gun 4 Quick-Link powder injector, 60 L
2 Mobile base 5 Fluid air throttle
3 60 L tank 6 WACON Sprint 2 XE control unit
Mode of operation:
Through the powder injector 4, the powder is transported from the tank 3 to the spray gun 1.
By feeding fluid air into the fluid base of the powder tank (3), a homogeneous powder/air
mixture is generated and maintained during the entire process of the powder removal from
the tank. The powder quantity and the electrostatic charge of the paint powder are regulated
by the control unit (6). The fluid air setting is done using the throttle (5).
5.1.3 Operating modes
5.1.3.1 Operation with Tribo gun
When operating the manual system with a Tribo gun, the set values (total air volume, feed air
volume, Tribo air volume) in recipes 1–4 must be adjusted. The setting of the values is
described in the operating manual of the WACON Sprint 2 control unit.
The set values for operating with the Tribo gun should be saved to individually selected
recipe locations.
When operating with a Tribo gun, parameter C11 on the WACON Sprint 2 control unit must
be changed to Tribo (Please refer to the control unit operating manual for the procedure).
