4. If necessary, remove and replace the collector nozzle (2) and the air nozzle (5).
The
wearing and spare parts are listed in the corresponding chapter of the powder
injector's operating manual.
5. Pull feed unit out of the holder arm.
6. Blow out the suction tube of the feed unit thoroughly and rub it clean with a dry cloth.
7. Check whether the fluid disk (6) on the bottom of the feed unit is blocked and replace if
necessary.
8.3.2 Sprint 2 H version (60 L tank)
1. Perform cleaning in accordance with chapter Interrupting the coating process of Sprint 2 H
(60 L tank) [841].
7
6
8
4
1
2
3
5

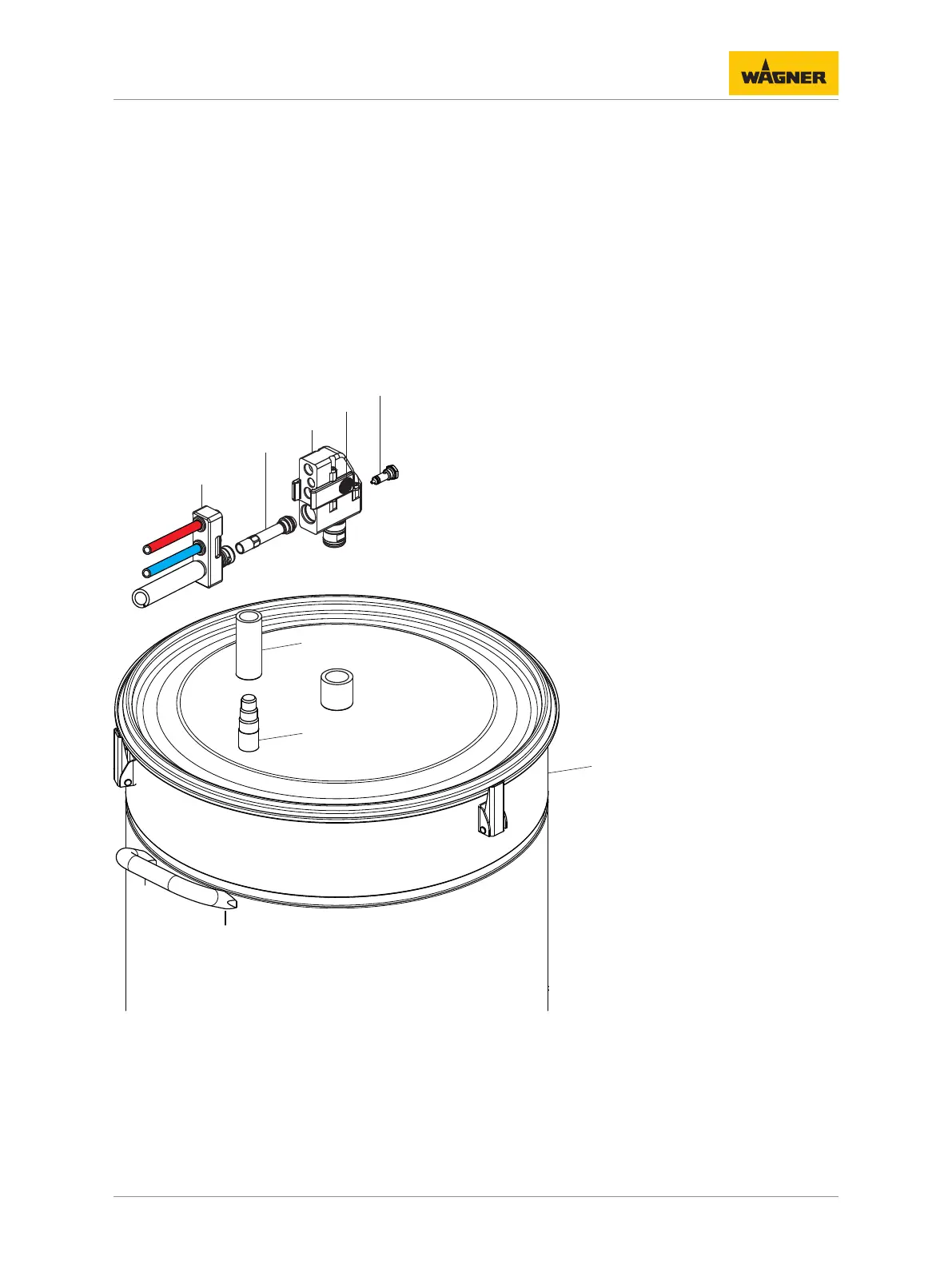

P_06031
2. Press the catches (4) together at the corrugated surfaces and pull the hose connection
part (3) off the injector housing (6) towards the front.
3. Thoroughly blow out all parts with compressed air.
4. Check powder injector for wear and replace worn parts if necessary. The wearing and
spare parts are listed in the corresponding chapter of the powder injector's operating
manual.
5. Loosen the exhaust air hose6 from the connection7 of the powder tank8.
