WAGNER SPRINT 2 - 25 L Tank

Operating manual Manual system SPRINT 2
13 Spare parts
58 Order number 2467031 | Edition 04/2024

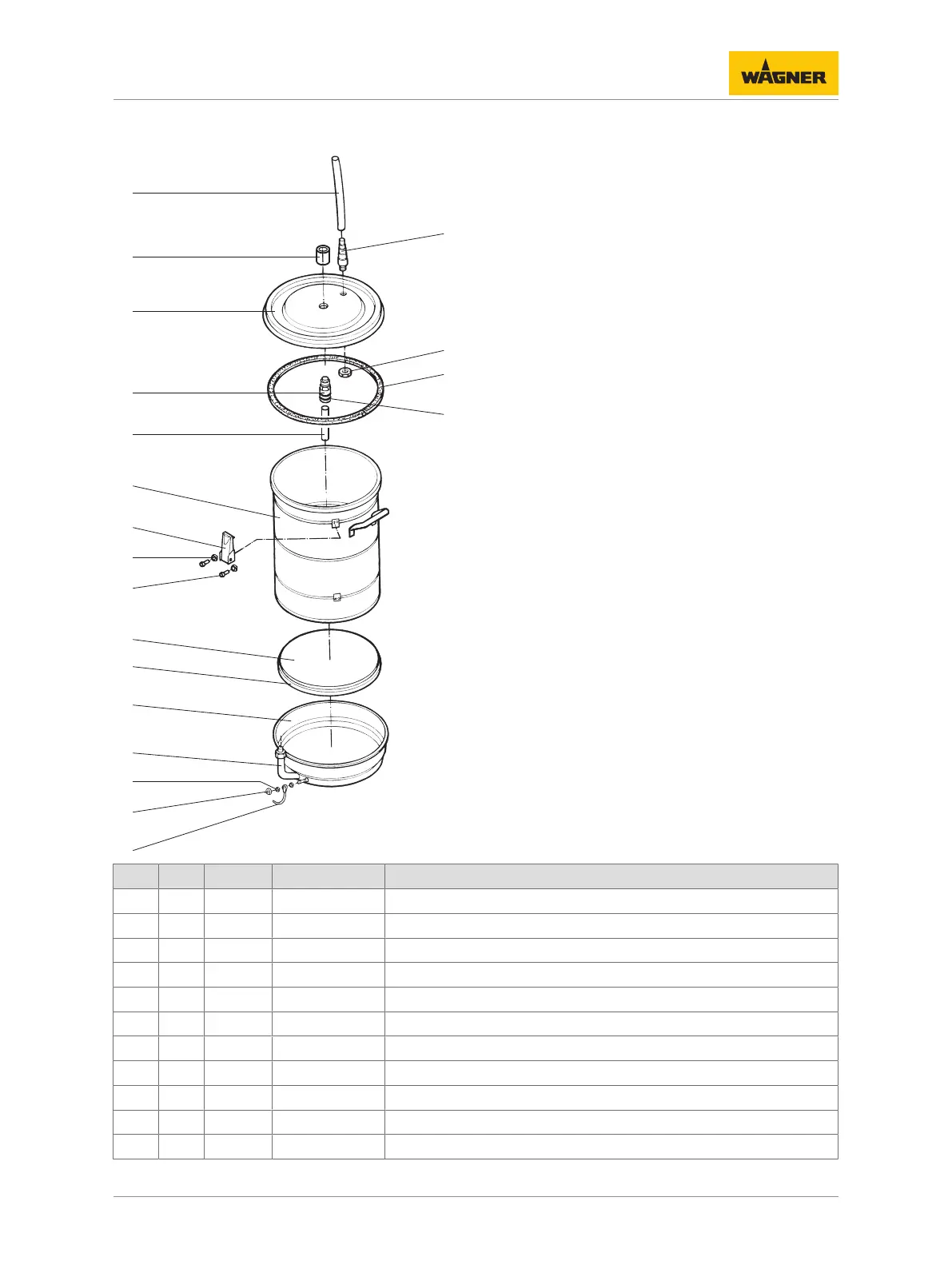

13.8 60 L/25 L TANK
13
11
3
19
20
1
6
7
17
4
21
2
8
14
15
16
9
5
10
P_01156
24
Pos K Stk Order no. Designation
1 1 264268 Powder tank, 60 L
1 1 264224 Powder tank, 25 L
2 1 264215 Base housing
3 1 264381 Cover
4 ♦ 1 264382 Fluid bed
5 ♦ 1.10 m 9971527 Foam rubber seal
6 6 9994703 Spring clip
7 12 9900717 Socket cap screw
8 1 9992270 Quick coupling for screw-on connector
9 1 184336 Hose fitting
10 1 9910109 Hexagon nut
