Operating manual Manual system SPRINT 2
6 Assembly and commissioning
24 Order number 2467031 | Edition 04/2024
P_02638
1
0
I
2
3
1 Main switch 3 Output to vibrator motor
2 Mains input terminal

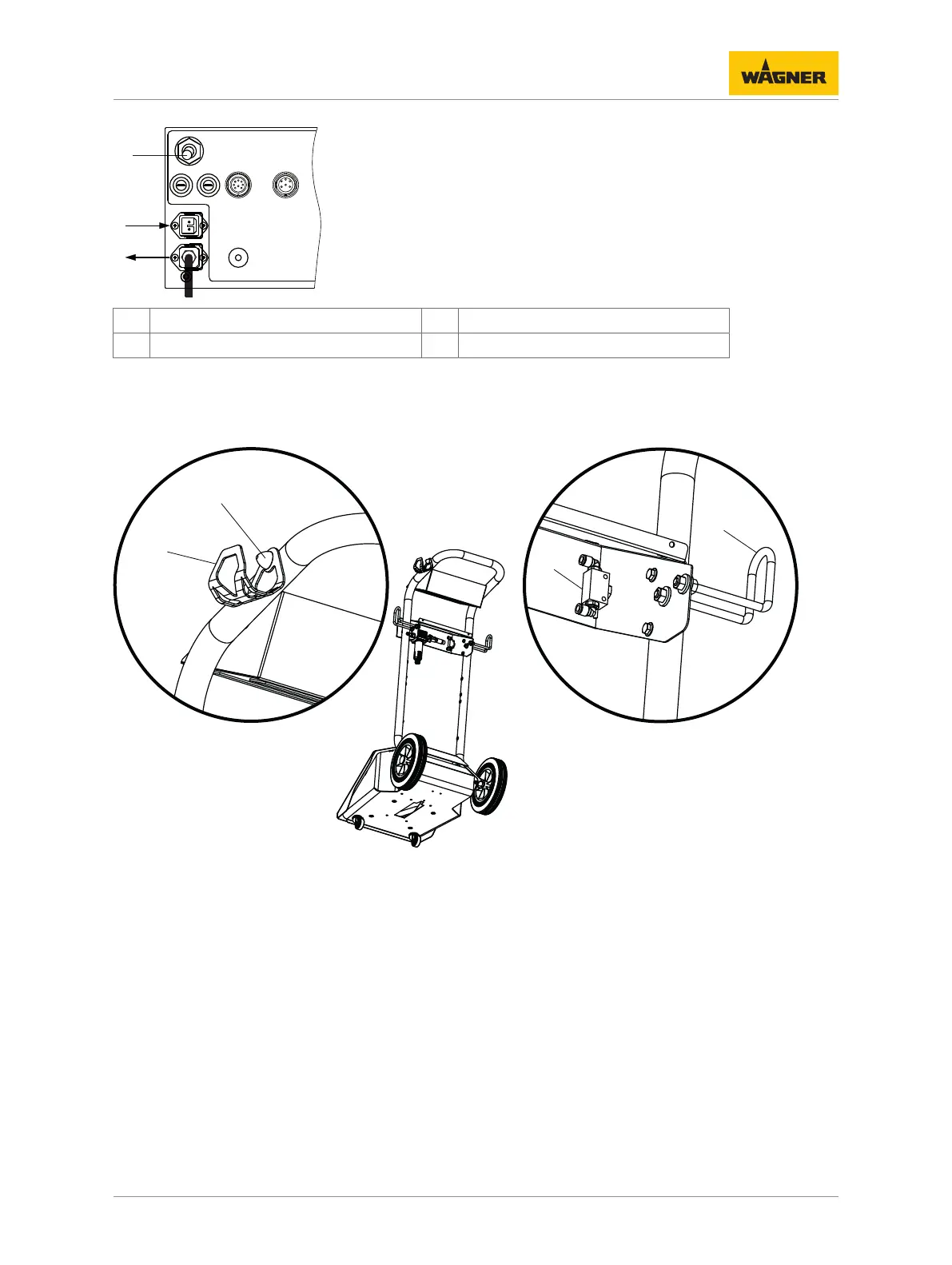

6.4.2.2 Connecting the Sprint 2 B manual system
P_06017
A
7
9
B
A
B
8
10
1. Screw on gun holder (7) with threaded rubber buffer (8) (Detail A).
2. Fasten the hose holder (9) to the left and right of the mobile base with four M8 nuts
each (Detail B).
3. Insert the throttle valve (10) for the fluid air and tighten the nut (Detail B).
