Operating manual Manual system SPRINT 2
6 Assembly and commissioning
Order number 2467031 | Edition 04/2024 25
P_06018
A
14
12
13
11
A
11

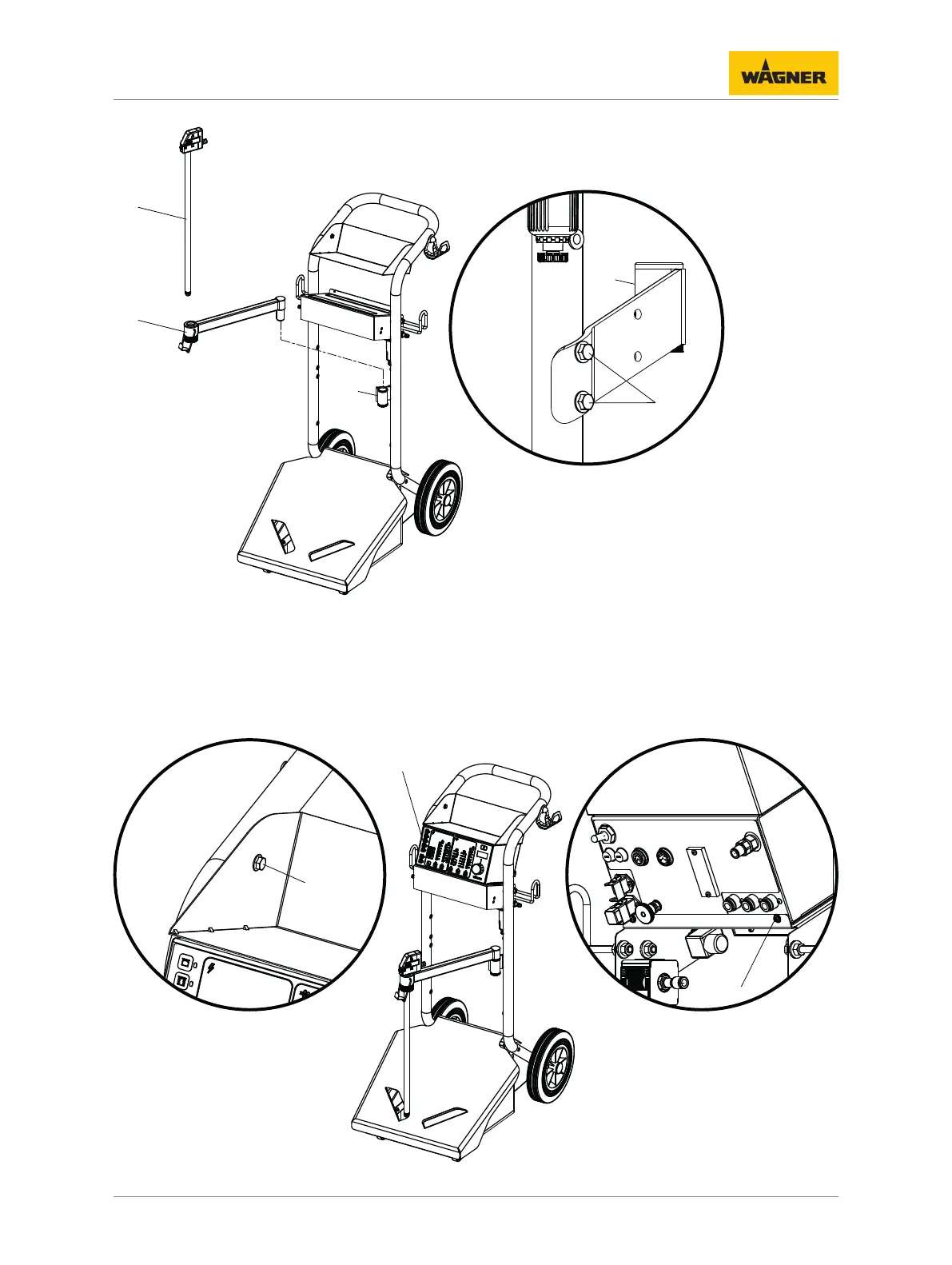

4. Fit the bracket (11) for the swivel arm to the mobile base using two hexagon screws (12)
(Detail A).
5. Insert swivel arm (13) into the holder (11).
6. Insert suction lance (14) into the guide bush on the swivel arm (13).
BA
B
A
15
17
16
P_06019
