Operating manual Manual system SPRINT 2
6 Assembly and commissioning
26 Order number 2467031 | Edition 04/2024
7. Slide the control unit (15) into the mobile base from the front and screw it onto the
holder using the fastening screws (16) (Detail B).
8. Tighten the hexagon screws (17) of the storage tray (Detail A).

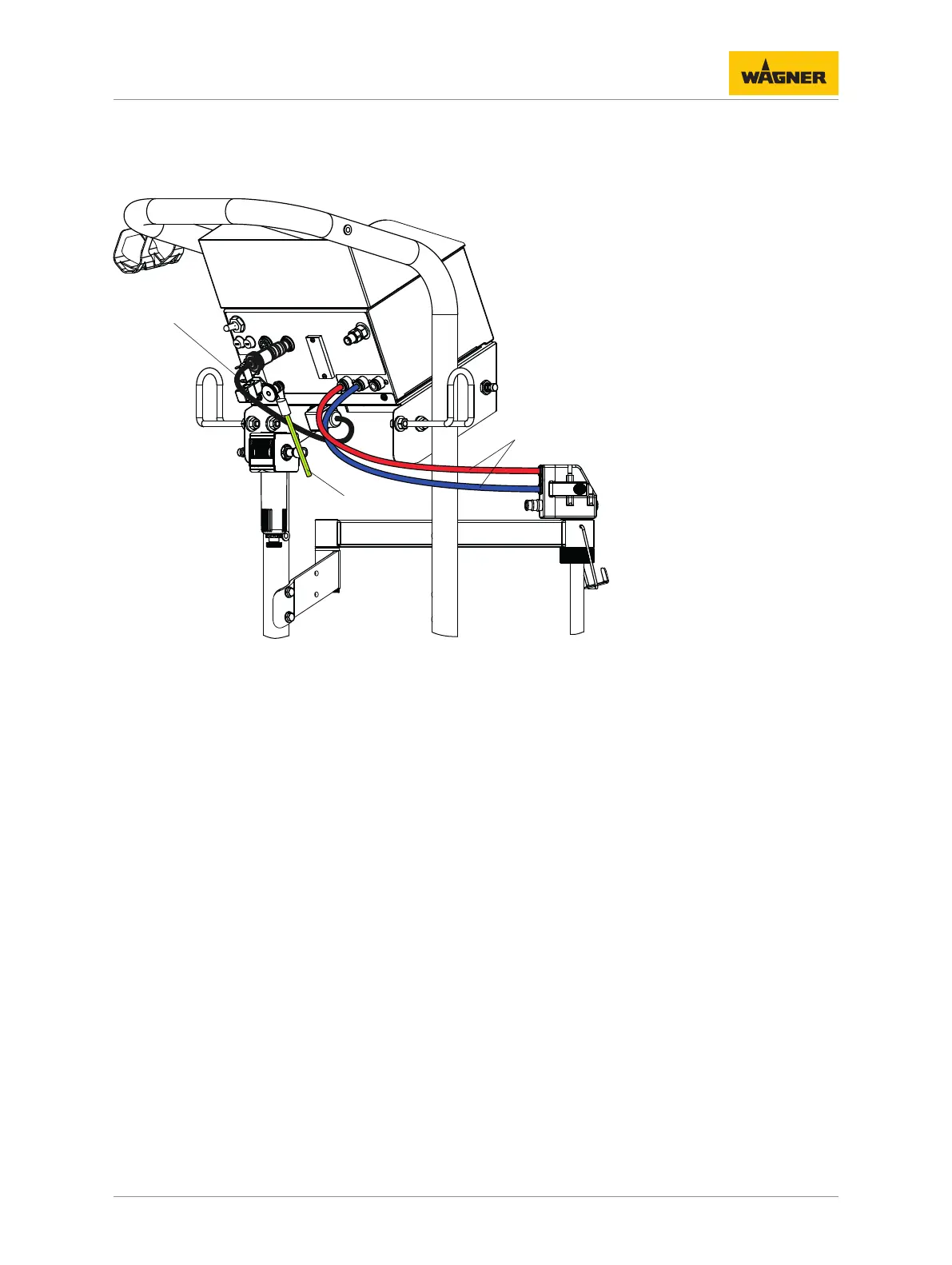

9. Connect the mobile base's grounding cable (18) to the grounding connection of the
control unit.
Connect the control unit's grounding cable with the signal ground.
10. Connect the control cable (19) from the solenoid valve on the control unit.
11. Connect the feed air hose and dosing air hose (20) from the injector to the control unit
according to the color coding.
