Operating manual Manual system SPRINT 2
6 Assembly and commissioning
Order number 2467031 | Edition 04/2024 27
21
P_06021

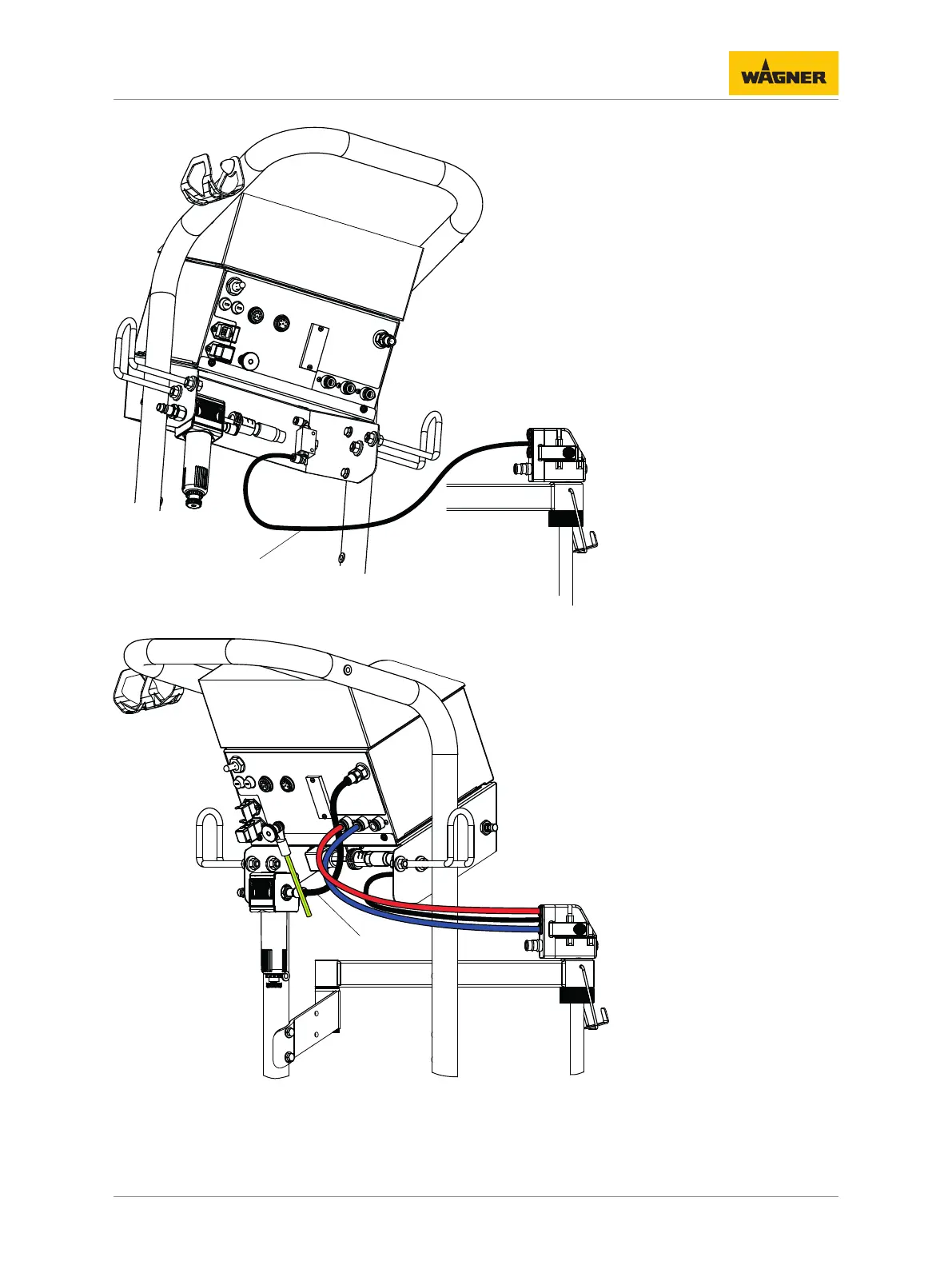

12. Guide fluid air hose (21) from the injector to the throttle valve and connect it.
22
P_06022
13. Guide the compressed air line (22) from the filter separator to the control unit and
connect it.
