2011980_d•en•2015-12-01
We reserve the right to make technical changes
20
WAREMA climatronic® WebControl
5 Operation of
channels, groups,
scenes
5.1 Operating channels
and groups
NOTE The channels, groups or scenes used are read from the WAREMA climatron-
ic and have the same designations as they do on the control panel.
On the WAREMA climatronic WebControl, you can also create rooms and
assign descriptive names to them (for example, Kitchen, Living Room, Chil-
dren's Room 1 or 2), which makes assigning channels, groups and scenes a
clear and easy process.
To use this functionality, open your browser. If you are using a PC operating
system, type "http://webcontrol-c" in your browser's address bar. If you are
using iOS/OSX, enter "webcontrol-c.local". (See also Chapter 4.2 on page
13).

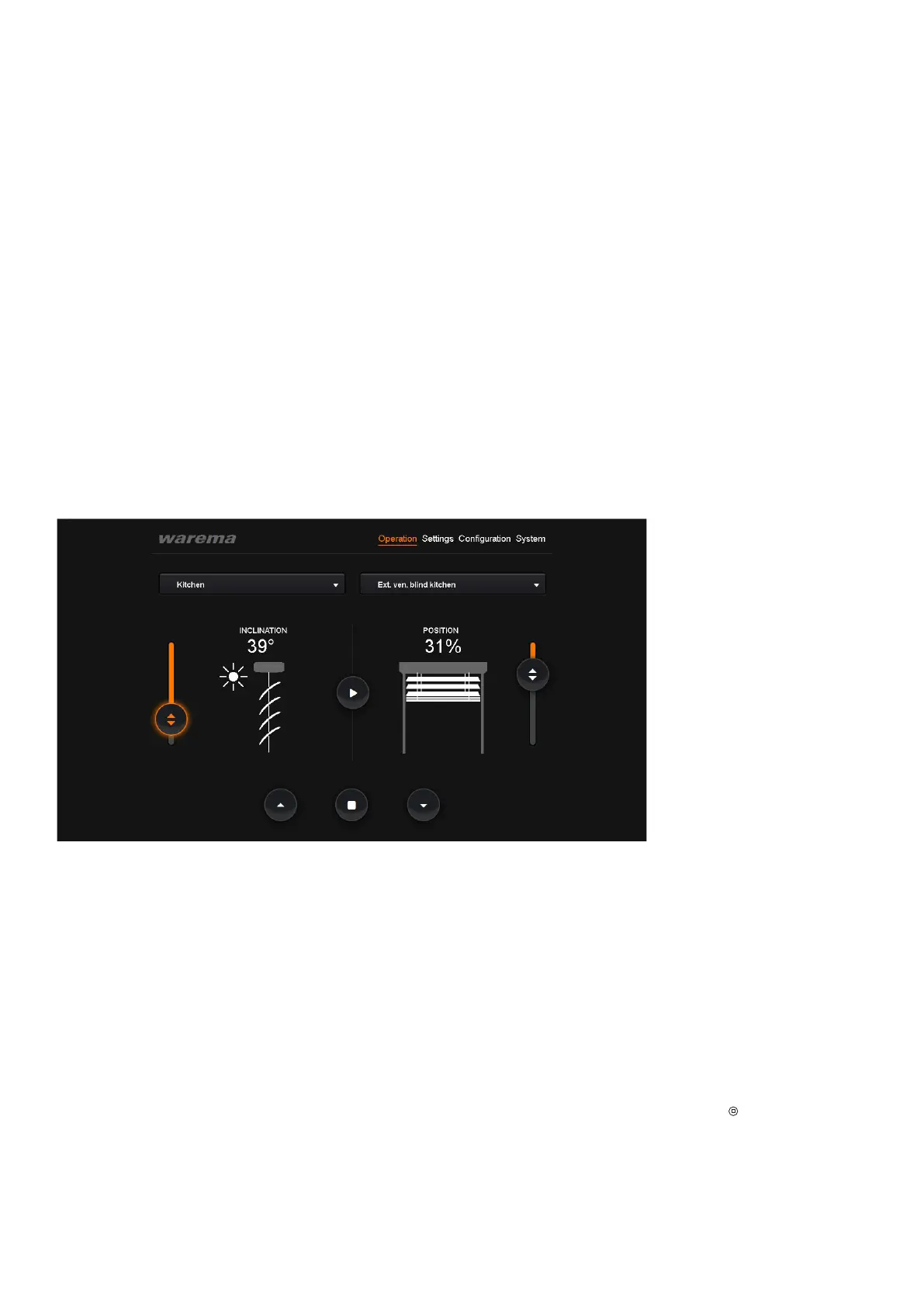

Fig. 18 Menu for operating the channels
Then switch to the "Operation" menu.
Choose a room (left column) and channel (right column) by highlighting the
desired selections.
In this case, an example for a possible position of your channel (here, for
instance, Kitchen, External venetian blind kitchen) is shown shaded in grey in
the right column.
To change the position of the unit (roller shutter, external venetian blind, ...),
for example by lowering it, drag the slider to the desired setpoint position
while keeping the mouse button pressed.
The desired position you set is displayed as a percentage in white. This per-
centage shows you the new setpoint position.
Press the "" symbol for "play" and start the process. The "
" stop button
allows you to stop the product's movement at any time, even before the prod-
uct reaches the defined position.
The spinning wheel indicates that the selected channel is moving, and that
the move command is being sent to the WAREMA climatronic (the product's
movement time is not visible in the display).
Operation
