Weber mt MC 85 - Checking; Adjusting the Fan V-Belt

50
1
3
2
4

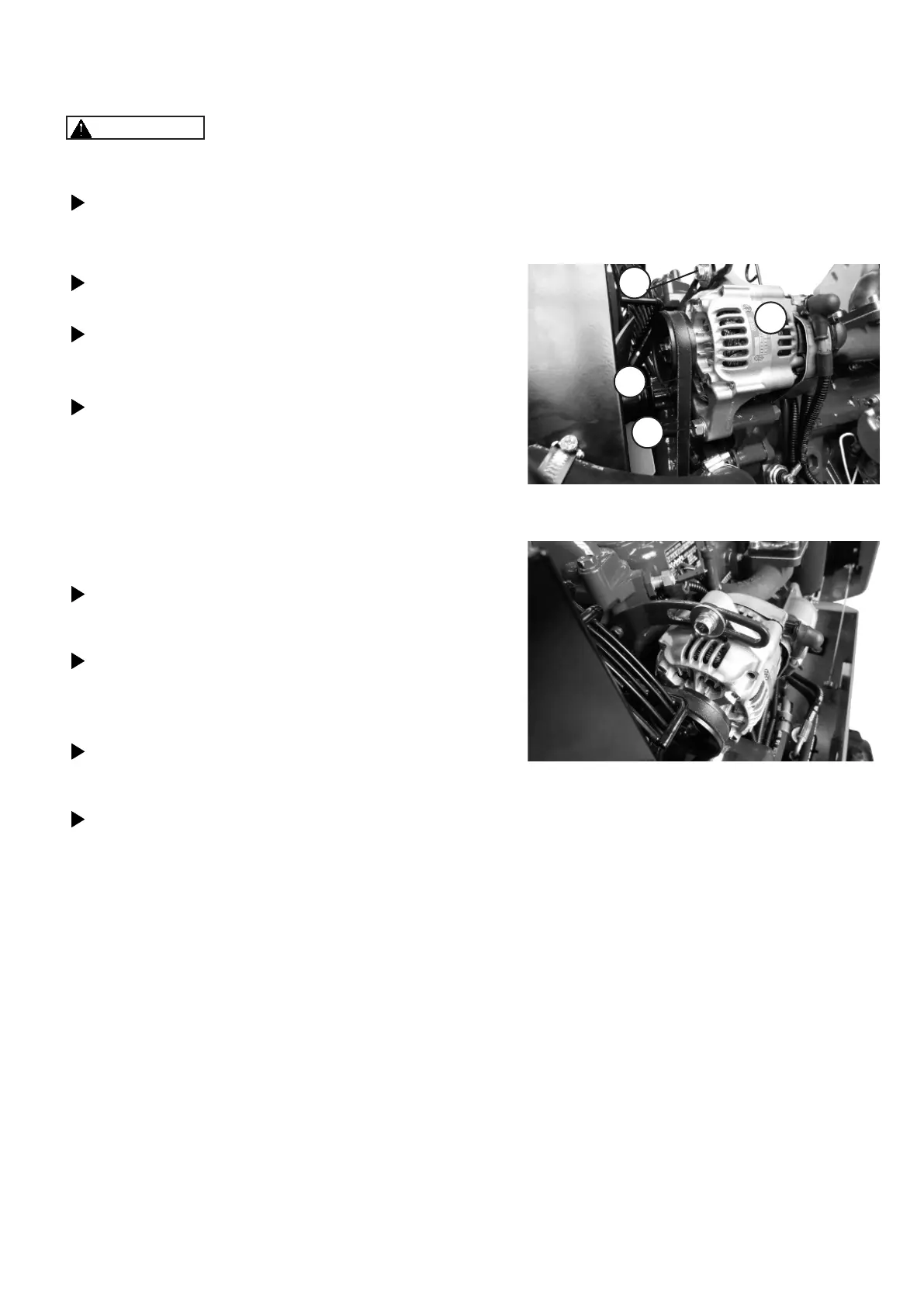

10.2.12. Checking / adjusting the fan V-belt
Shuto󰀨themachineasdescribedinsection5.8.
Open the hoods as described in section 10.2.1.
Check the tension of the fan V-belt (1).
The tension is correct if the belt can be
depressed by approx. 1 cm with a force of
approx. 100 N.
Danger of burn injuries at hot engine and its attachments.
Proceed as follows if the belt tension is too high
or too low:
Loosen the set screw (2) and the fastening
screw (3).
Tilt the alternator (4) until the required tension
has been reached.
Tighten the fastening screw (3) and the
set screw (2) of the alternator (4).
Check the tension of the fan V-belt again.
Repeat the process if necessary.
Allow the combustion engine to cool down
su󰀩cientlybeforestartingwork.
CAUTION
