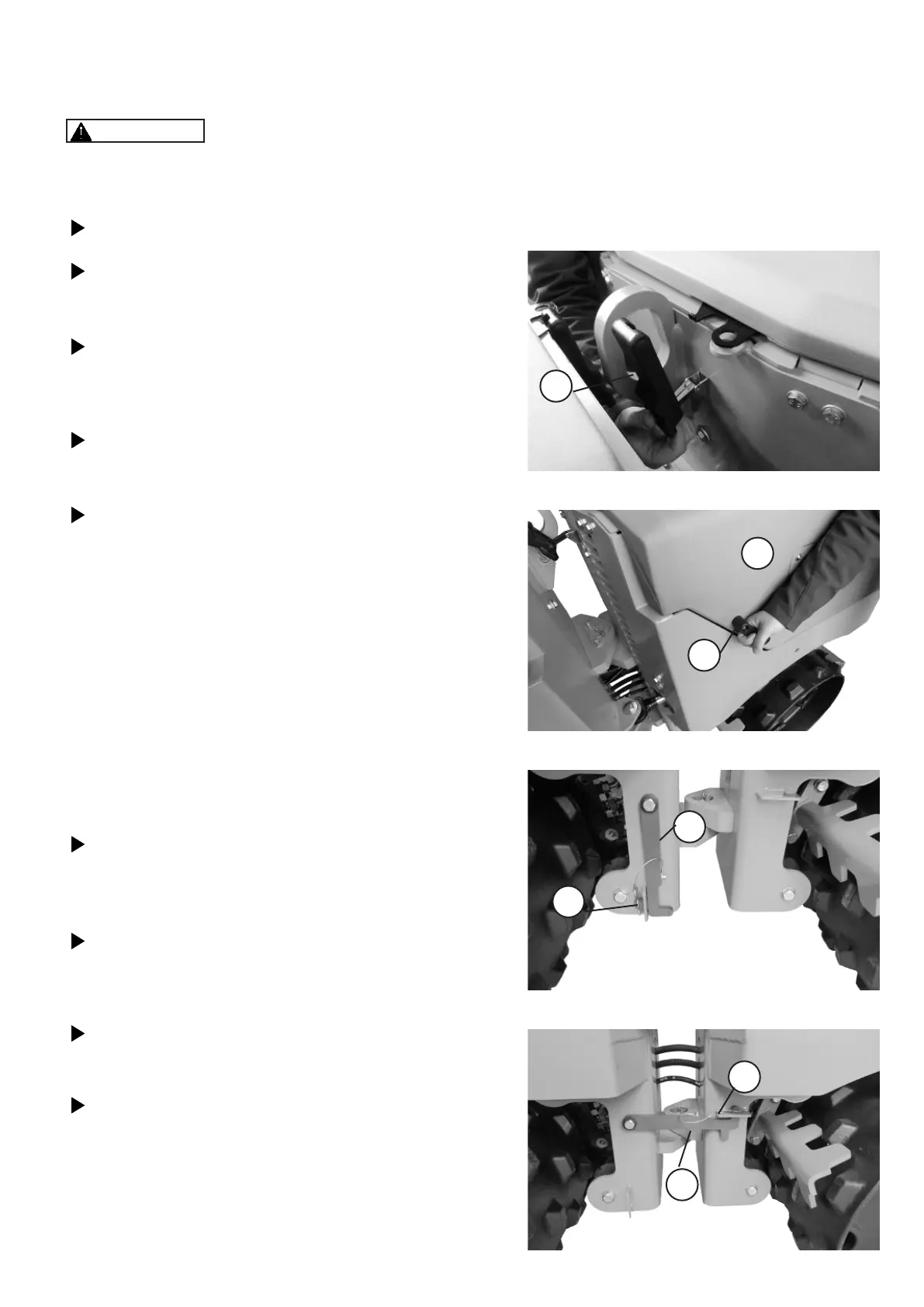

10.2. Description of the maintenance operations
10.2.1. Opening / closing the hood
Release the lock (1) to open the engine
hood (2) with the help of the handle (3).
Close the hood in reverse order.
10.2.2. Securing the articulated joint
Pull the safety cotter pin (1) out of the locking
bracket (2).
Pivot the locking bracket (2) counterclock-
wise into the designated opening.
Secure the locking bracket using the safety
cotter pin (1).
Proceed in reverse order to release
the articulated joint.
Shuto󰀨themachineasdescribed
in section 5.8.
Danger of burn injuries at hot engine and its attachments.
Especially the exhaust is very hot after operation.
Allow the combustion engine to cool down
su󰀩cientlybeforestartingwork.
Do not reach into the area of the hot engine.
CAUTION
